FixVault
Home
›
Honda
›
2003
›
Element DX, 2.4 YH2, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel And Emissions Systems
›
System Description
›
Vacuum Distribution
Vacuum Distribution

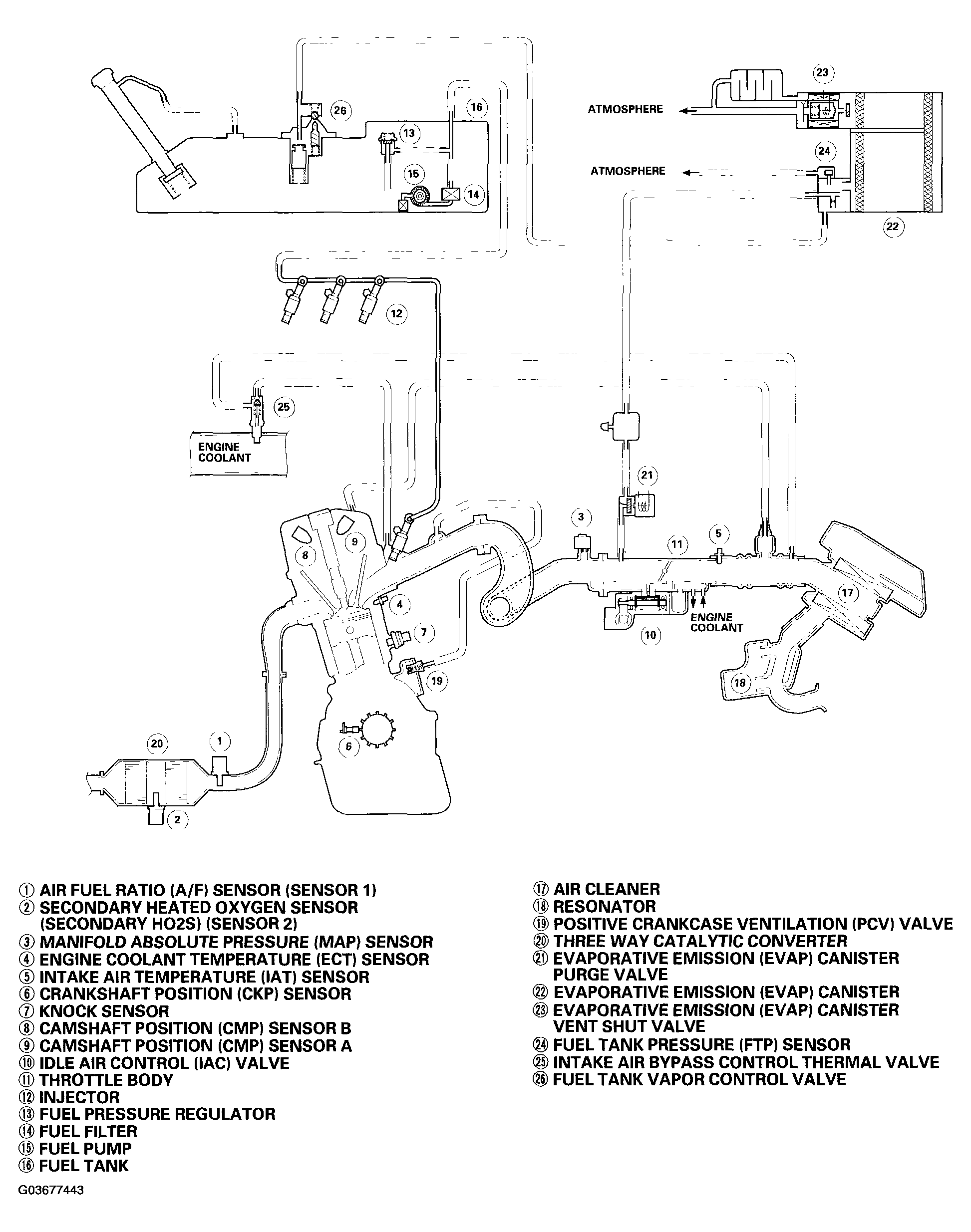

Fig 1: Identifying Vacuum Distribution
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
