Circuit Diagram

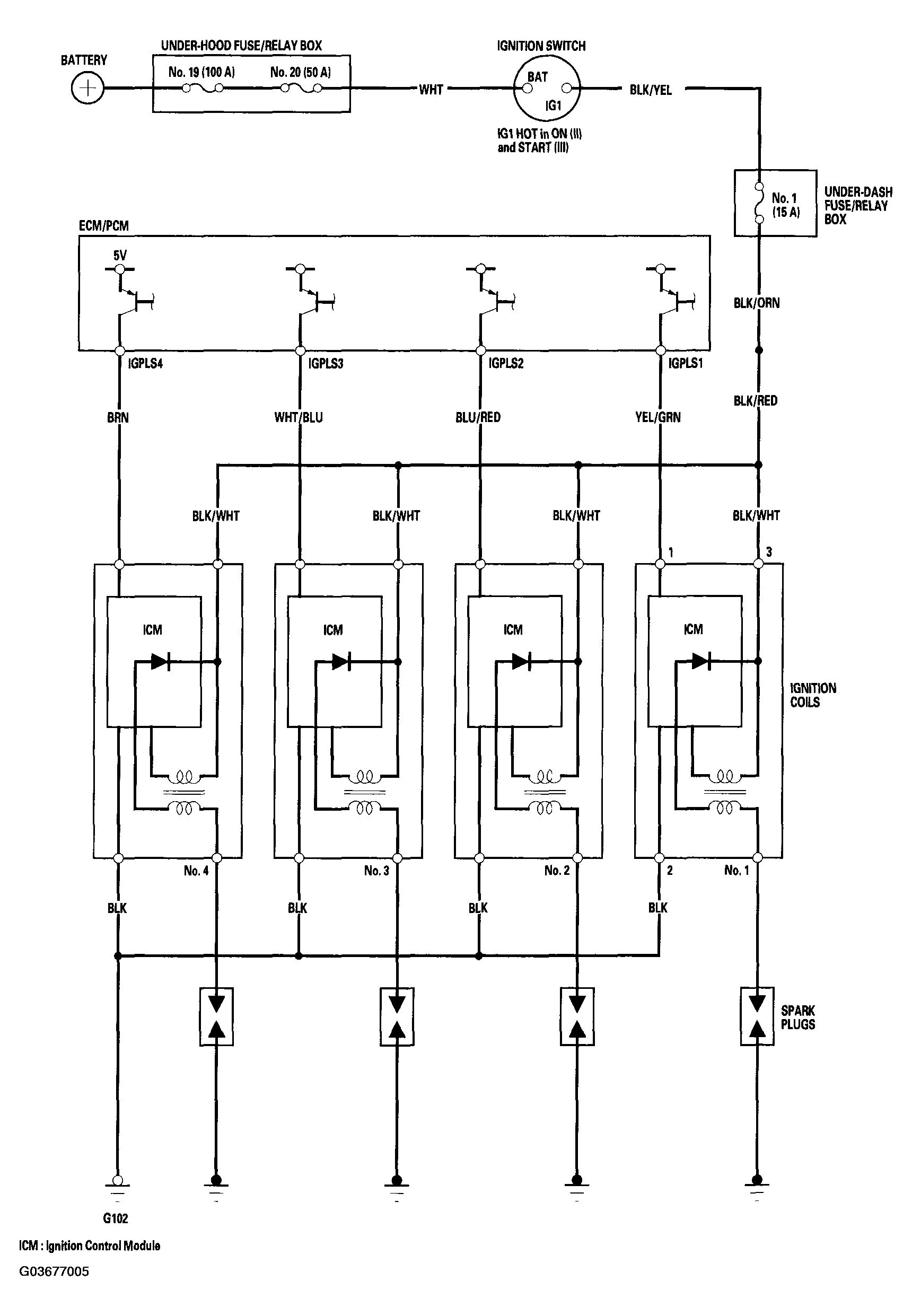

Fig 1: Circuit Diagram Ignition System
G03677005Courtesy of AMERICAN HONDA MOTOR CO., INC.
