Air Cleaner Removal/Installation

  1. Remove the bolts (A) and the clamp (B).

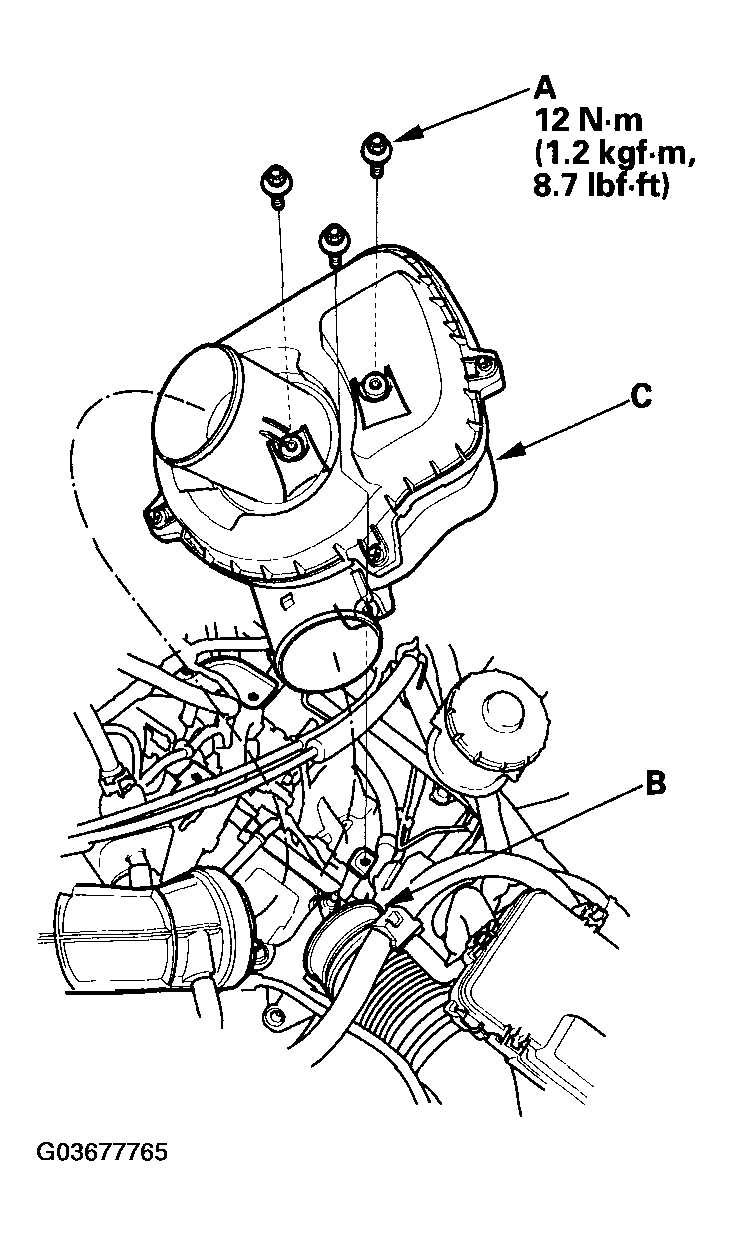

    Fig 1: Removing Bolts And Clamp And Torque Specifications
    G03677765Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (C).
  3. Install the parts in the reverse order of removal.
