M/T model

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the output shaft (countershaft) speed sensor connector (A).

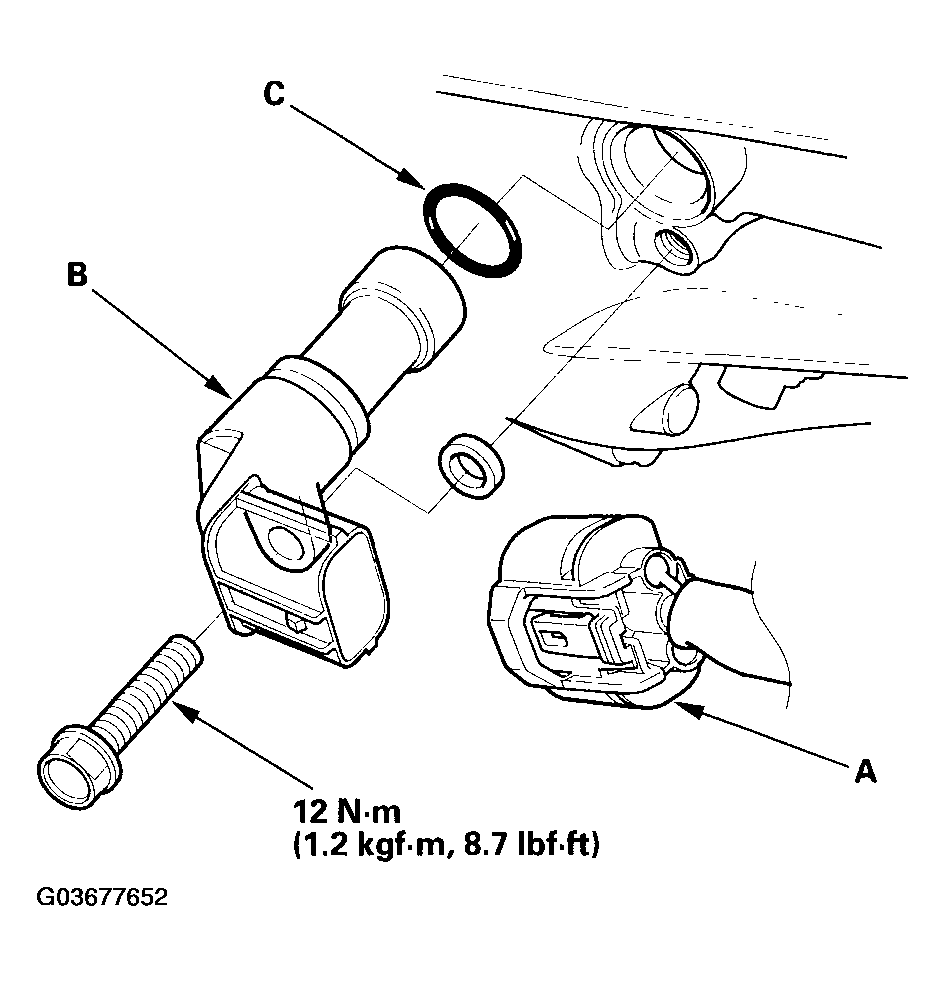

    Fig 1: Disconnecting Output Shaft (Countershaft) Speed Sensor Connector Torque Specifications
    G03677652Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the output shaft (countershaft) speed sensor (B).
  4. Install the sensor in the reverse order of removal with a new O-ring (C).
