Rear Window Wiper Intermittent Control Unit Connector End View
Rear Window Wiper Intermittent Control Unit Connector End View

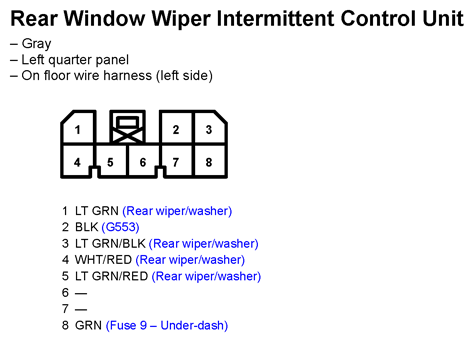

Fig 1: Rear Window Wiper Intermittent Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
