Transmission Range Switch Replacement

Raise the vehicle, and make sure it is securely supported.
Shift to the N position.

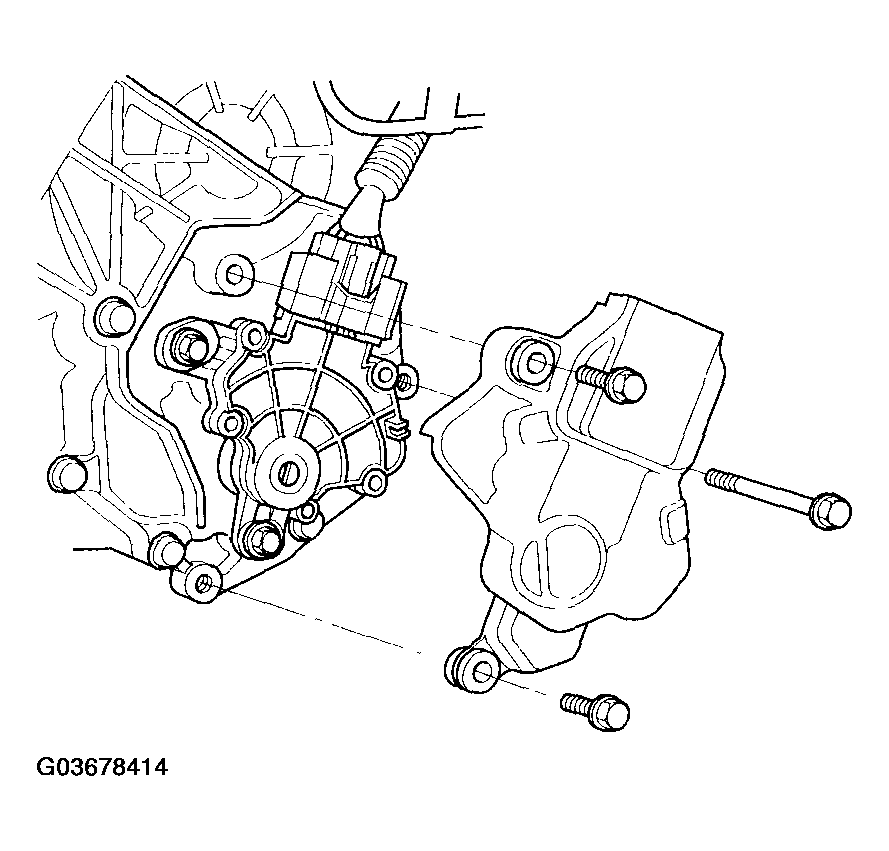

Remove the transmission range switch cover.

Fig 1: Removing Transmission Range Switch Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

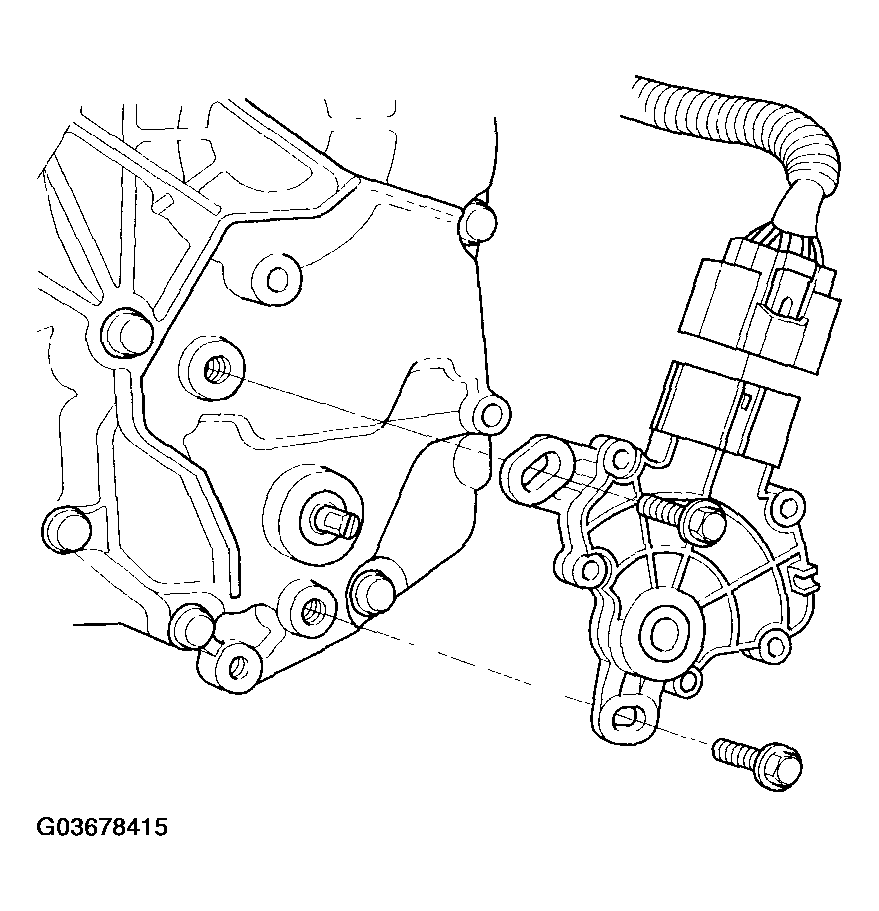

Disconnect the transmission range switch connector.

Fig 2: Disconnecting Transmission Range Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the old transmission range switch.

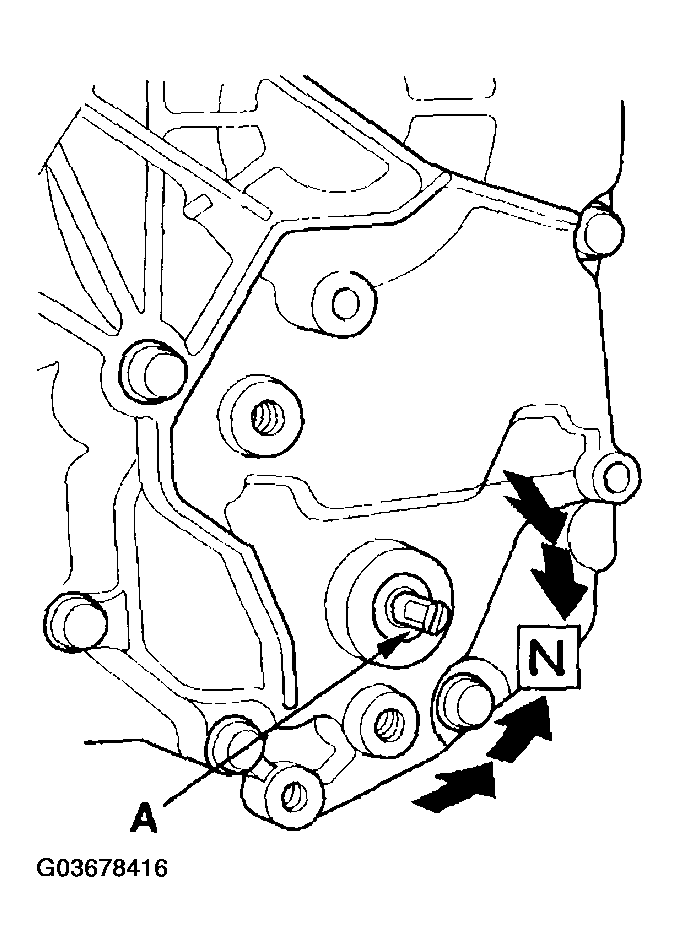

Make sure that the selector control shaft (A) is in the N position. If necessary, move the shift lever to the N position.

Fig 3: Identifying Selector Control Shaft N Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

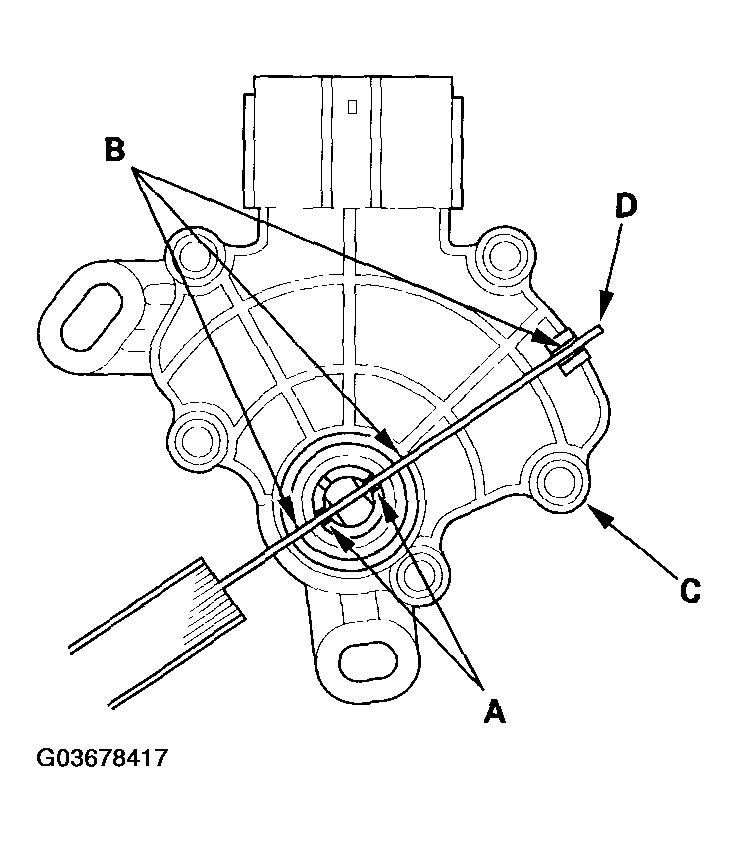

Align the cutout (A) on the rotary-frame with the neutral positioning cutouts (B) on the transmission range switch (C), then put a 2.0 mm (0.08 in.) feeler gauge blade (D) in the cutouts to hold it in the N position.
NOTE: Be sure to use a 2.0 mm (0.08 in.) blade or equivalent to hold the switch in the N position.

Fig 4: Putting Feeler Gauge Blade In Cutouts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

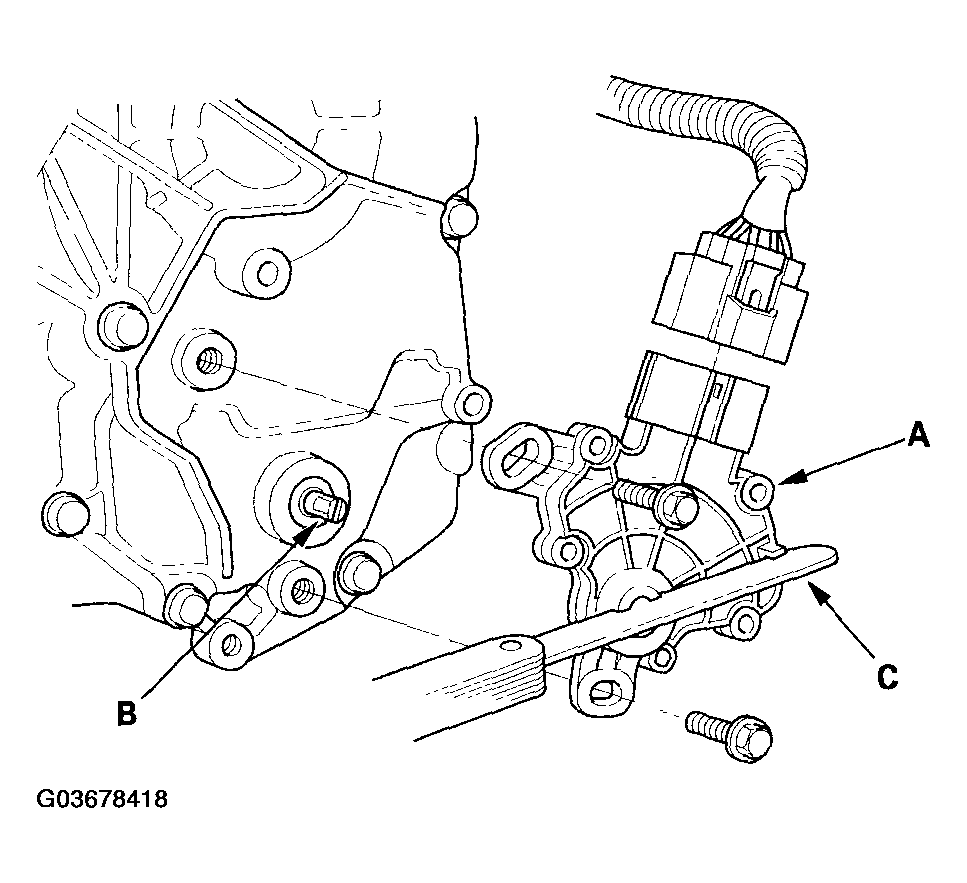

Install the transmission range switch (A) gently on the selector control shaft (B) while holding the N position with the 2.0 mm (0.08 in.) blade (C).

Fig 5: Installing Transmission Range Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

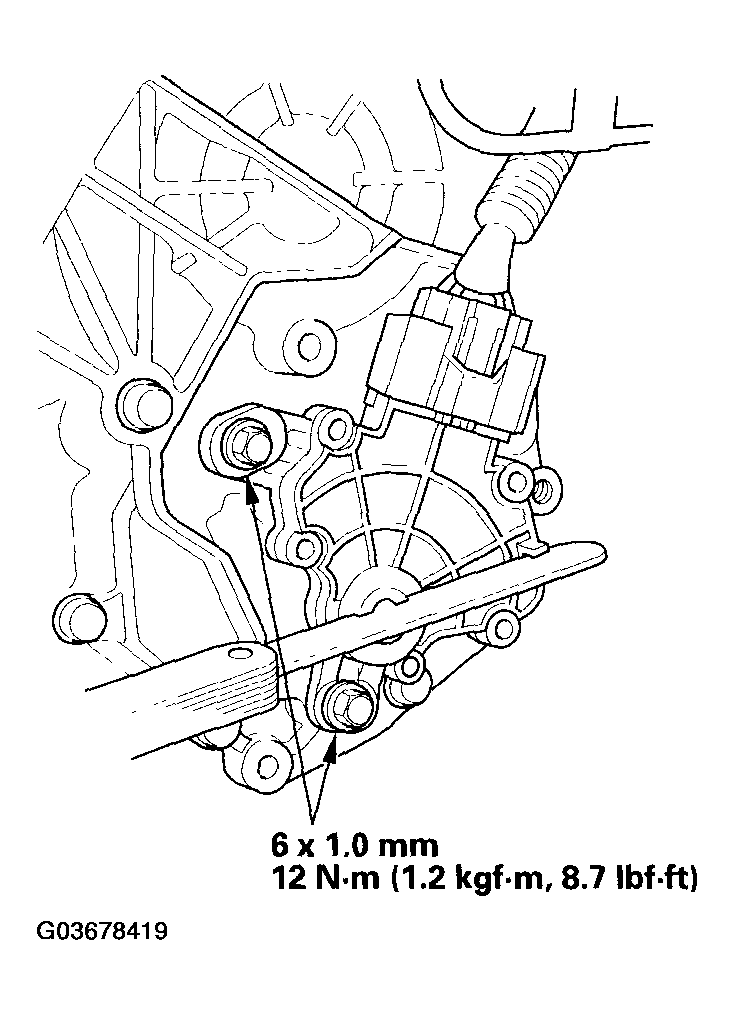

Tighten the bolts on the transmission range switch while you continue to hold the N position. Do not move the transmission range switch when tightening the bolts. Remove the feeler gauge.

Fig 6: Identifying Transmission Range Switch Bolts Tightening Torque
Courtesy of AMERICAN HONDA MOTOR CO., INC.

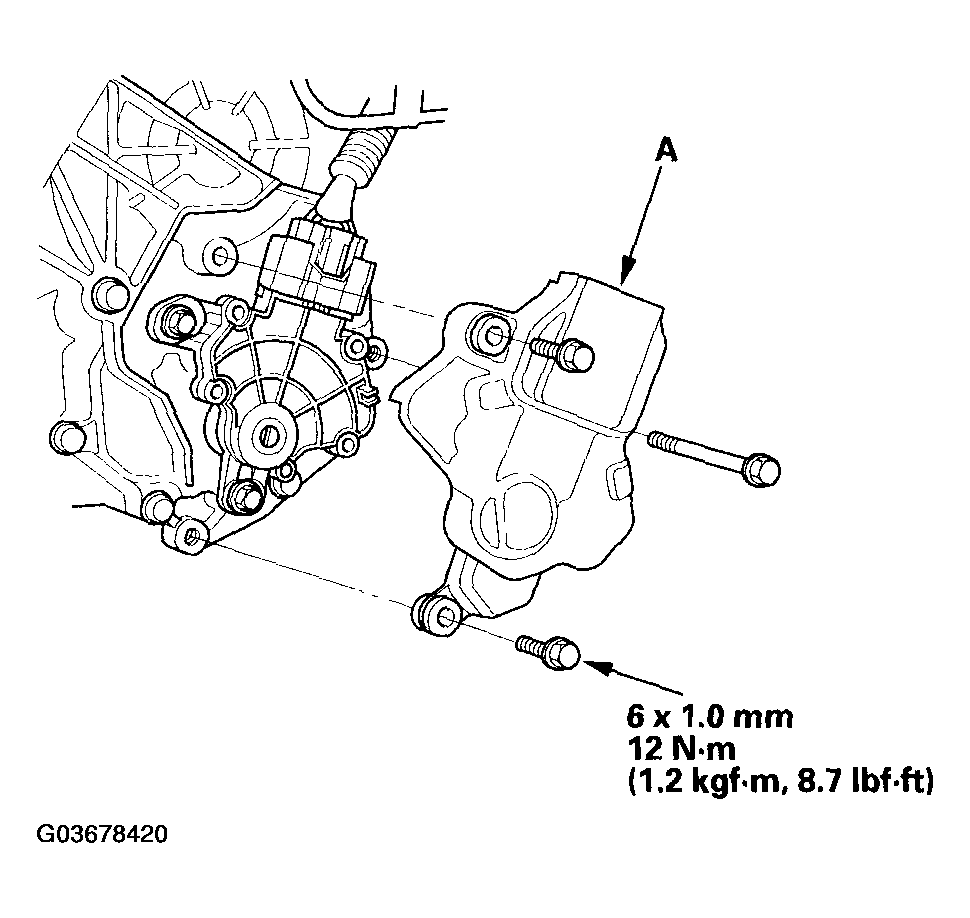

Connect the connector securely, then install the transmission range switch cover (A).

Fig 7: Installing Transmission Range Switch Cover And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch ON (II). Move the shift lever through all gear positions, and check the transmission range switch synchronization with the A/T gear position indicator.
Check that the engine can start in the P and N positions, and cannot start in any other shift lever position.
Check that the back-up lights come on when the shift lever is in the R position.
Allow the wheels to rotate freely, then start the engine, and check the shift lever operation.
