Input Shaft (Mainshaft) Speed Sensor Replacement

  1. Disconnect the input shaft (mainshaft) speed sensor connector.
  2. Remove the input shaft (mainshaft) speed sensor (A).

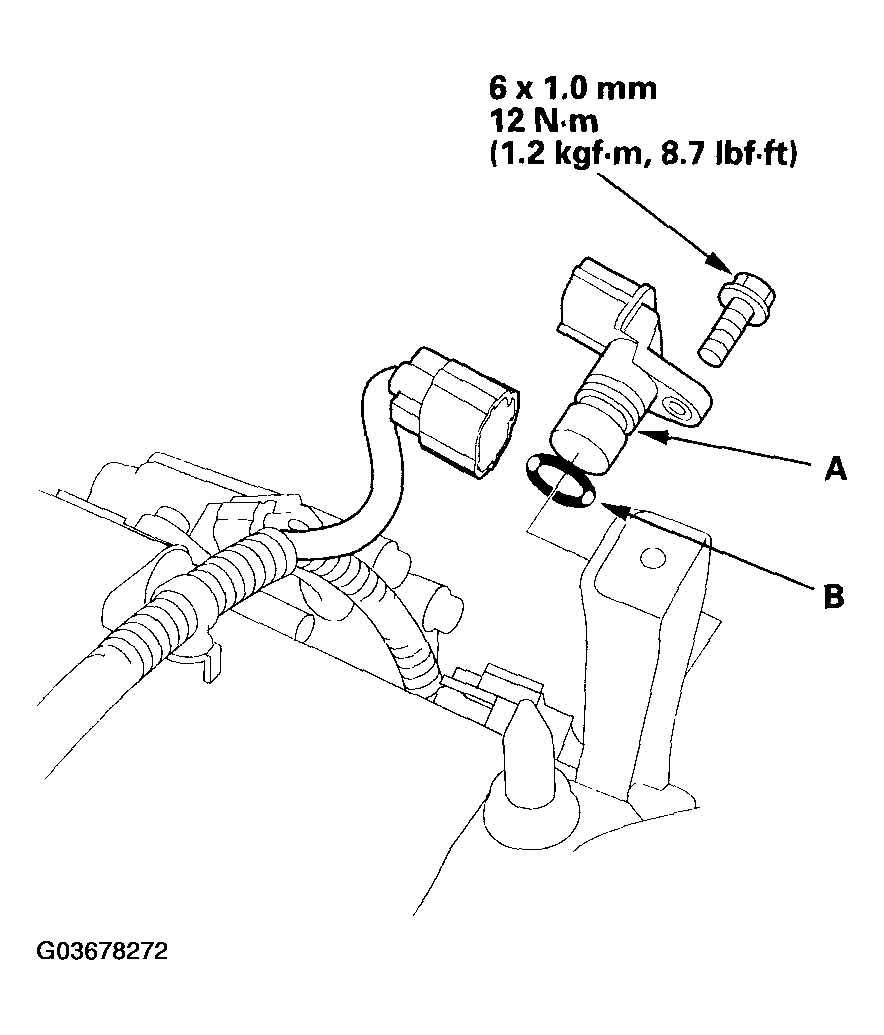

    Fig 1: Identifying Loosening Torque Of Input Shaft (Mainshaft) Speed Sensor Bolt
    G03678272Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the new O-ring (B) on the input shaft (mainshaft) speed sensor, and install the input shaft (mainshaft) speed sensor in the transmission housing.
  4. Check the connector for rust, dirt, and oil, clean if needed, then connect the connector securely.
