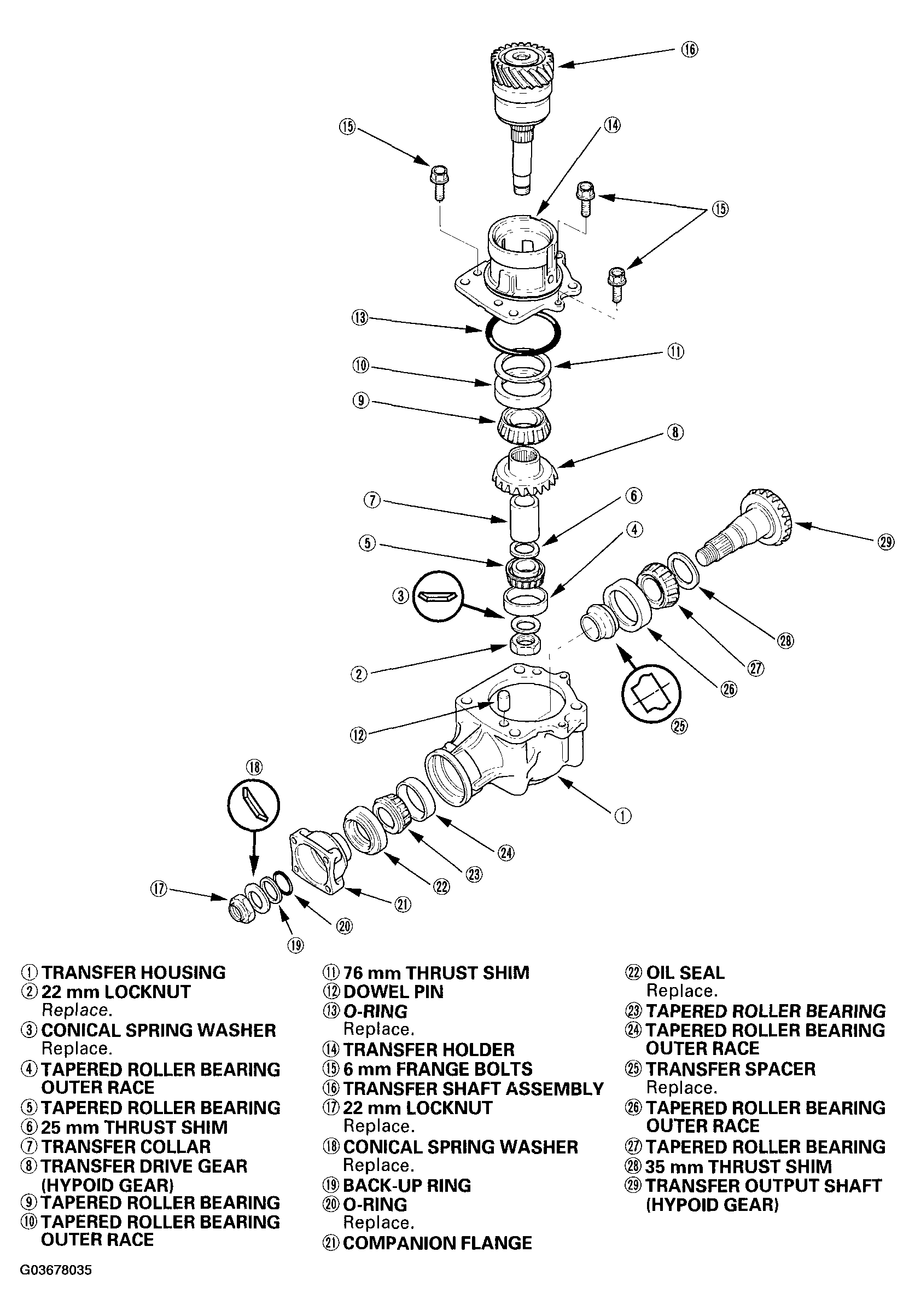

Exploded View

Fig 1: Exploded View Of Transfer Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Holder handle 07JAB-001020B
• Companion flange holder 07RAB-TB4010A or 07RAB-TB4010B

1. Remove the transfer holder assembly (A) from the transfer housing (B).

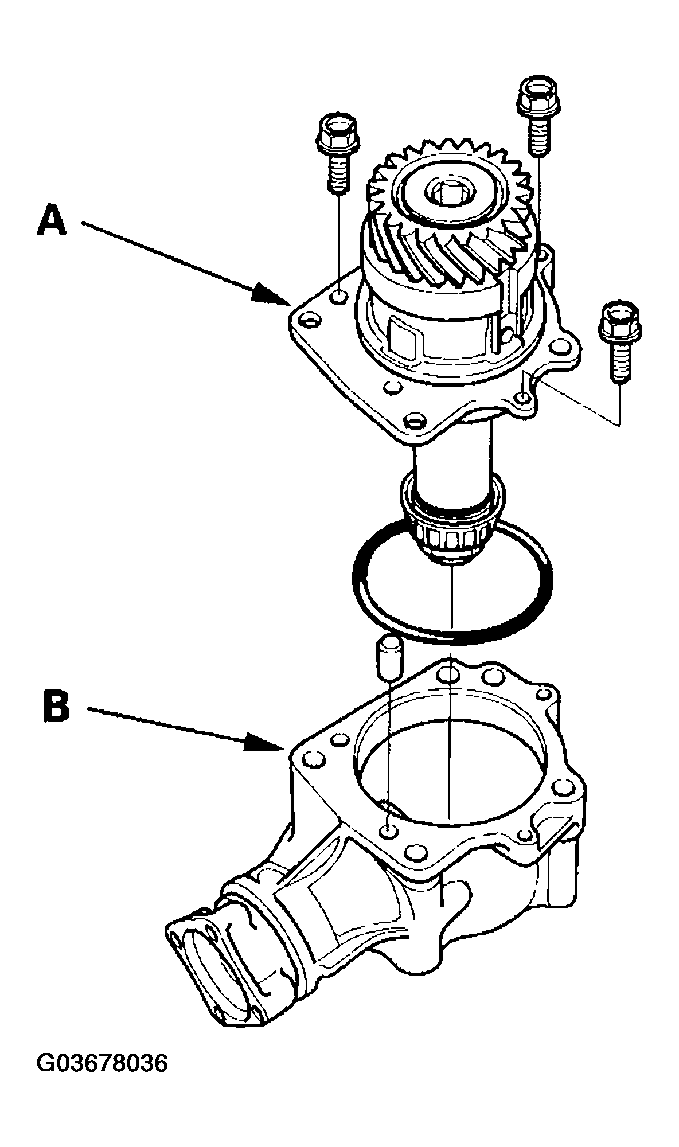

   Fig 2: Removing Transfer Holder Assembly From Transfer Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Cut the lock tabs of the locknut using a chisel. Keep all of the chiseled particles out of the transfer driven gear.

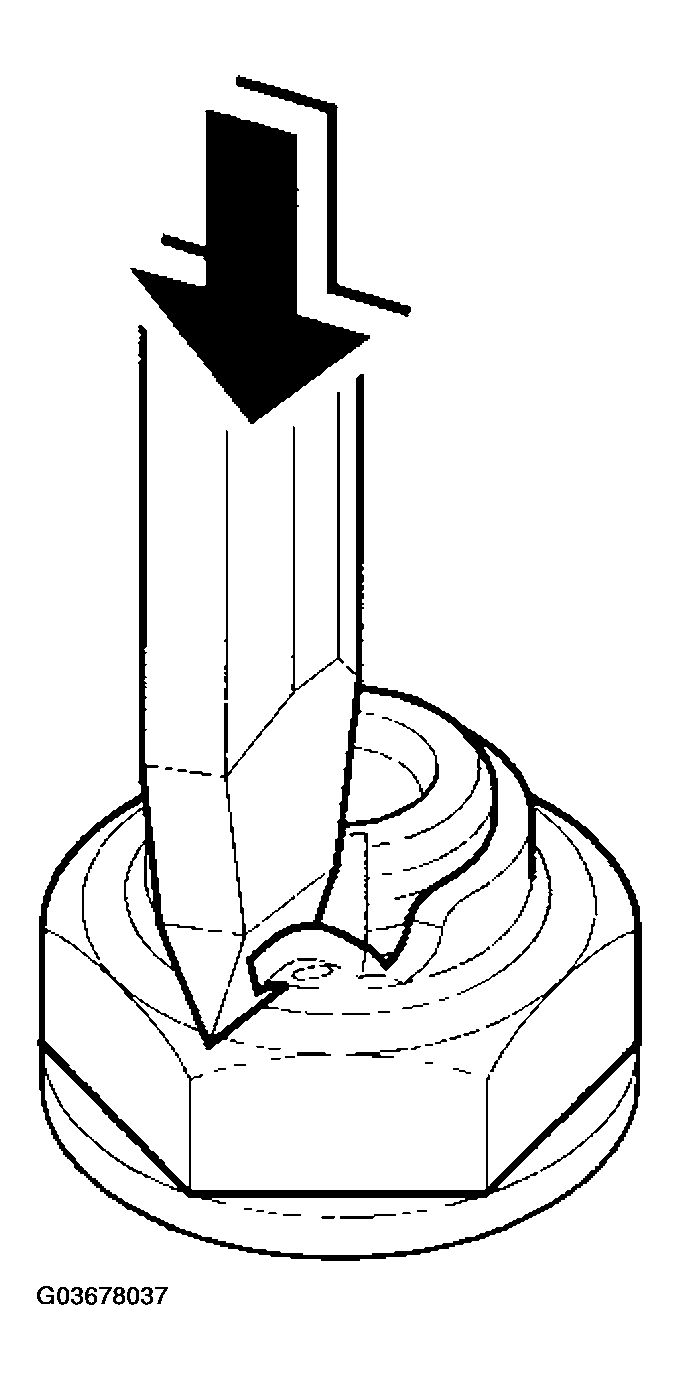

   Fig 3: Cutting Lock Tabs Of Locknut

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Secure the transfer housing (A) in a bench vise (B) with soft jaws.
   NOTE: To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

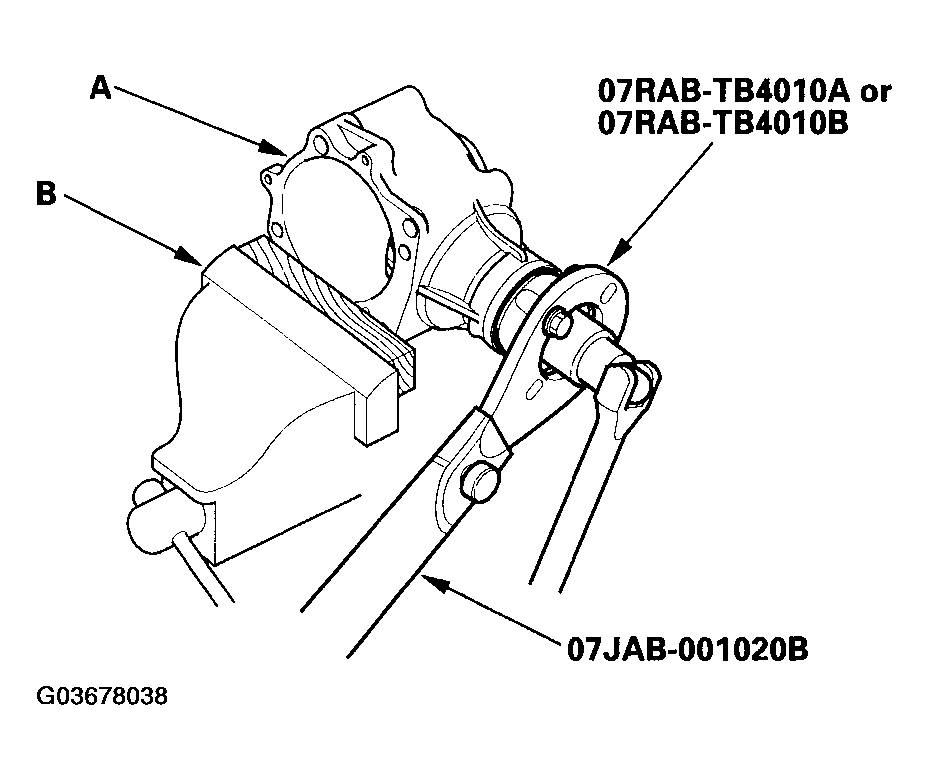

   Fig 4: Loosening Transfer Driven Gear Shaft Locknut

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the special tools on the companion flange, then loosen the transfer driven gear shaft locknut.
5. Remove the transfer driven gear locknut (A), conical spring washer (B), back-up ring (C), O-ring (D), and companion flange (E).

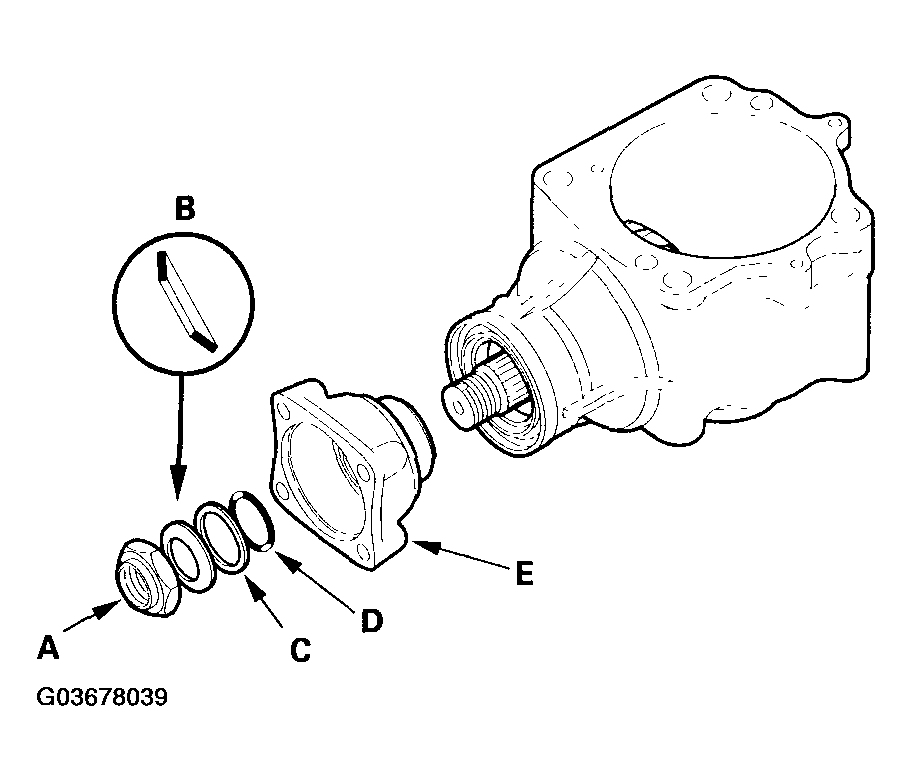

   Fig 5: Removing Transfer Driven Gear Locknut, Conical Spring Washer, Back-Up Ring, O-Ring, And Companion Flange

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the transfer driven gear (A), then remove the transfer spacer (B) from the transfer driven gear.
   Fig 6: Removing Transfer Driven Gear, Transfer Spacer From Transfer Driven Gear

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing (C).
   Fig 7: Removing Oil Seal And Tapered Roller Bearing From Transfer Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
