Cruise Control Actuator/Cable Replacement

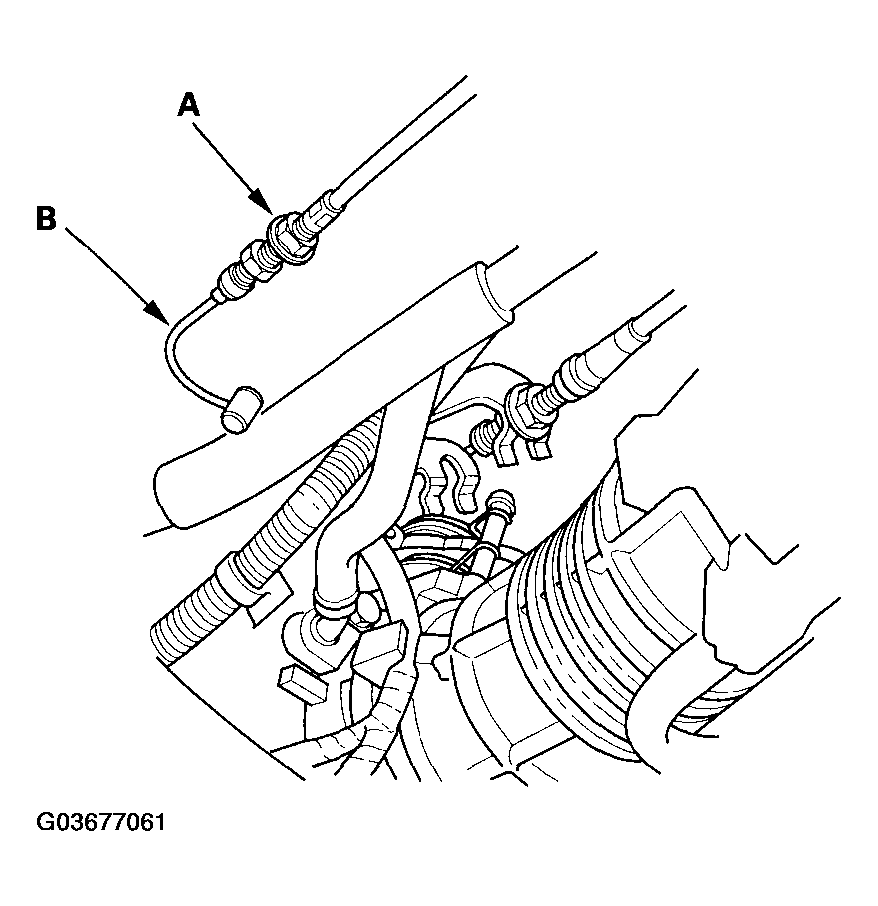

Loosen the locknut (A), then remove the actuator cable (B) from the throttle linkage.

Fig 1: Loosening Locknut And Remove Actuator Scale From Throttle Linkage
Courtesy of AMERICAN HONDA MOTOR CO., INC.

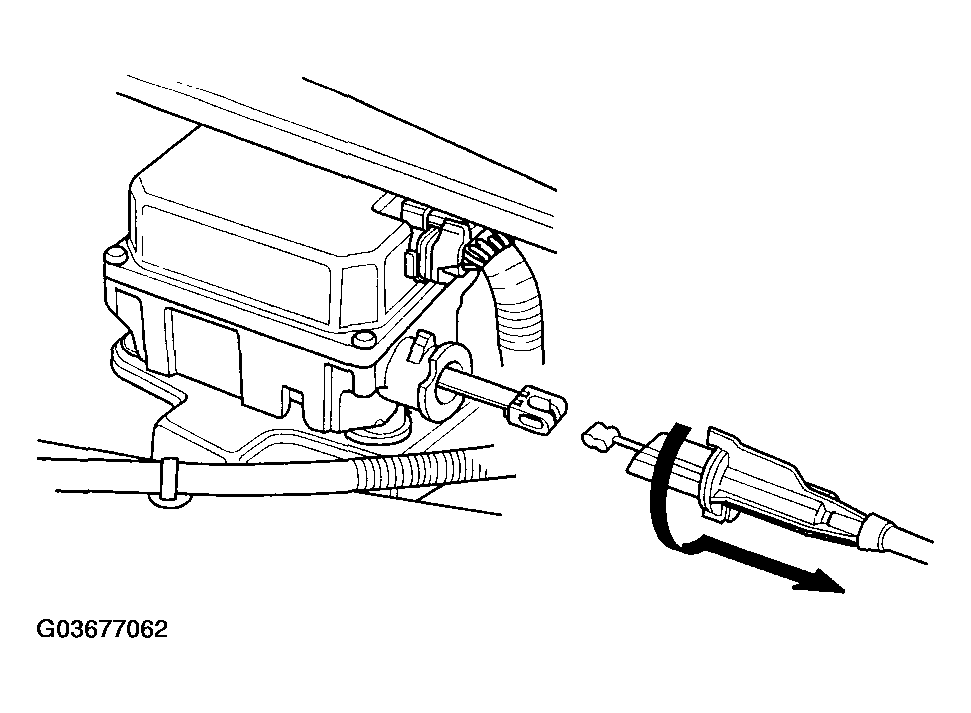

Turn the connector to disconnect it from the actuator, then remove the cable from the actuator.

Fig 2: Removing Cable From Actuator And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

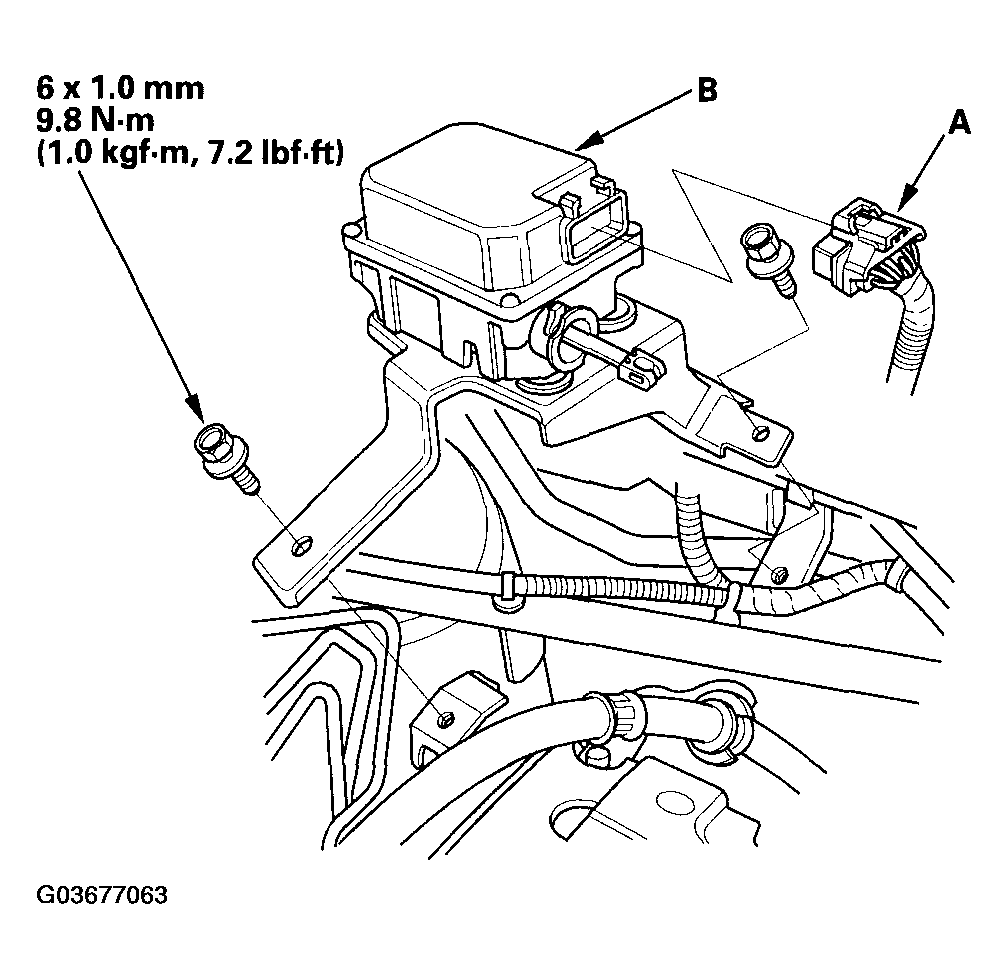

Disconnect the 12P connector (A) from the cruise control actuator (B).

Fig 3: Disconnecting 12P Connector From Cruise Control Actuator And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two mounting bolts from the mounting bracket.
Remove the three mounting bolts attaching the cruise control actuator to the mounting bracket.
Install in the reverse order of removal, and adjust the free play (see CRUISE CONTROL ACTUATOR CABLE ADJUSTMENT ) at the throttle linkage after connecting the actuator cable.
