ABS Modulator-control Unit Inputs and Outputs for 47P Connector

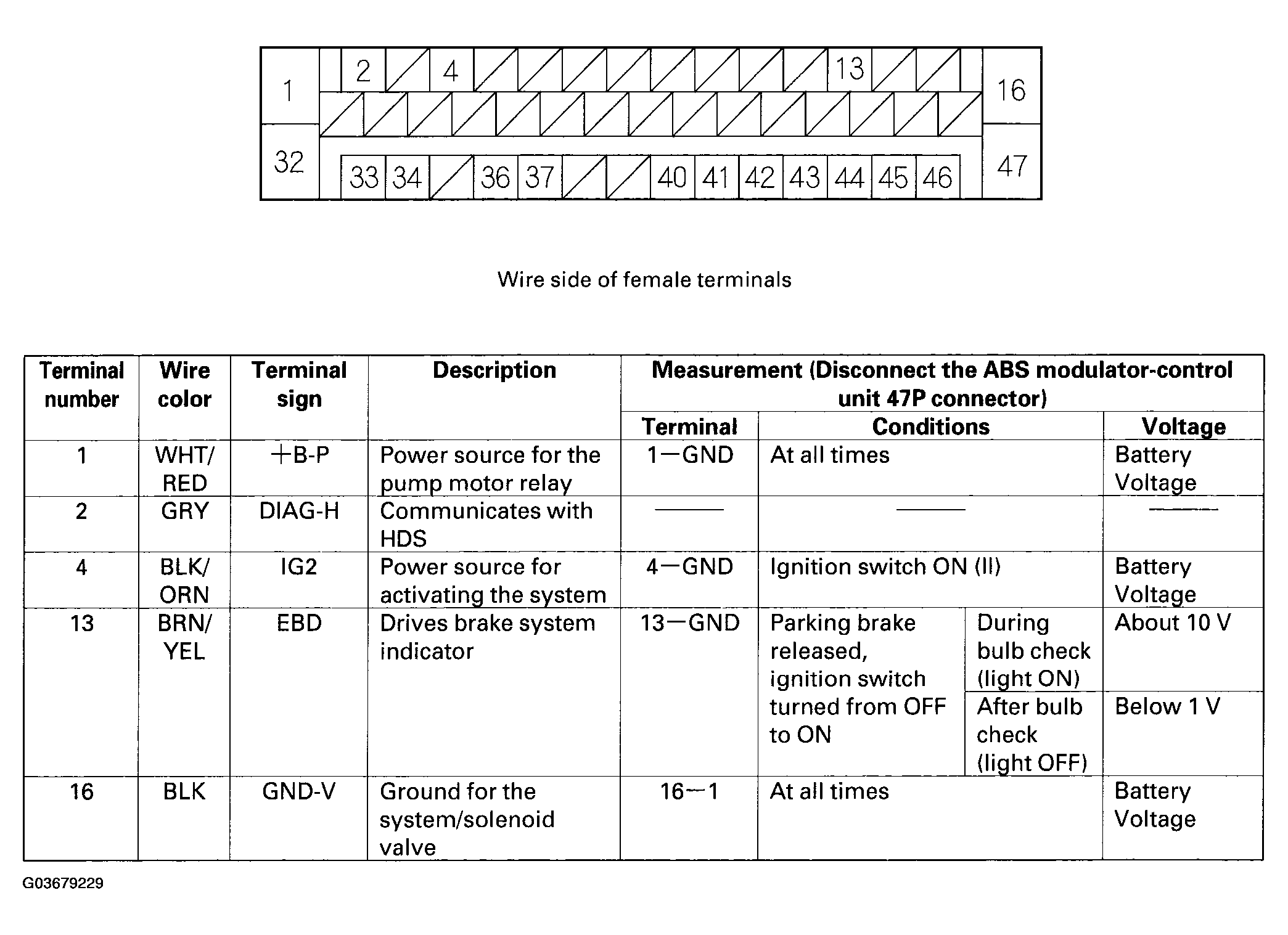

Fig 1: Identifying ABS Modulator-Control Unit Inputs And Outputs For 47P Connector (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

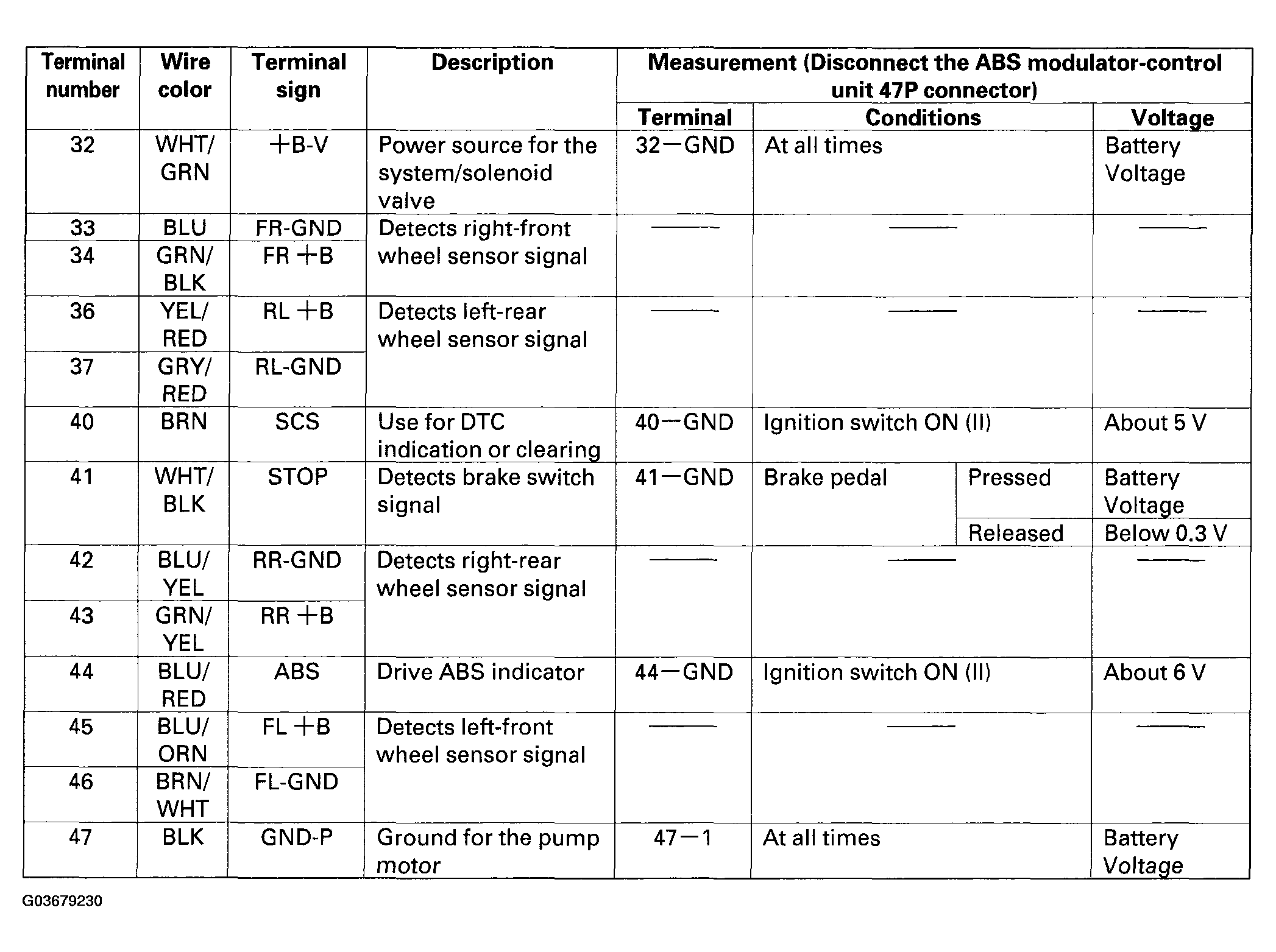

Fig 2: Identifying ABS Modulator-Control Unit Inputs And Outputs For 47P Connector (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
