Engine Lubrication System
›
Component Location Index
Component Location Index

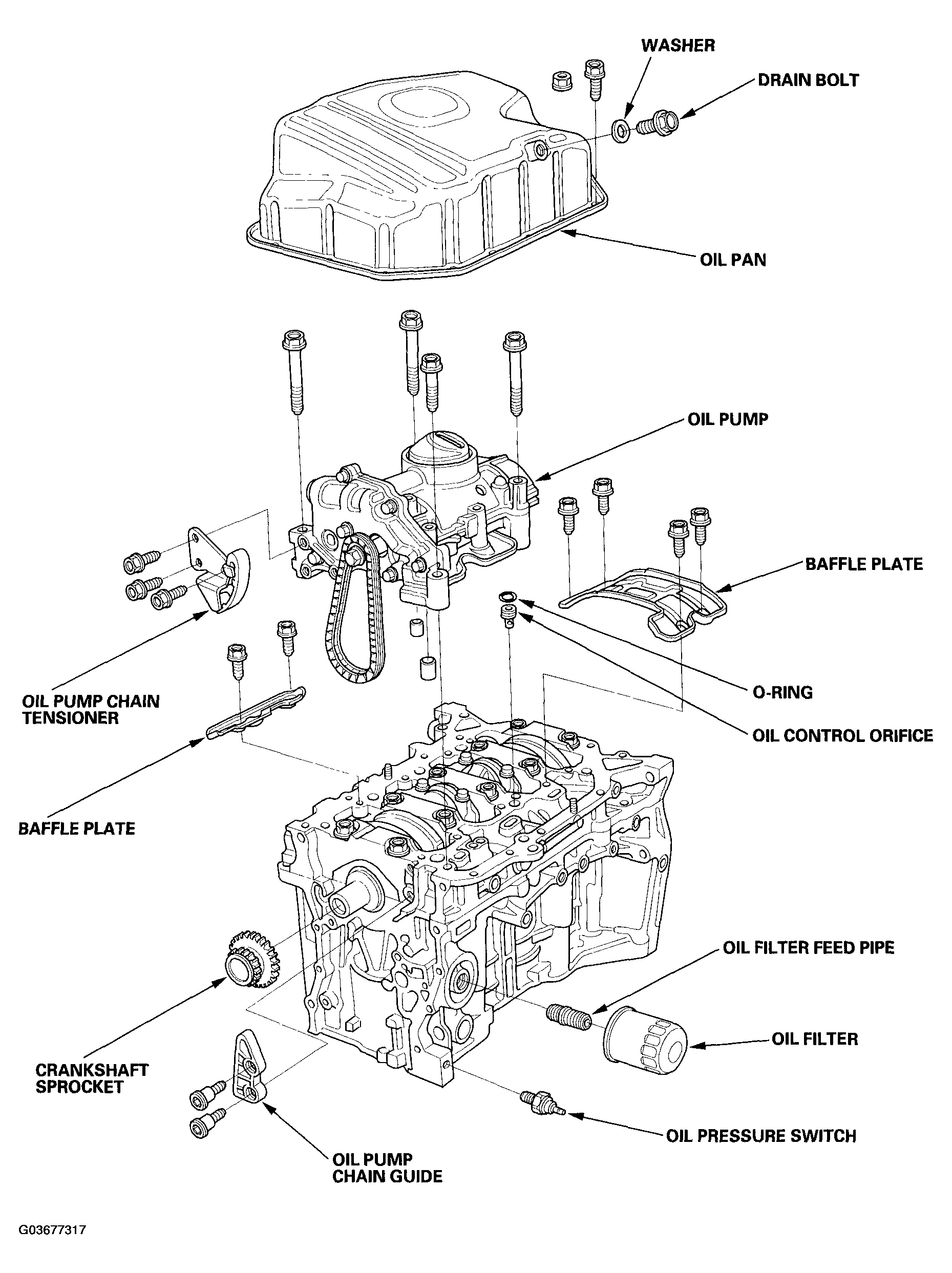

Fig 1: Identifying Engine Lubrication System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
