Resonator Removal/Installation

Remove the ground cable (A) and the bolts (B).

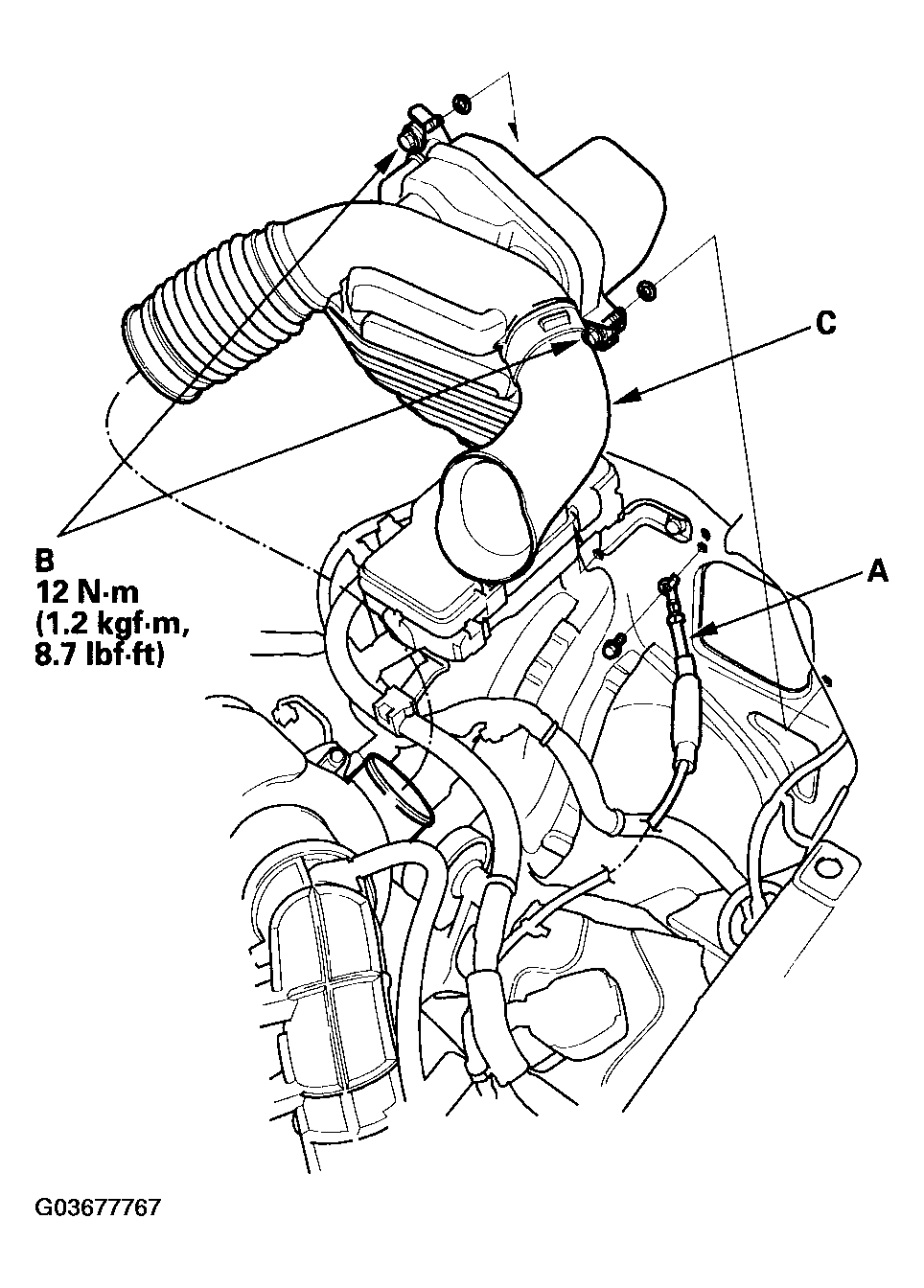

Fig 1: Removing Ground Cable And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the resonator (C).
Install the parts in the reverse order of removal.
