Intake Air Bypass Control Thermal Valve Replacement

  1. Remove the intake manifold cover (see step 3 on REMOVAL ).
  2. Disconnect the hoses (A).

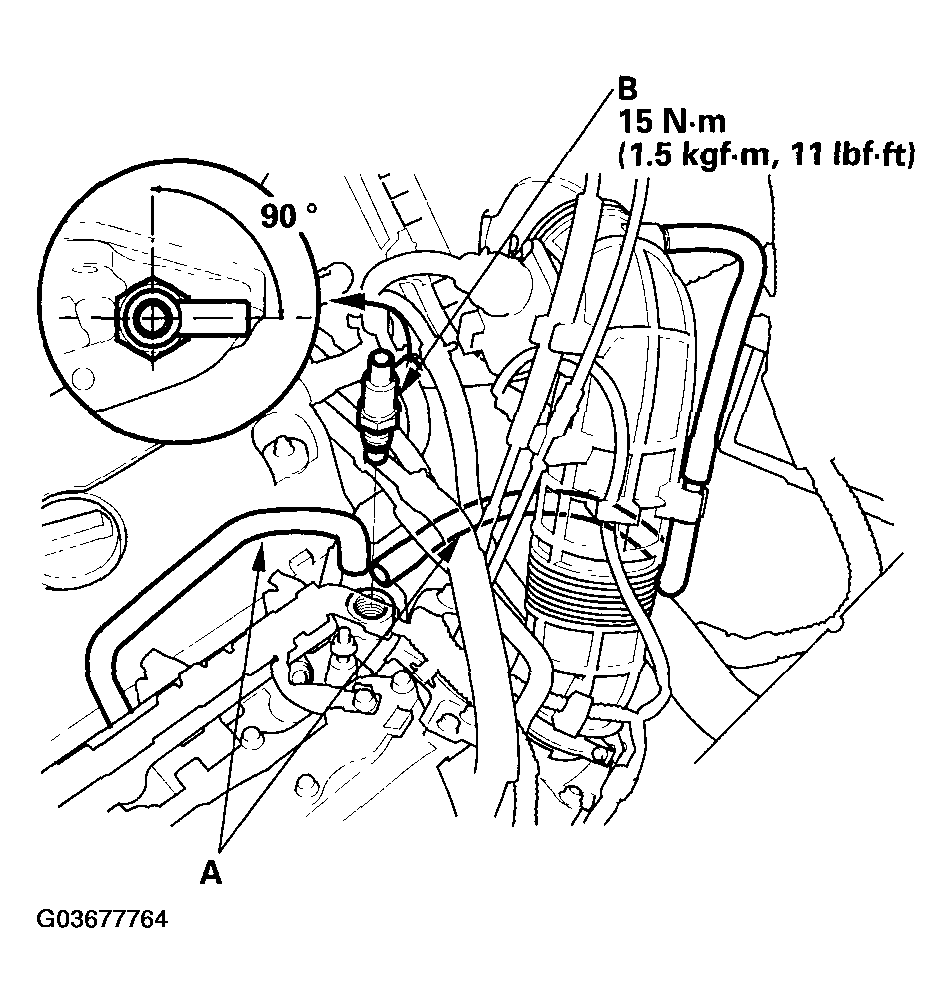

    Fig 1: Removing Intake Air Bypass Control Thermal Valve And Torque Specifications
    G03677764Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the intake air bypass control thermal valve (B).
  4. Install the valve in the reverse order of removal.
    NOTE: Position the valve angle as shown.
