Circuit Diagram
Circuit Diagram

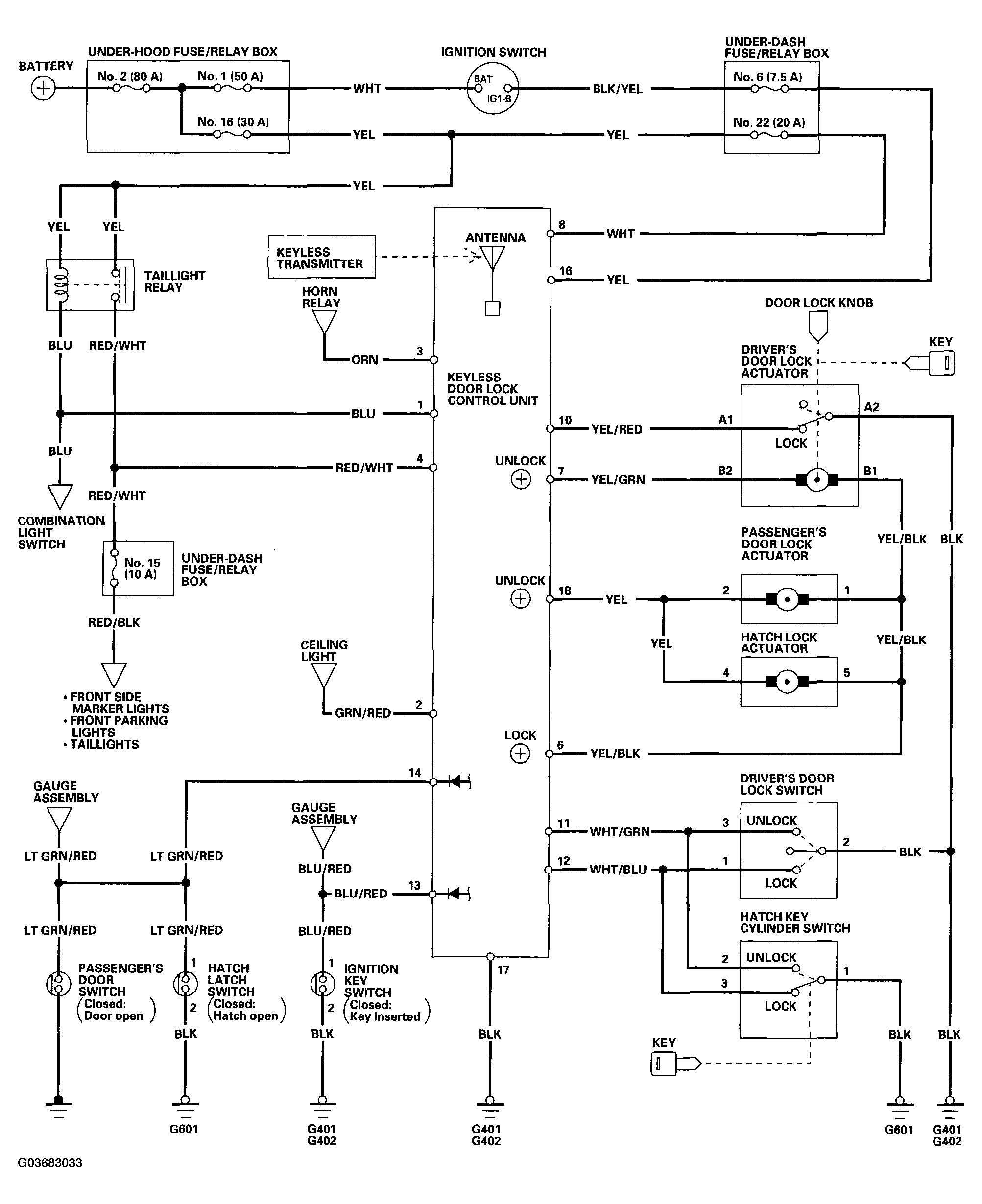

Fig 1: Circuit Diagram - Keyless/Power Door Lock System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
