Repair and Diagnosis
›
Brakes
›
Traction Control
›
Abs (Anti-Lock Brake System)
›
Circuit Diagram
Circuit Diagram

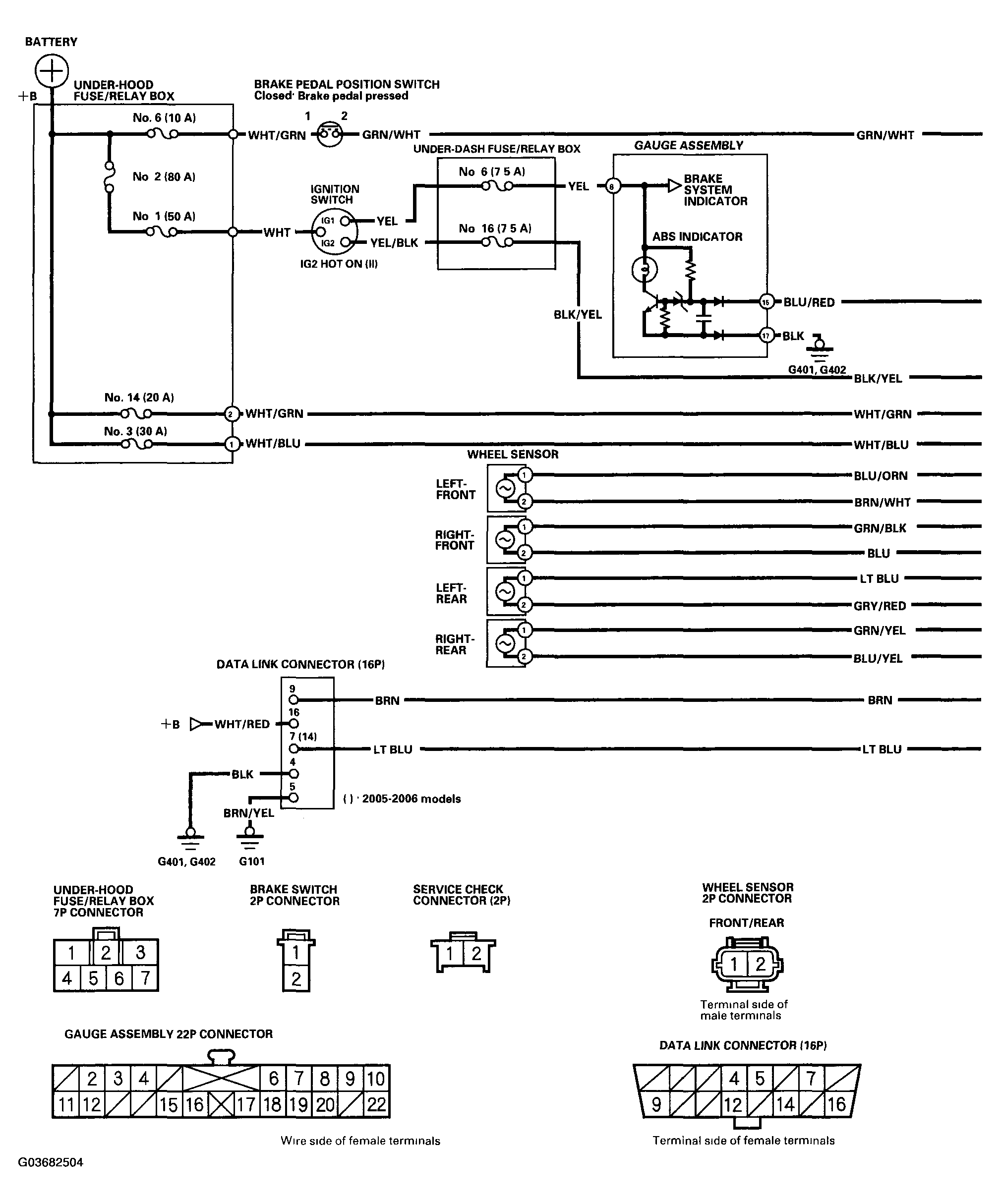

Fig 1: ABS Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

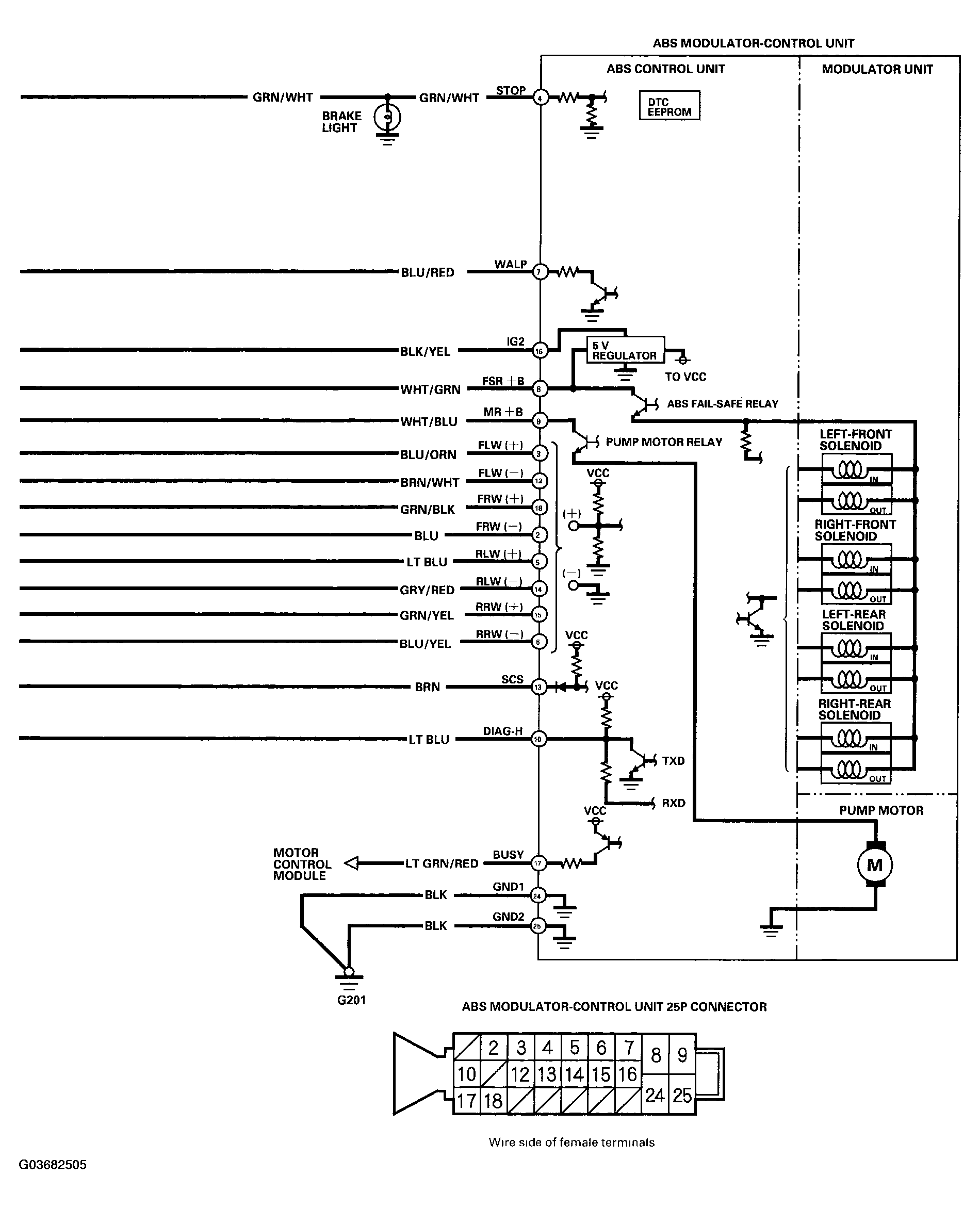

Fig 2: ABS Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
