FixVault
Home
›
Honda
›
2003
›
Insight Standard
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End Views
›
ECM Connector End View
ECM Connector End View

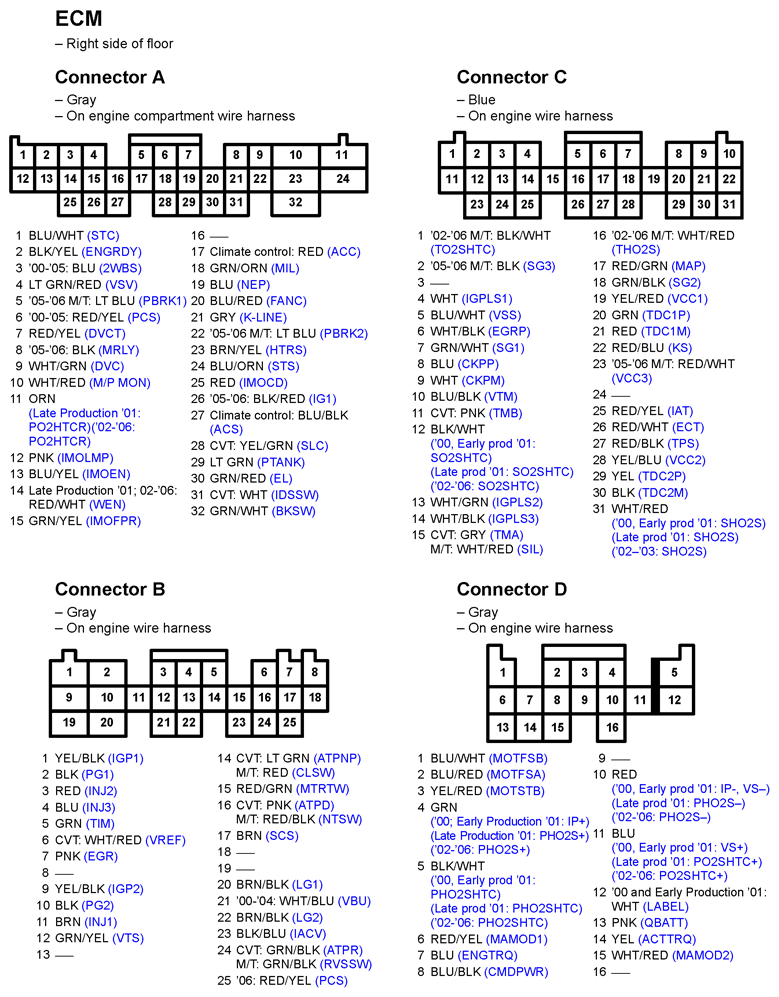

Fig 1: ECM Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
