Transmission Range Switch (CVT) Connector End View
Transmission Range Switch (CVT) Connector End View

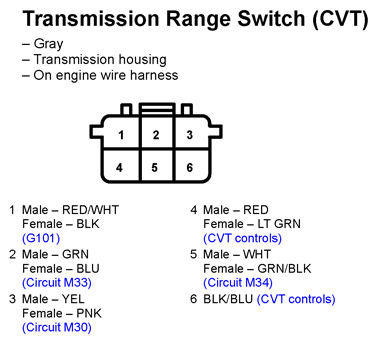

Fig 1: Transmission Range Switch (CVT) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
