Brake Pedal Position Switch Test

Disconnect the 4P connector from the switch (A).

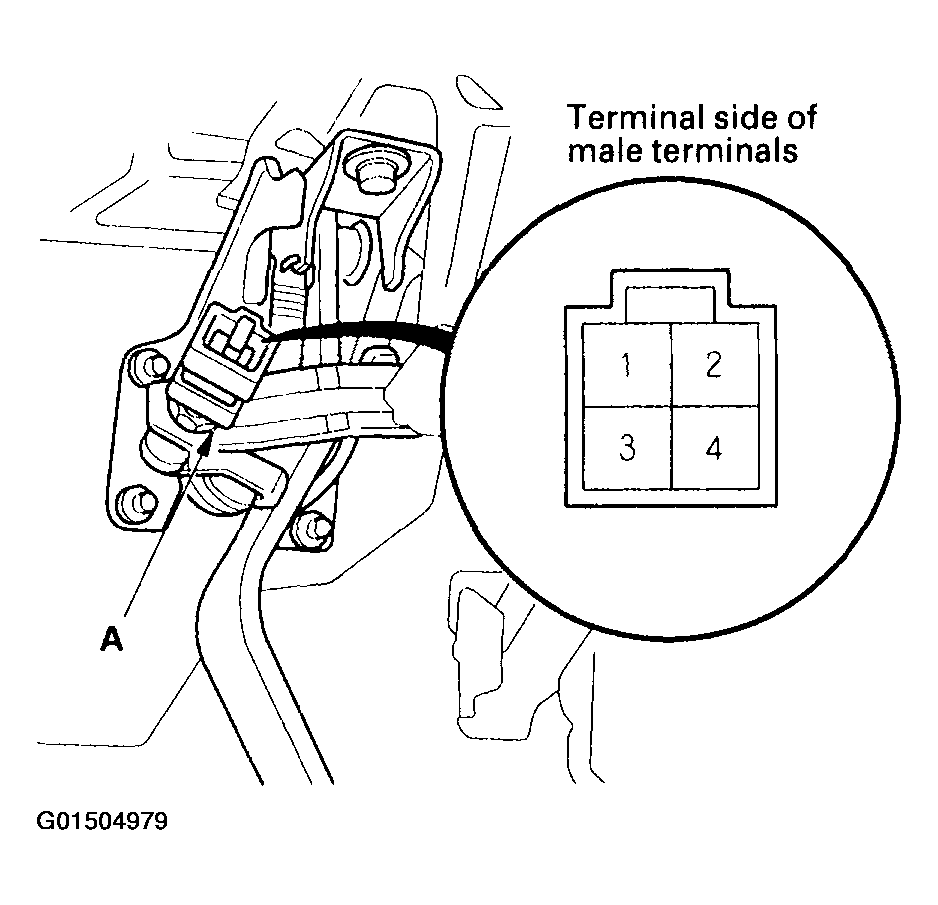

Fig 1: Disconnecting The 4P Connector From The Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake pedal position switch.
Check for continuity between the terminals according to the table.
- If the continuity is not as specified, adjust or replace the switch or adjust the pedal height (see ADJUSTMENTS in appropriate DISC & DRUM article under MECHANICAL - HYDRAULIC in BRAKES).
Fig 2: Checking For Continuity Between The Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
