PCM Inputs and Outputs at Connector D (16P) -'02-04 Models

Fig 1: Identifying 16 Pin Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Standard battery voltage is 12 V.

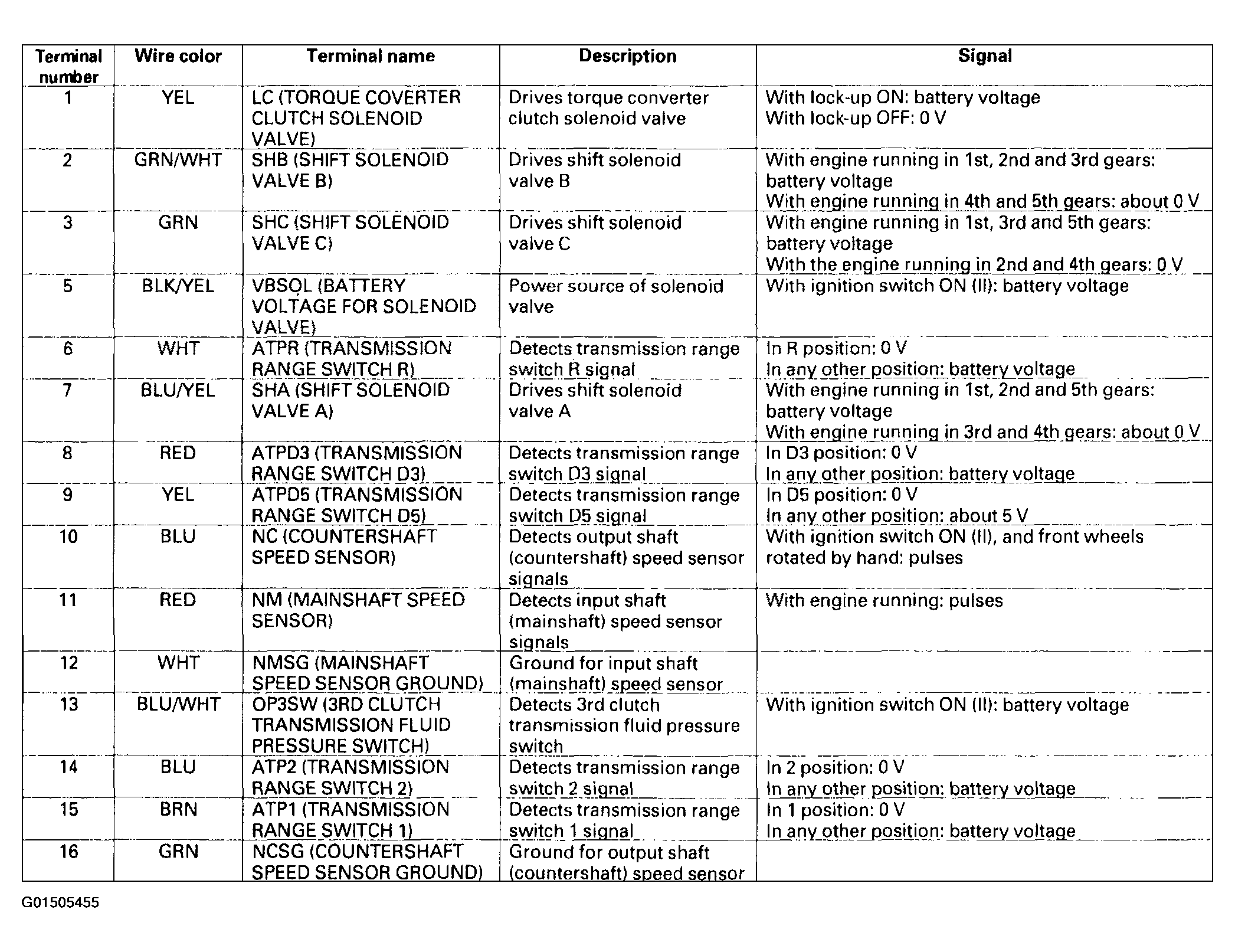

Fig 2: PCM Inputs & Outputs Pin Voltage Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
