Wipers/Washers
›
Circuit Diagram-Rear Window
Circuit Diagram-Rear Window

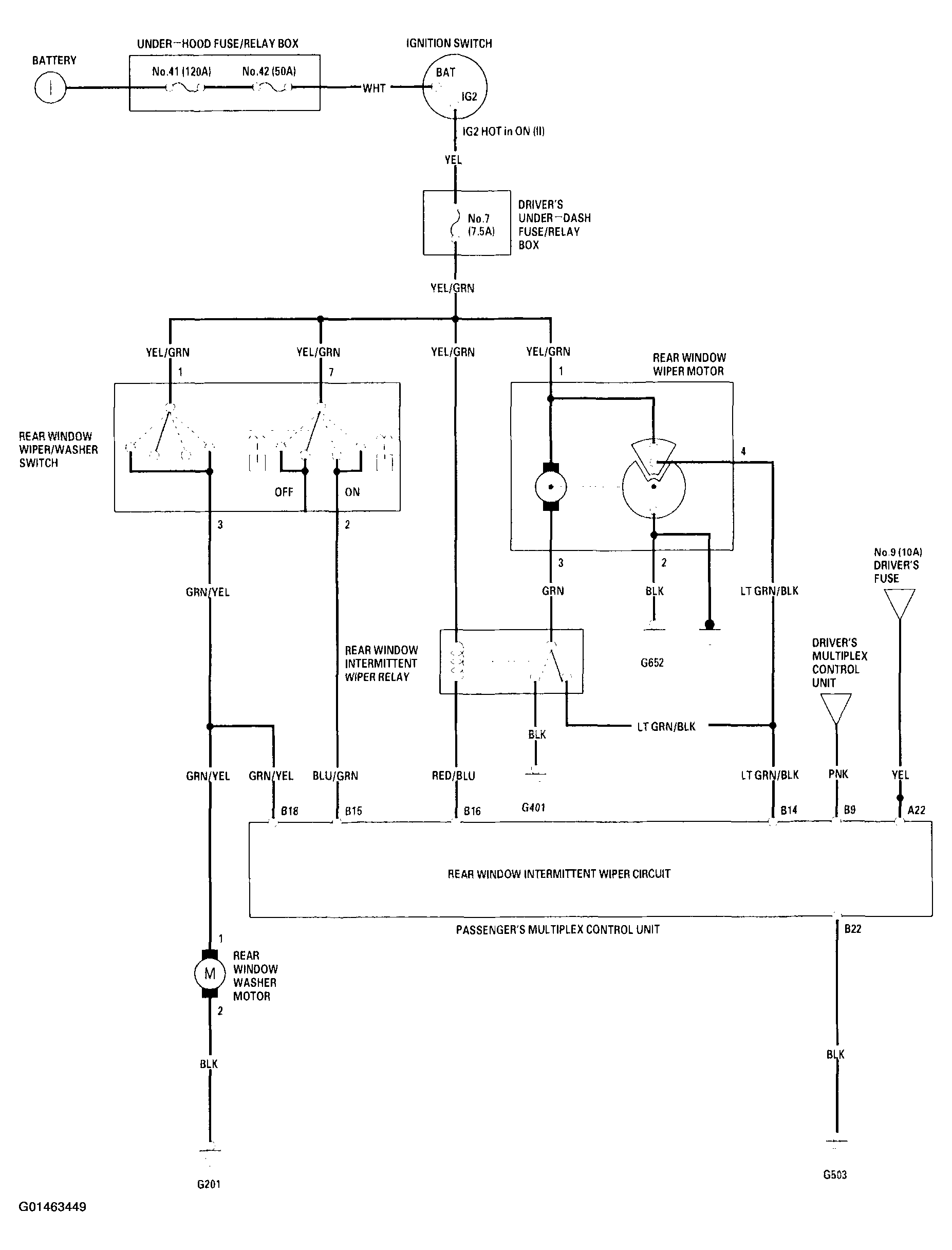

Fig 1: Rear Window Wiper/Washer System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
