Washer Fluid Level Switch Test/Replacement: Canada

Remove the right inner fender .
Disconnect the 2P connector (A) from the washer fluid level switch (B).

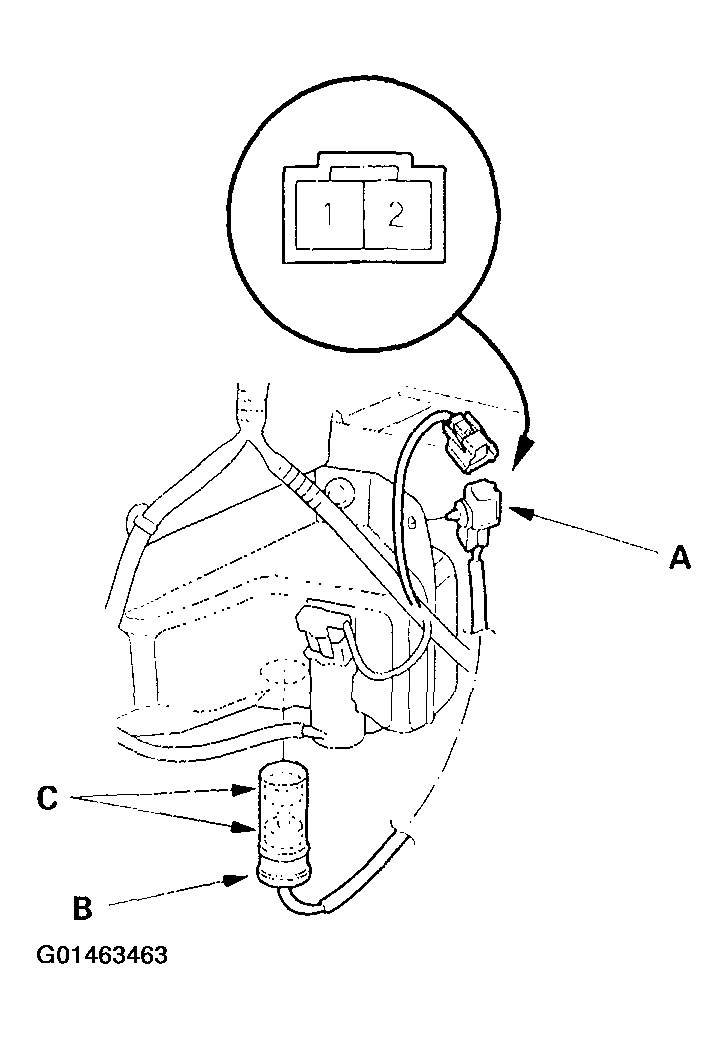

Fig 1: Identifying Washer Fluid Level Switch 2P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Fluid may flow out of the opening.

Remove the washer fluid level switch from the reservoir.
Check for continuity between the No. 1 and No. 2 terminals in each float switch position (C).
- There should be continuity when the float is down.
- There should be no continuity when the float is up.
If the continuity is not as specified, replace the float switch.
