Component Location Index

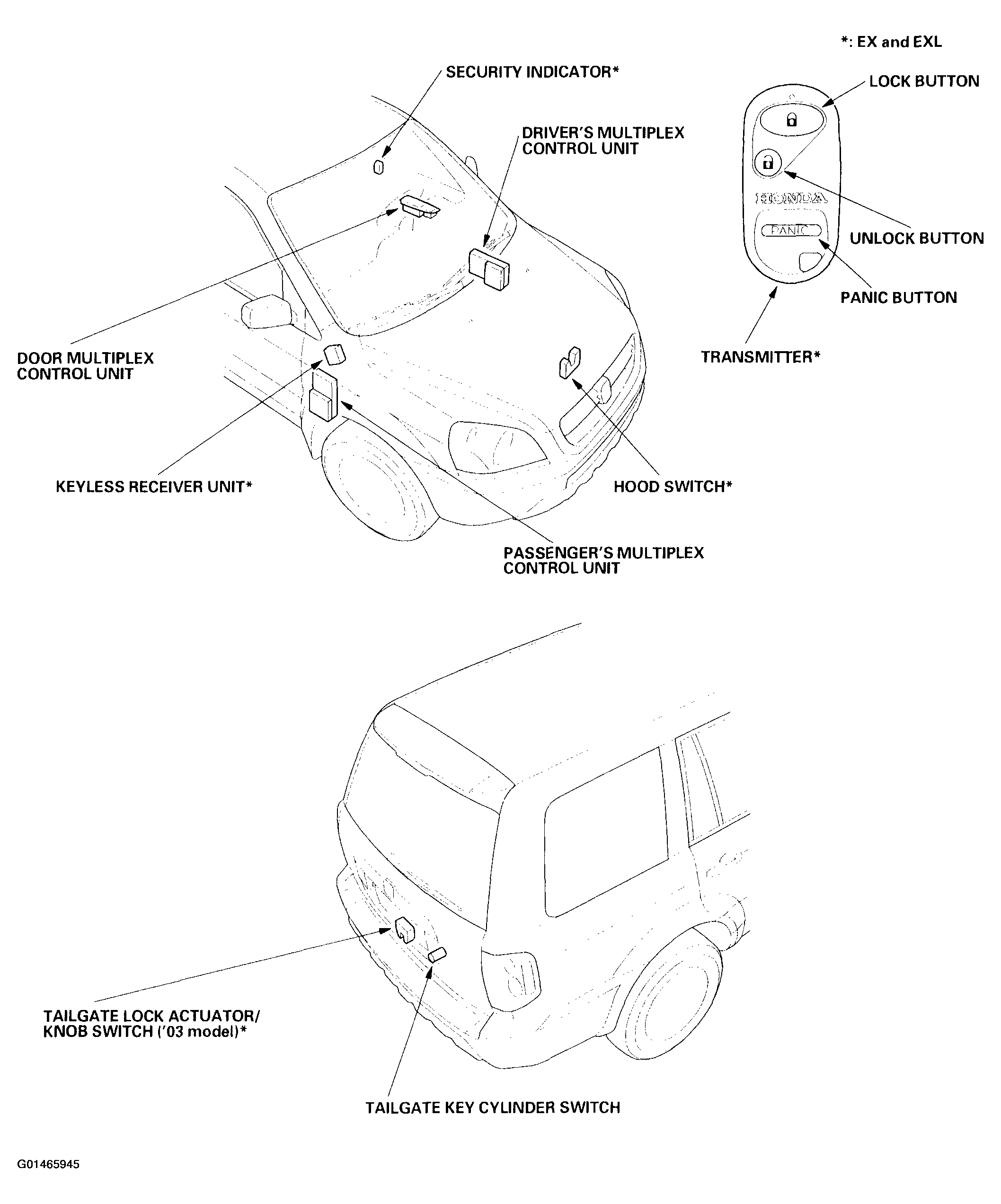

Fig 1: Locating Power Door Locks/Keyless Entry/Security System Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

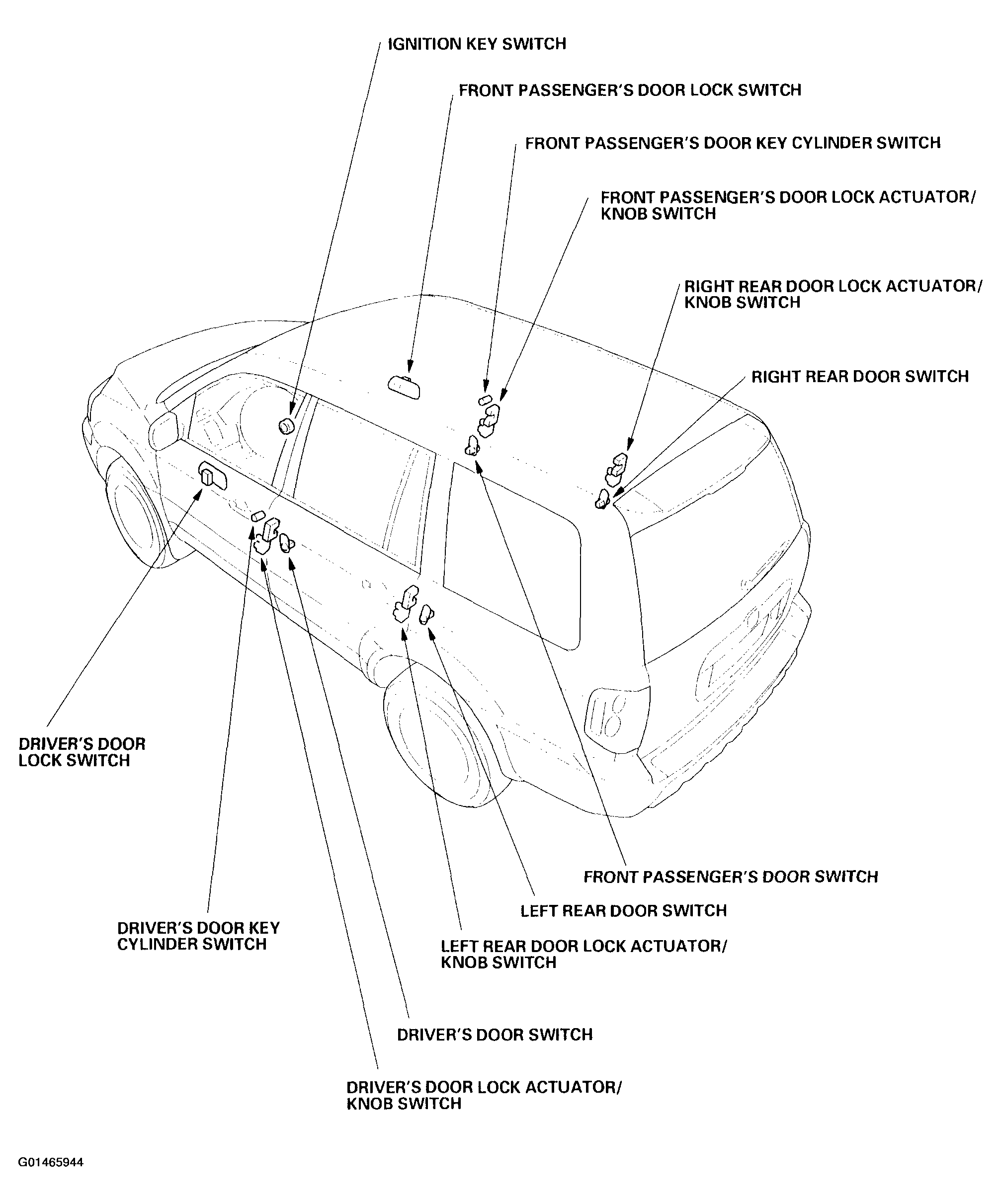

Fig 2: Locating Power Door Locks/Keyless Entry/Security System Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
