Center Console Removal/Installation

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
  • Take care not to scratch the front seat, dashboard, and related parts.

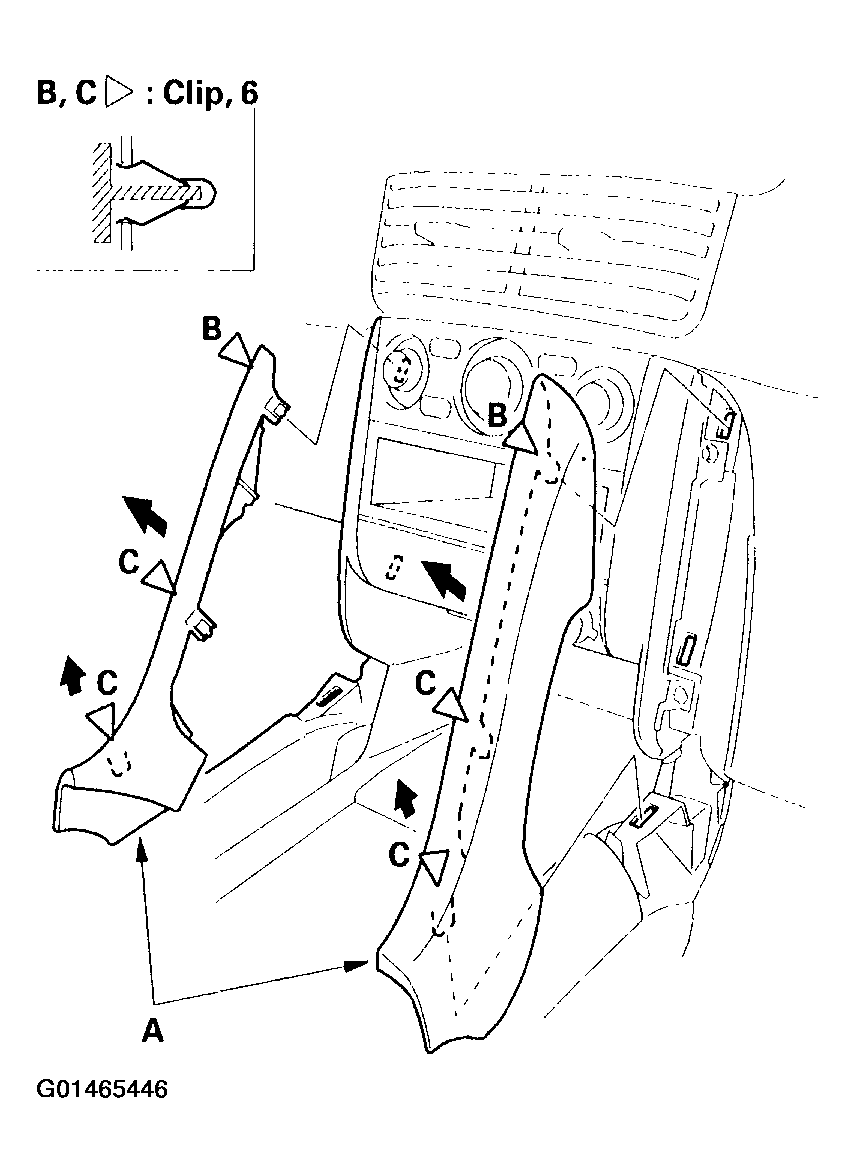

  1. Starting at the top, gently pull the center front covers (A) out to detach the clips (B), then pull the cover out to detach the remaining clips (C), and remove the covers from both sides.
    Fig 1: Identifying Center Console Fastener Locations (1 Of 6)
    G01465446Courtesy of AMERICAN HONDA MOTOR CO., INC.

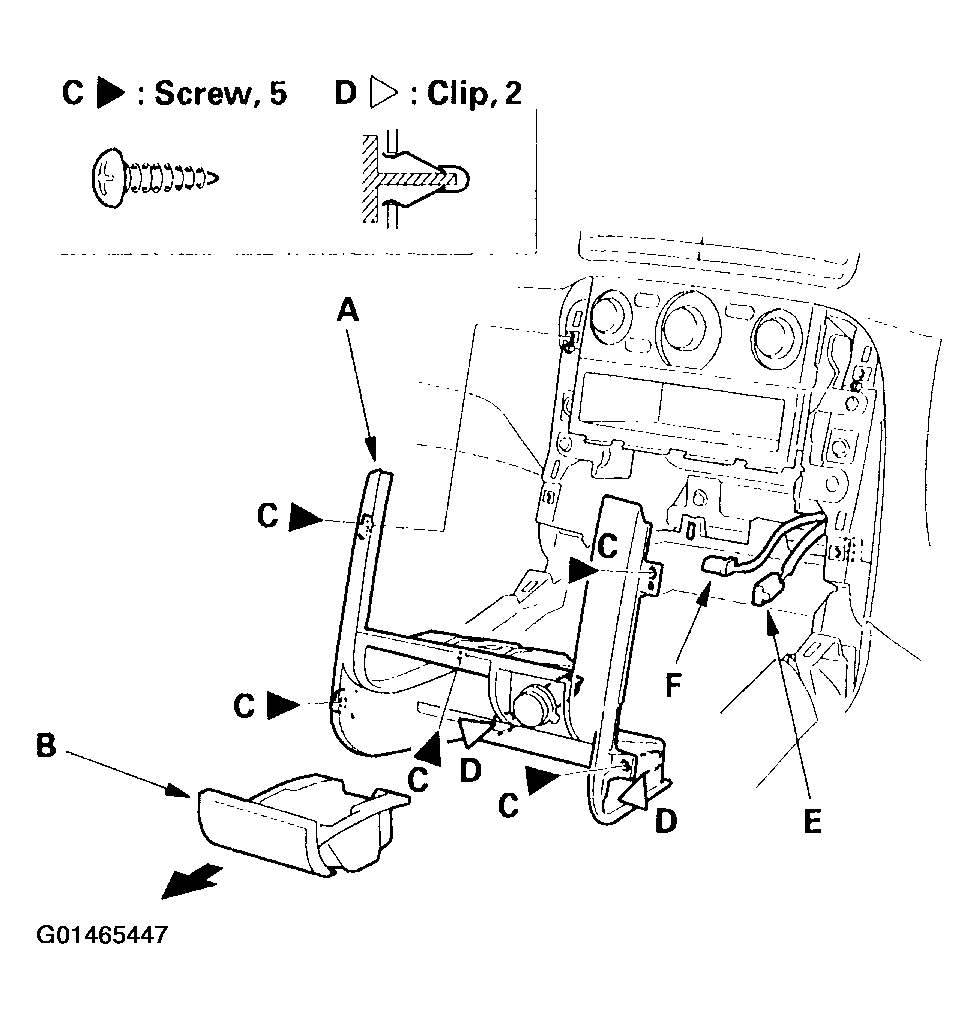

  2. Remove the center lower cover (A).
    1. Remove the coin pocket (B).
    2. Remove the screws (C).
    3. Pull the cover out to detach the clips (D).
    4. Disconnect the accessory power socket connector (E) and console light connector (F).
    Fig 2: Identifying Center Console Fastener Locations (2 Of 6)
    G01465447Courtesy of AMERICAN HONDA MOTOR CO., INC.

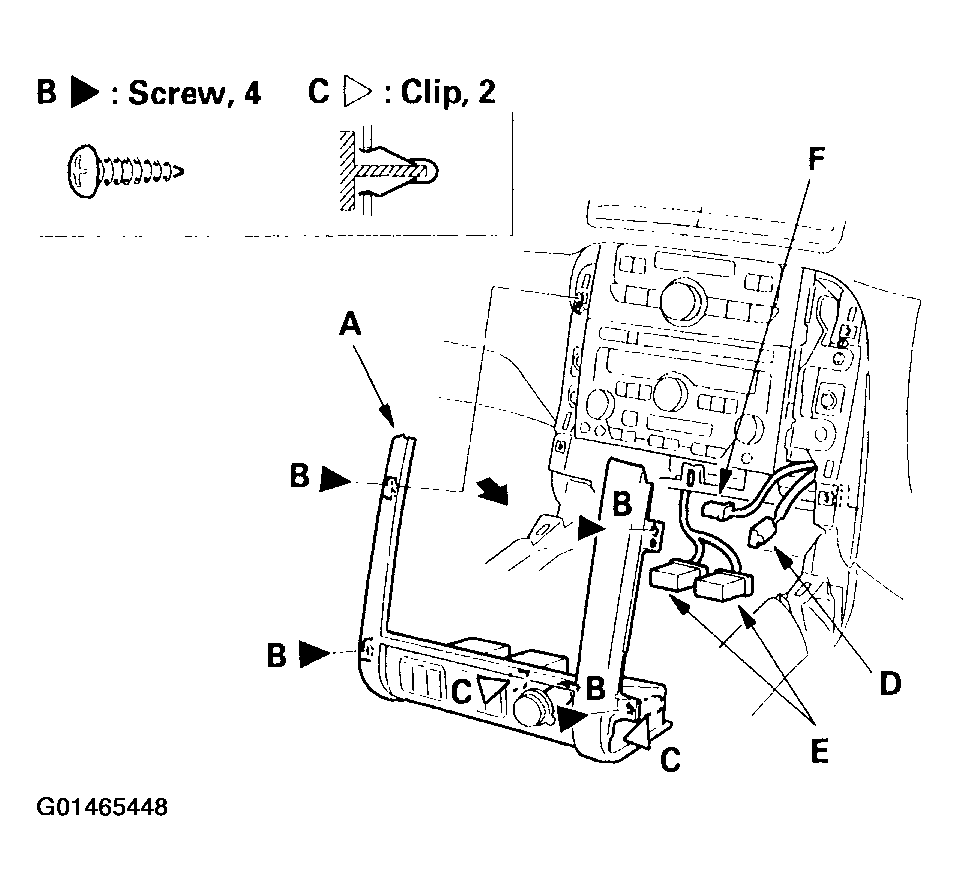

  3. For some models: Remove the center lower cover (A) with the seat heater switches.
    1. Remove the screws (B).
    2. Pull the cover out to detach the clips (C).
    3. Disconnect the accessory power socket connector (D), seat heater switch connectors (E), and console light connector (F).
    Fig 3: Identifying Center Console Fastener Locations (3 Of 6)
    G01465448Courtesy of AMERICAN HONDA MOTOR CO., INC.

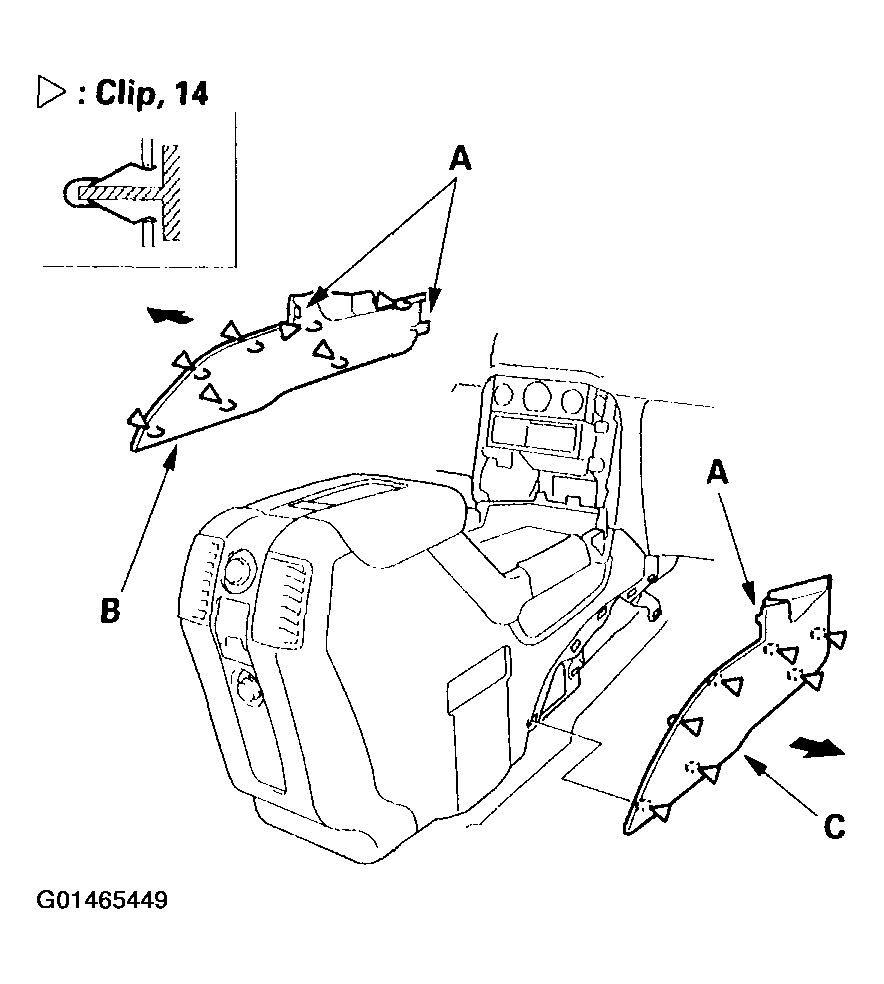

  4. Detach the clips and release the hooks (A), then remove the driver's console side trim (B) and passenger's console side trim (C).
    Fig 4: Identifying Center Console Fastener Locations (4 Of 6)
    G01465449Courtesy of AMERICAN HONDA MOTOR CO., INC.

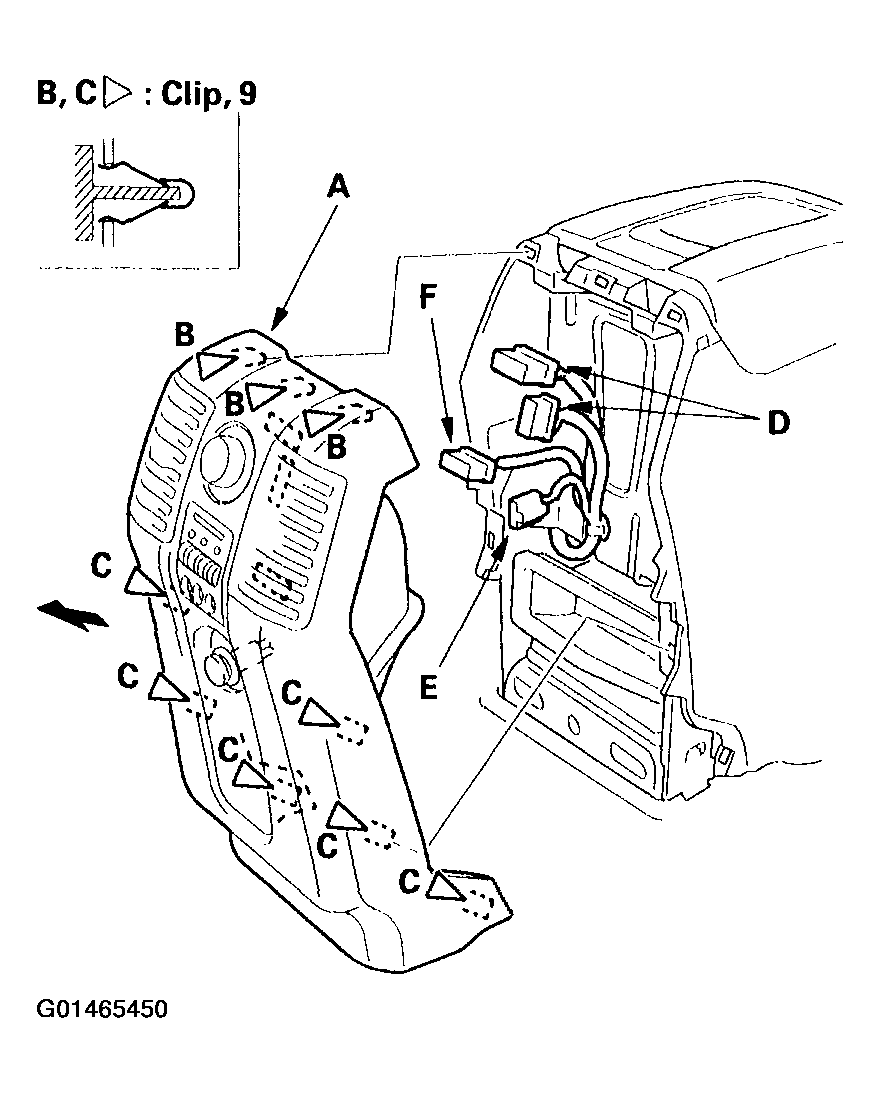

  5. Starting at the top, gently pull out the console rear trim (A) to detach the clips (B), then pull out the trim to detach the remaining clips (C), and disconnect the rear heater-A/C passenger's control panel-unit connectors (D) and accessory power socket connector (E). If equipped with rear entertainment system, disconnect the rear entertainment system jack connector (F).
    Fig 5: Identifying Center Console Fastener Locations (5 Of 6)
    G01465450Courtesy of AMERICAN HONDA MOTOR CO., INC.

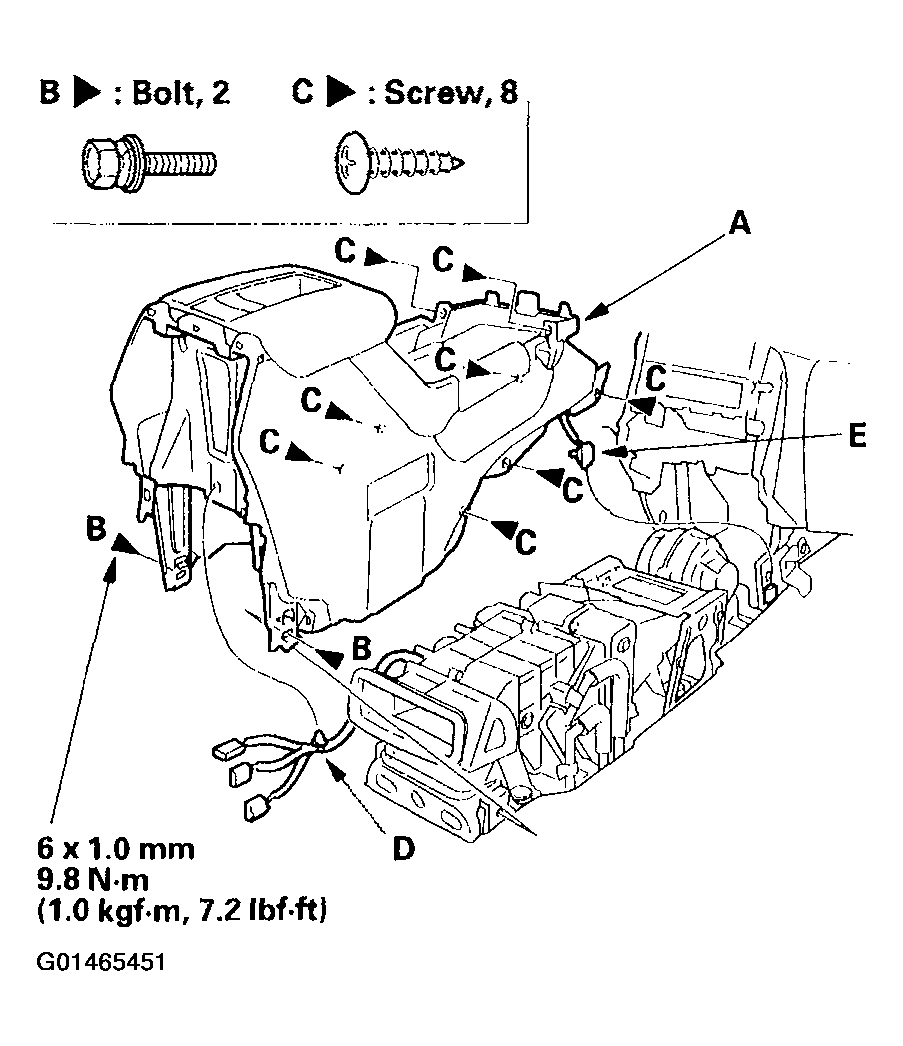

  6. Remove the center console (A).
    1. From both sides, remove the bolts (B) and screws (C).
    2. Detach the harness clip (D).
    3. Disconnect the accessory power socket connector (E), and detach it.
    4. Lift the console up, then remove it.
    Fig 6: Identifying Center Console Fastener Locations (6 Of 6)
    G01465451Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the center console in the reverse order of removal, and note these items:
    • Replace any damaged clips.
    • Make sure all the connectors are plugged in properly.
    • Push the clips into place securely.
