Center Panel Removal/Installation

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Take care not to scratch the dashboard and related parts.

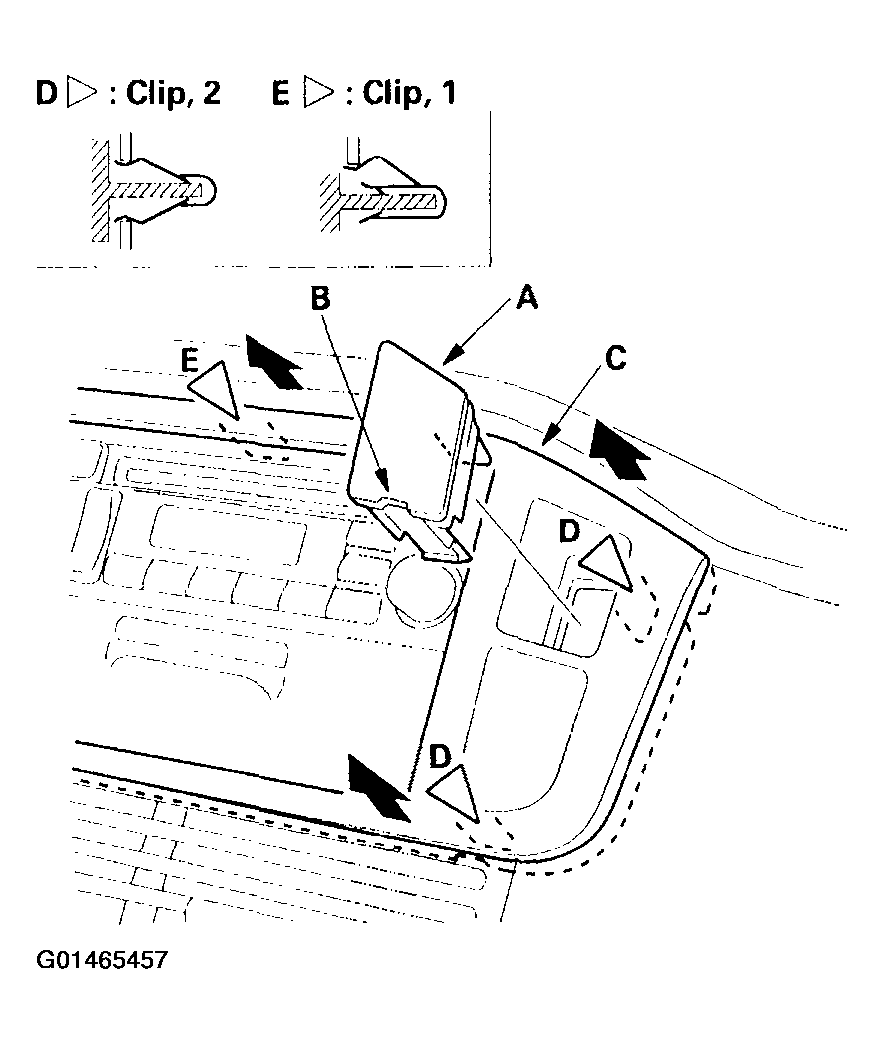

On the passenger's side, use a flat-tip screwdriver to pry out the switch lid (A) at the notch (B), and remove the lid.

Fig 1: Identifying Center Panel Fastener Locations (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Gently pull out the dashboard center panel (C) by grasping inside the switch lid hole to detach the clips (D, E).
On the driver's side, gently pull out on the panel (A) to detach the side clips, then remove the panel.

Fig 2: Identifying Center Panel Fastener Locations (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

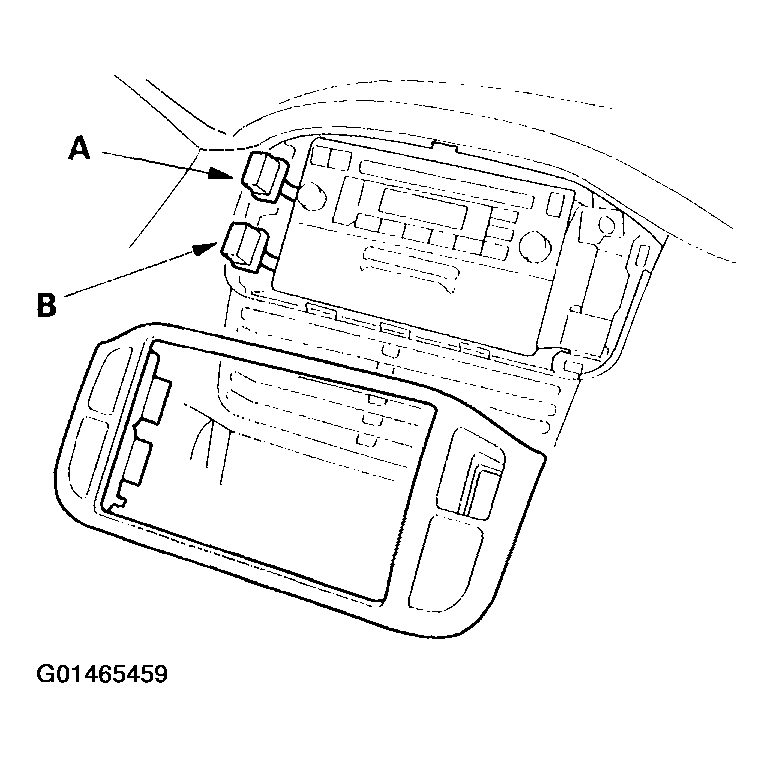

Disconnect the hazard warning switch connector (A) and VTM-4 lock switch connector (B).

Fig 3: Disconnecting The Hazard Warning Switch Connector & VTM-4 Lock Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly.
- Replace any damaged clips.
- Push the clips into place securely.
