Instrument Panel Removal/Installation

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
  • Take care not to scratch the dashboard and related parts.
  1. Tilt the steering column down.
  2. Remove the instrument panel (A).
    1. Remove the screws (B).
    2. Gently pull out the panel to release the clips (C) and hooks (D).
    3. Release the bottom portion (E) of the panel from the steering column upper cover (F).

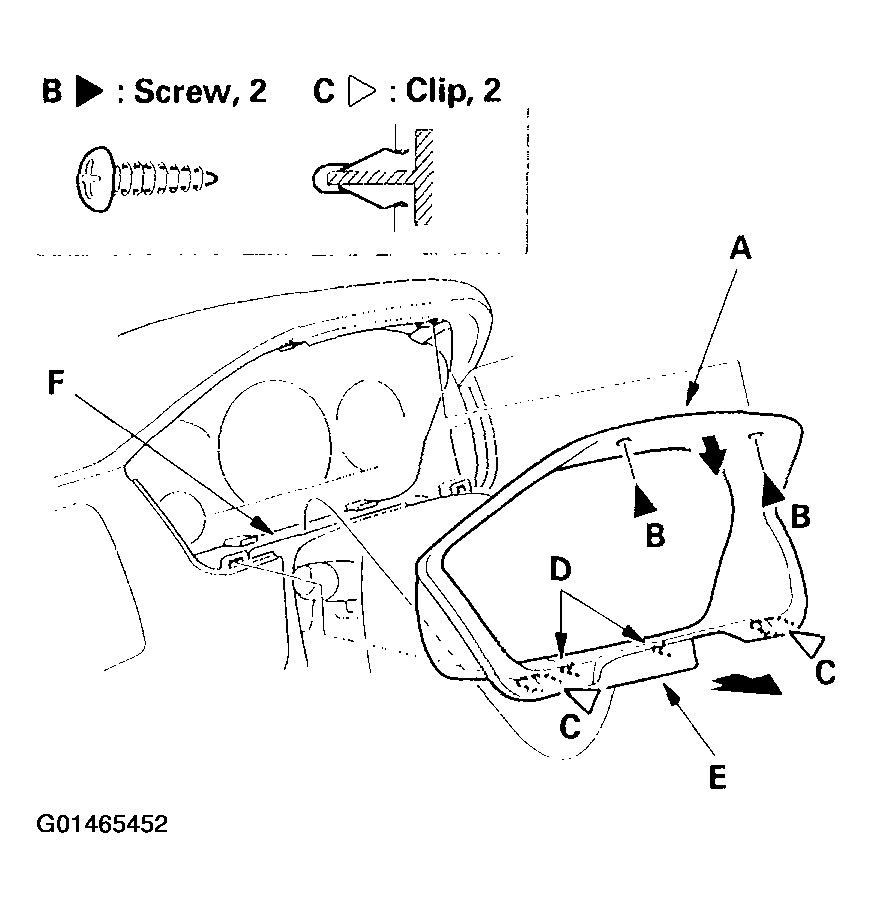

    Fig 1: Identifying Instrument Panel Fastener Locations
    G01465452Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the panel in the reverse order of removal, and note these items:
    • Replace any damaged clips.
    • Push the clips into place securely.
