Front Door Glass Inner Weatherstrip Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the door and molding.
  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION  ).
  2. Pull the door glass inner weatherstrip (A) up, then remove it.

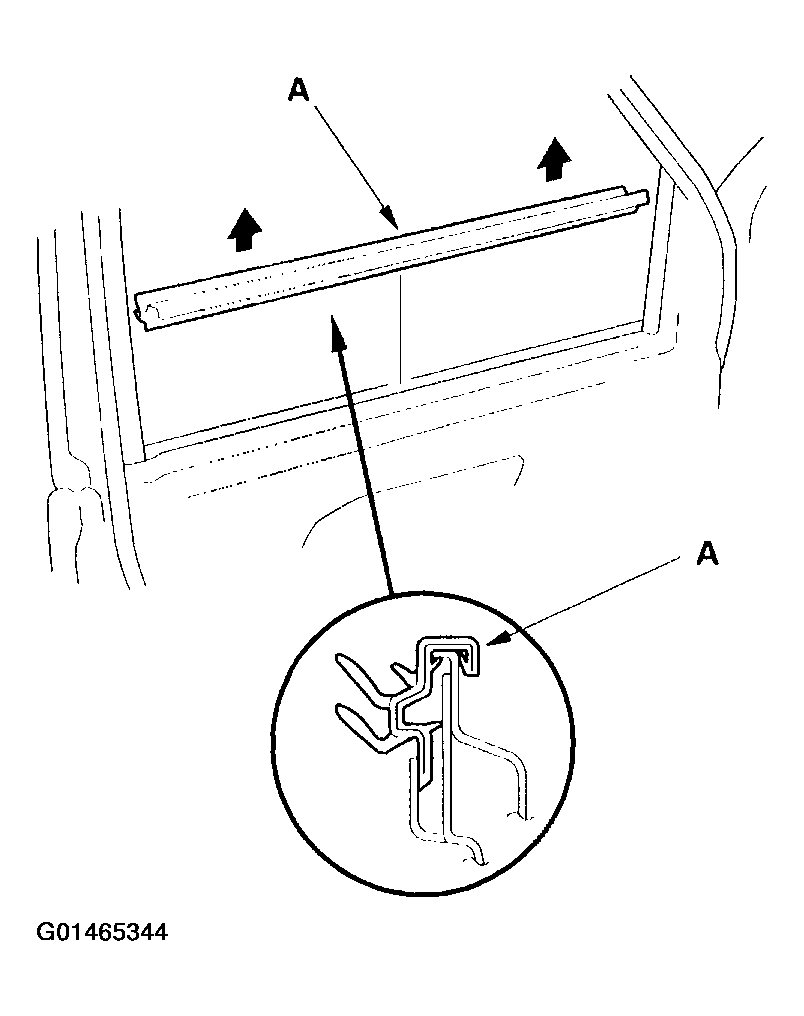

    Fig 1: Removing The Door Glass Inner Weatherstrip
    G01465344Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the weatherstrip in the reverse order of removal.
