Front Door Glass Outer Weatherstrip Replacement
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the door.
- Remove the power mirror (see POWER MIRROR REPLACEMENT ).

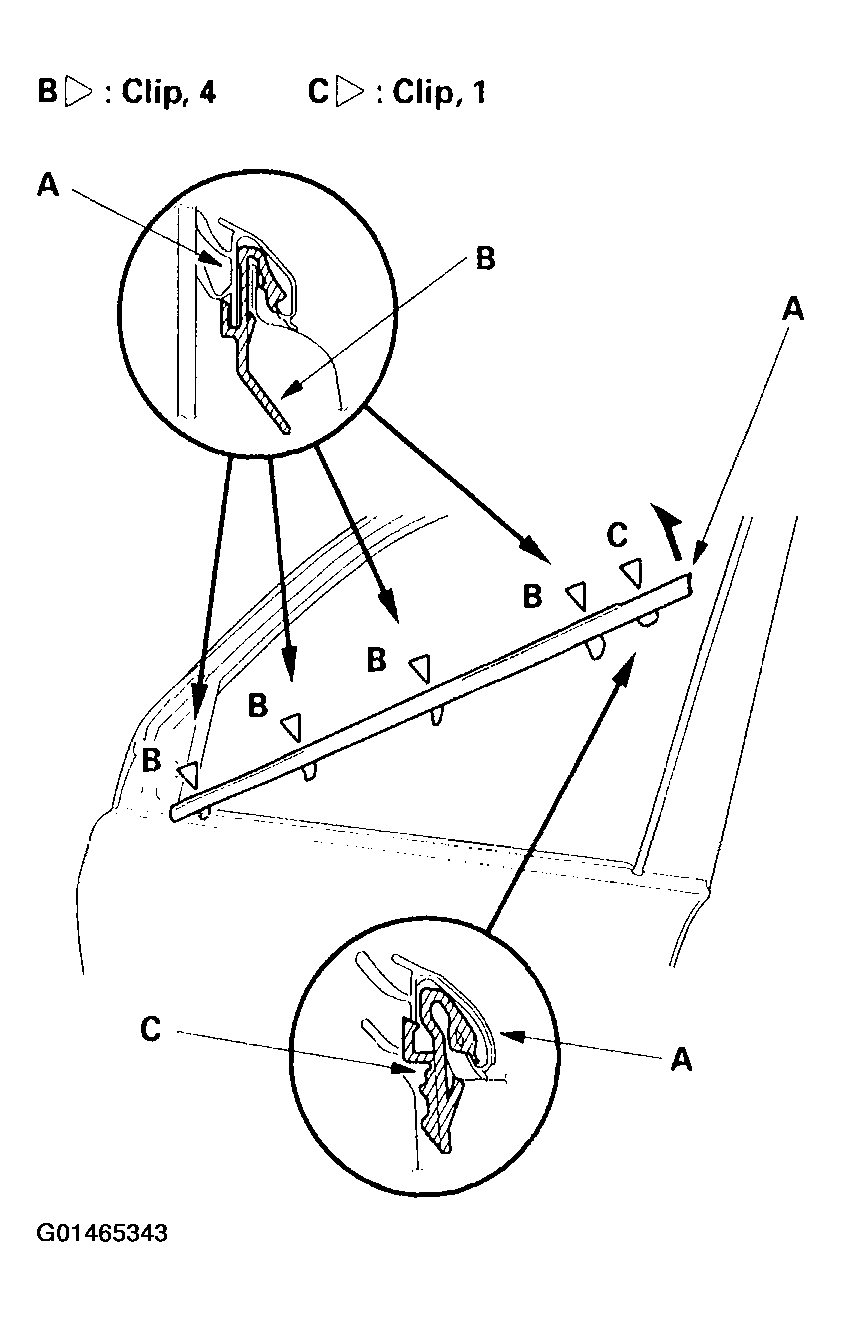

- Starting at the rear, pry the door glass outer weatherstrip (A) up to detach the clips (B, C), then remove the weatherstrip.
- Install the weatherstrip in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
