Rear Door Sash Trim Replacement

NOTE: Take care not to scratch the door.

Turn the door weatherstrip (A) at the front upper corner portion, then remove the screw.

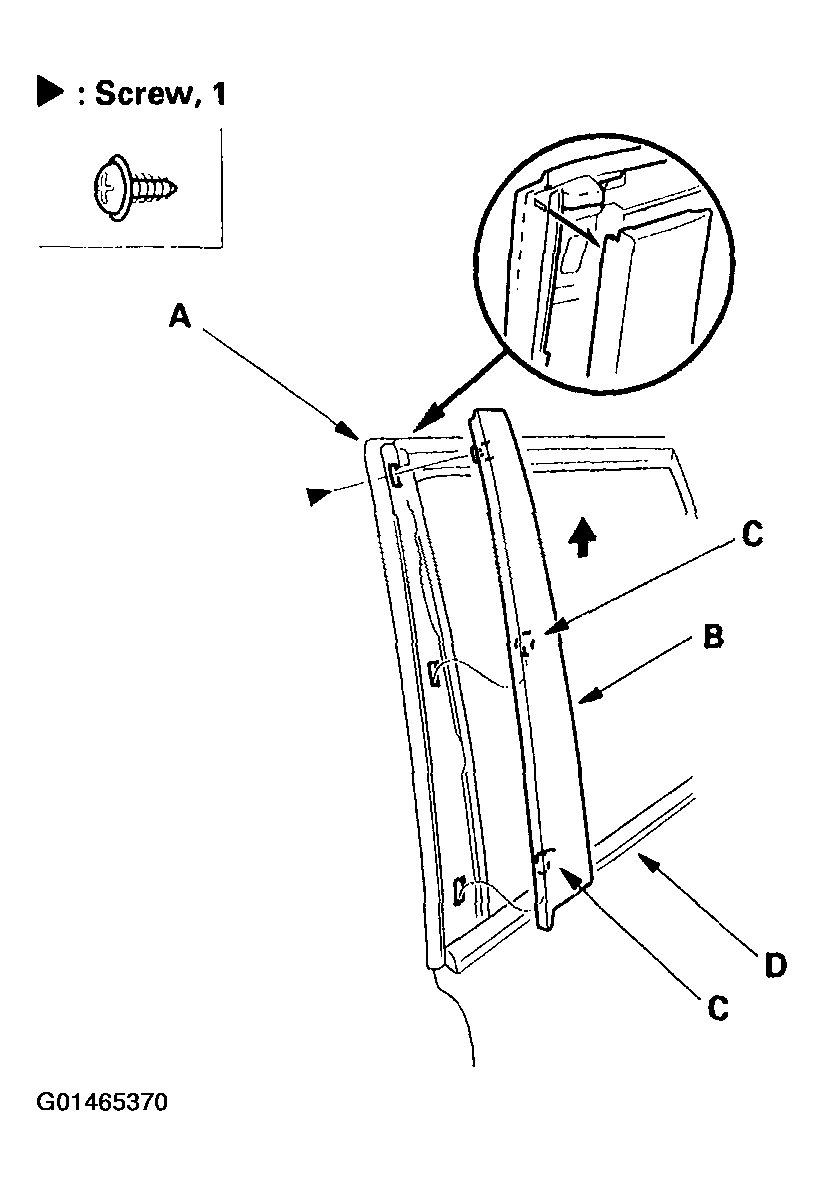

Fig 1: Removing The Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull up the sash trim (B) to release the hooks (C), then remove the trim. Take care not to damage the door glass outer weatherstrip (D).
Install the sash trim in the reverse order of removal.
