Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Generators & Regulators
›
Trouble Shooting
›
Charging Circuit
›
Charging System Indicator Test
Charging System Indicator Test
For charging indicator test, see
Fig 1
.

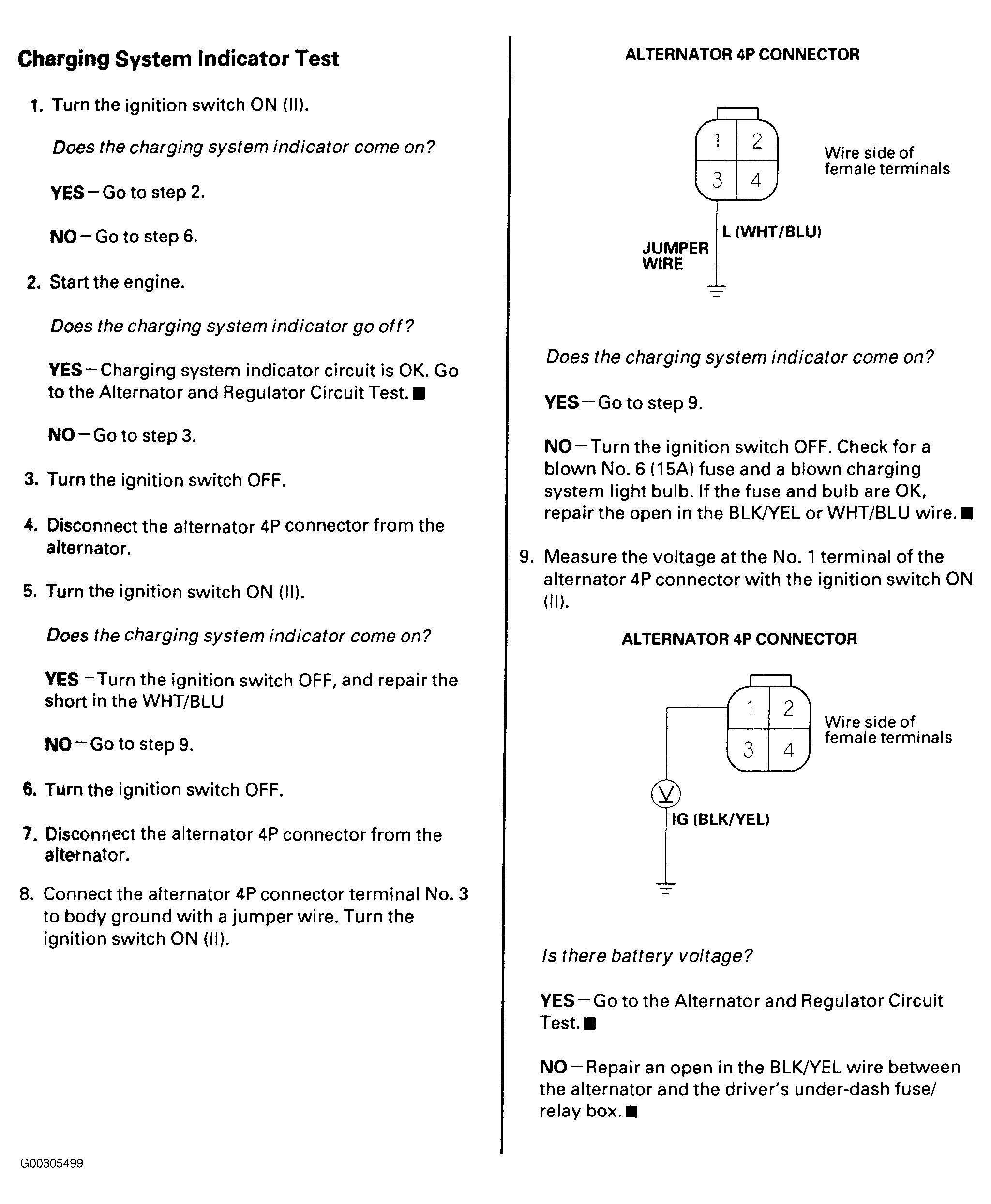

Fig 1: Charging System Indicator Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
