Repair and Diagnosis
›
Electrical
›
Gauges
›
Multiplex Control System
›
Component Location Index
Component Location Index

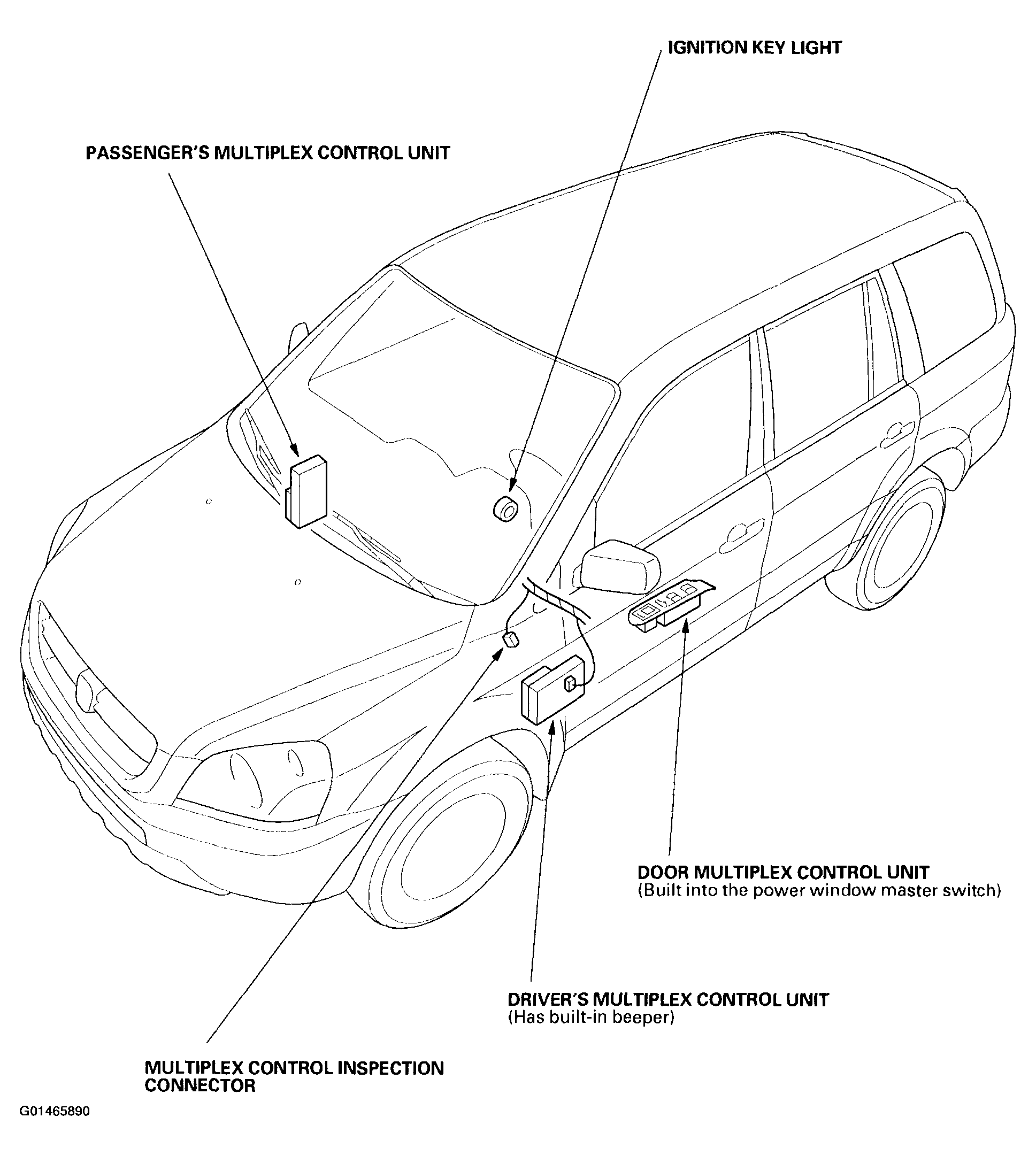

Fig 1: Locating Multiplex Control System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
