Removal & Installation: Starter: Removal

1. Ensure you have the anti-theft codes for the radio and the navigation system, write down the frequencies for the radio's preset buttons.
2. Disconnect the battery negative cable, disconnect the positive cable.
3. Unlatch the Automatic Transmission Fluid (ATF) cooler hose clamp (A). Disconnect the starter cable (B) and Black/White wire (C). See Fig 1.
4. Remove the two bolts holding the starter, remove the starter.

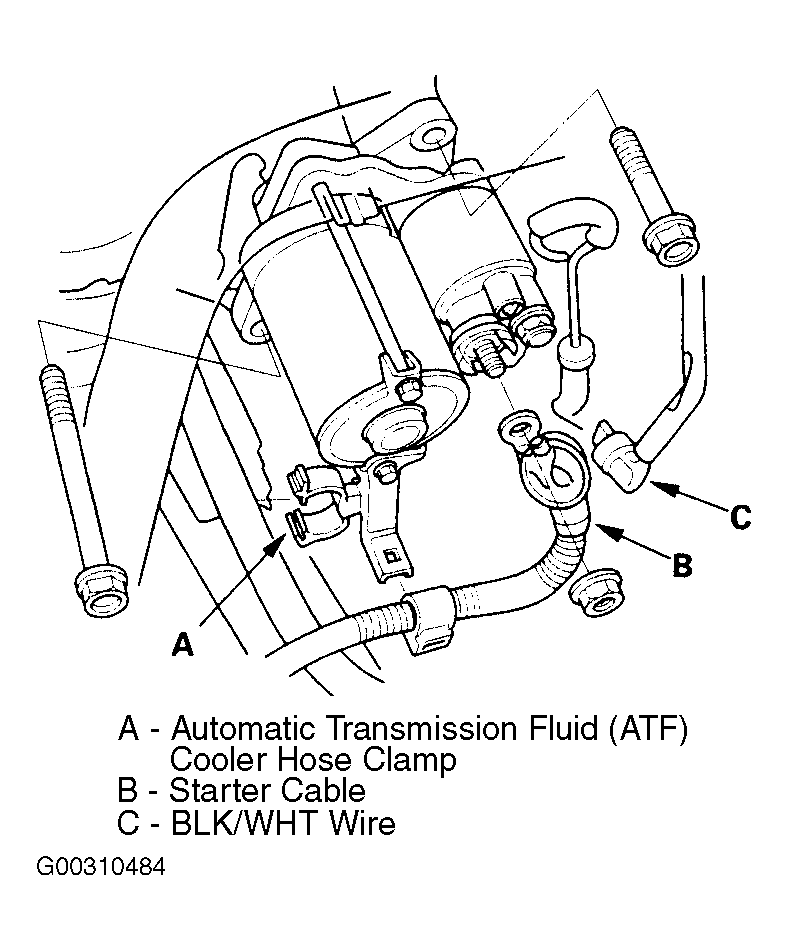

Fig 1: Removing/Installing Starter

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Positioning Crimped Side Of The Ring Terminal

Courtesy of AMERICAN HONDA MOTOR CO., INC.
