Radiator And Fan Replacement

NOTE:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
  • Mark all wiring and hoses to avoid misconnection. Also, be sure that they do not contact other wiring or hoses, or interfere with other parts.
  1. Remove the radiator cover.
  2. Make sure you have the anti-theft codes for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
  3. Disconnect the negative cable from the battery first, then disconnect the positive cable.
  4. Remove the battery and battery tray.
  5. Drain the engine coolant (see Coolant Replacement  ).

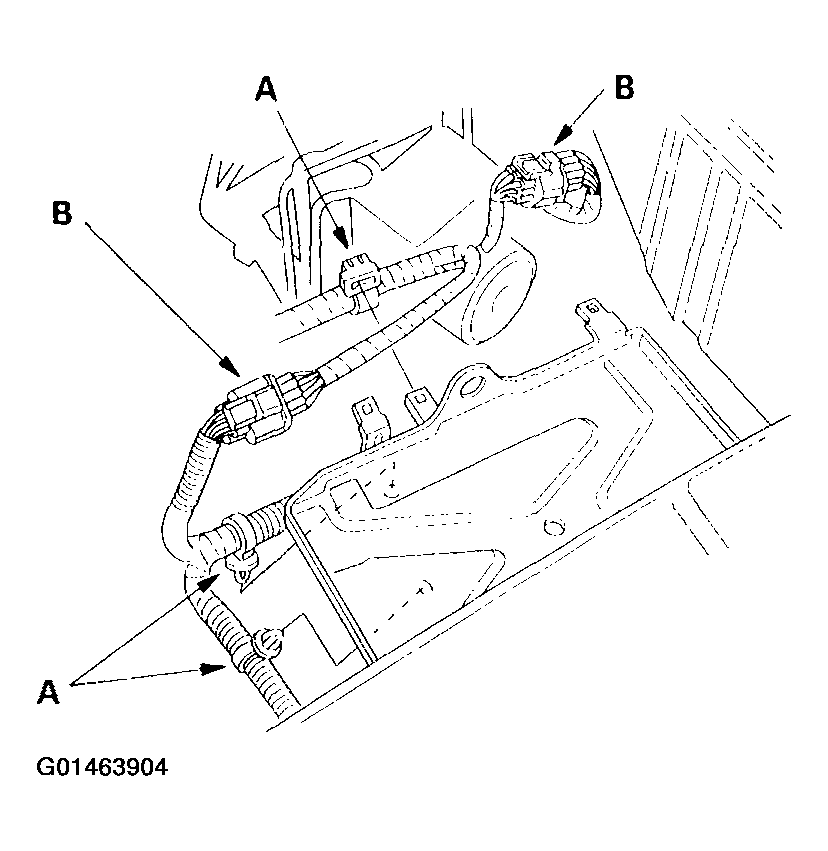

  6. Remove the harness clamps (A), and engine wire harness connectors (B) from the battery base.
    Fig 1: Removing The Harness Clamps & Engine Wire Harness Connectors From The Battery Base
    G01463904Courtesy of AMERICAN HONDA MOTOR CO., INC.

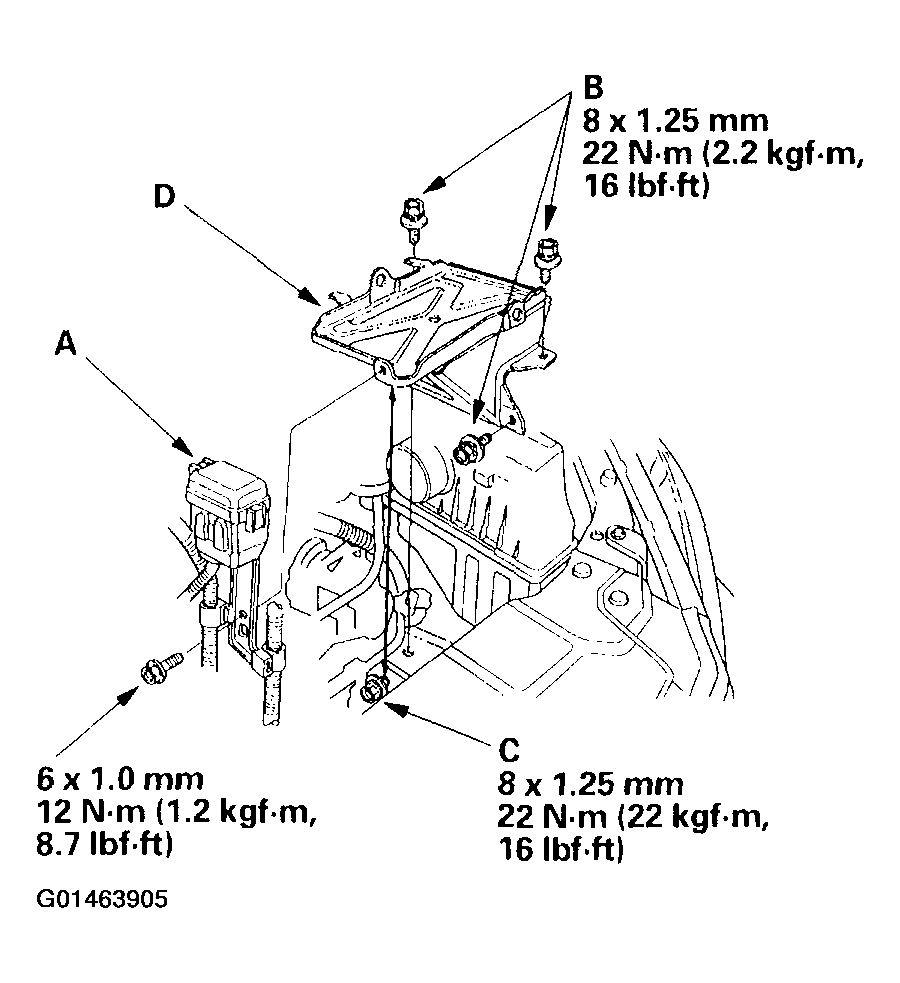

  7. Remove relay bracket (A).
    Fig 2: Removing Relay Bracket
    G01463905Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the three mounting bolts (B), and loosen the mounting bolt (C), then remove the battery base (D).

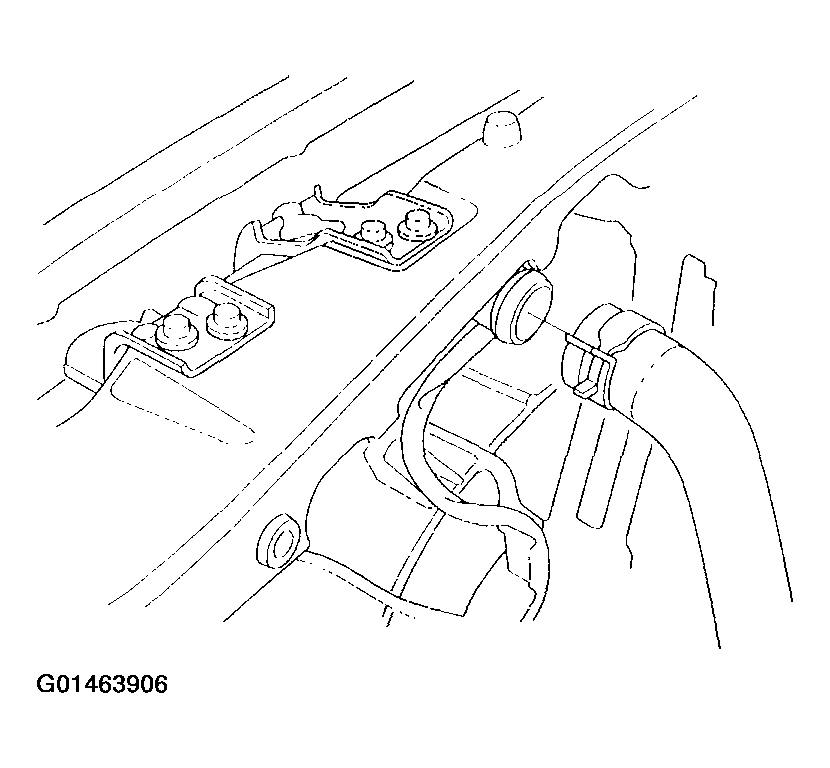

  9. Remove the upper radiator hose.
    Fig 3: Removing The Upper Radiator Hose
    G01463906Courtesy of AMERICAN HONDA MOTOR CO., INC.

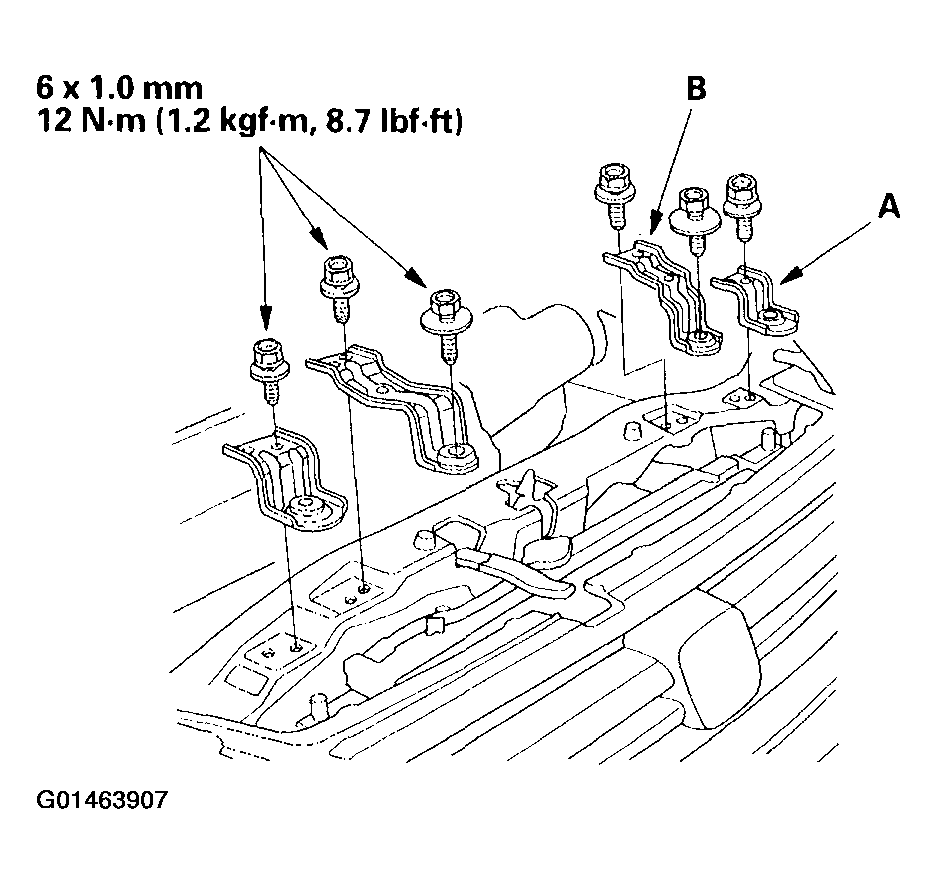

  10. Remove the radiator upper brackets/cushions (A) and condenser brackets (B).
    Fig 4: Removing The Radiator Upper Brackets/Cushions & Condenser Brackets
    G01463907Courtesy of AMERICAN HONDA MOTOR CO., INC.

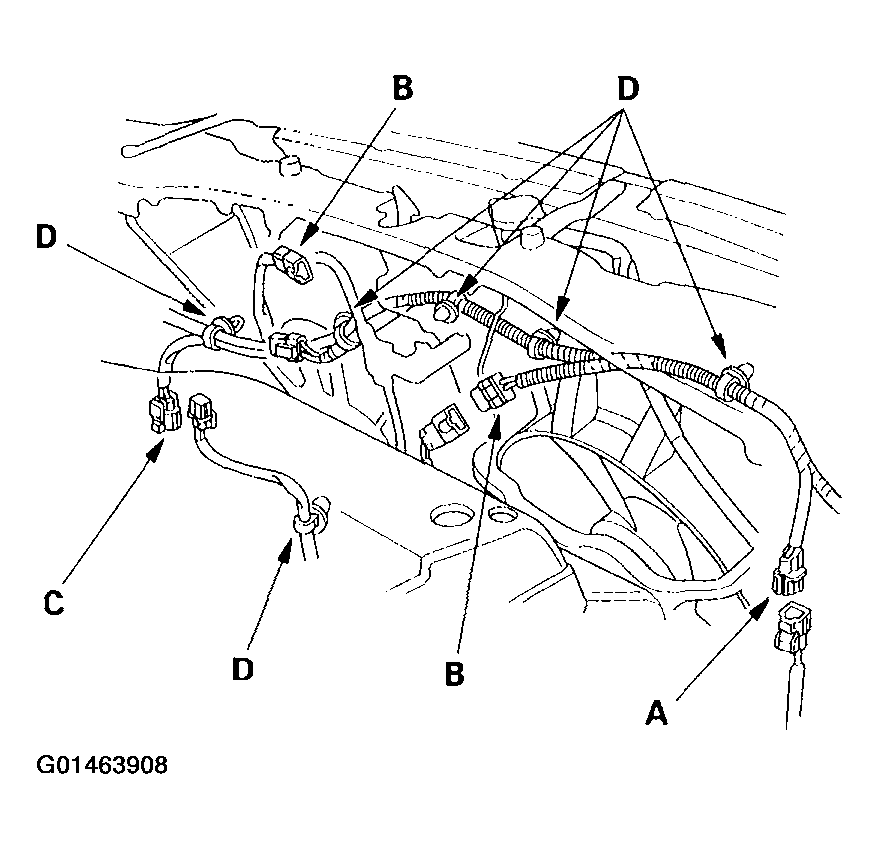

  11. Disconnect the compressor clutch connector (A), fan motor connectors (B), and radiator fan switch C connector (C).
    Fig 5: Disconnecting The Compressor Clutch Connector, Fan Motor Connectors & Radiator Fan Switch C Connector
    G01463908Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Remove the harness clamps (D).

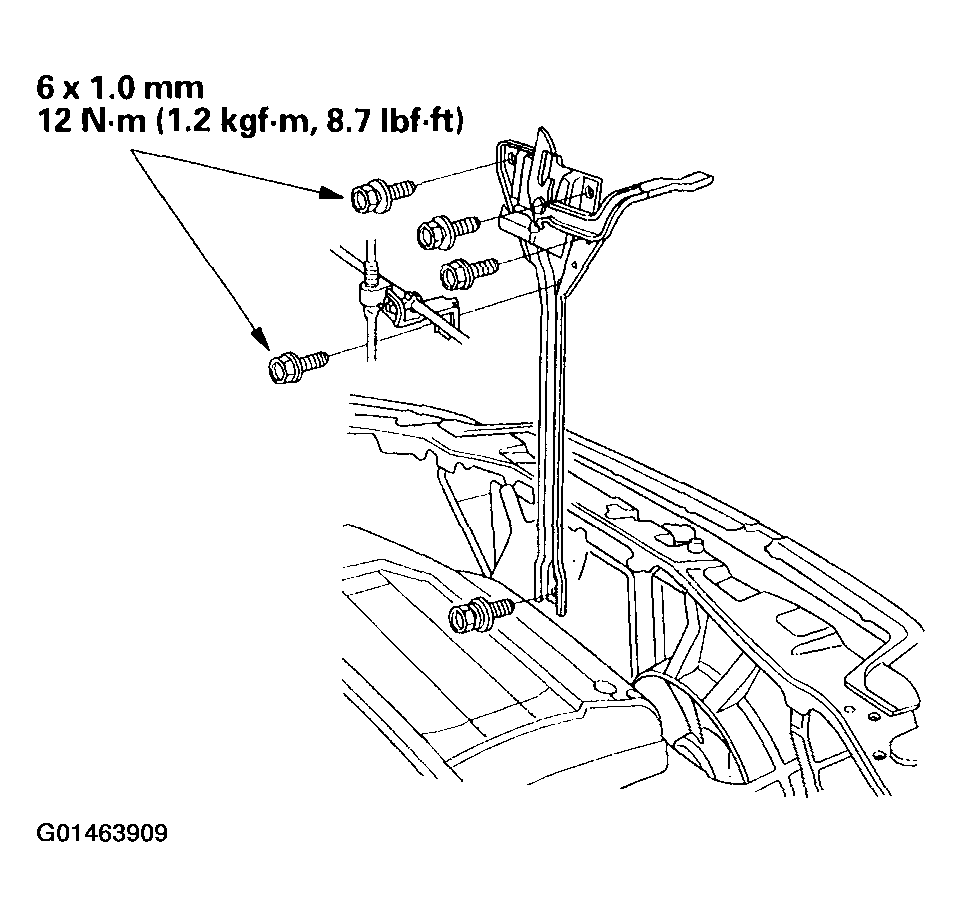

  13. Remove the bulkhead bracket.
    Fig 6: Removing The Bulkhead Bracket
    G01463909Courtesy of AMERICAN HONDA MOTOR CO., INC.

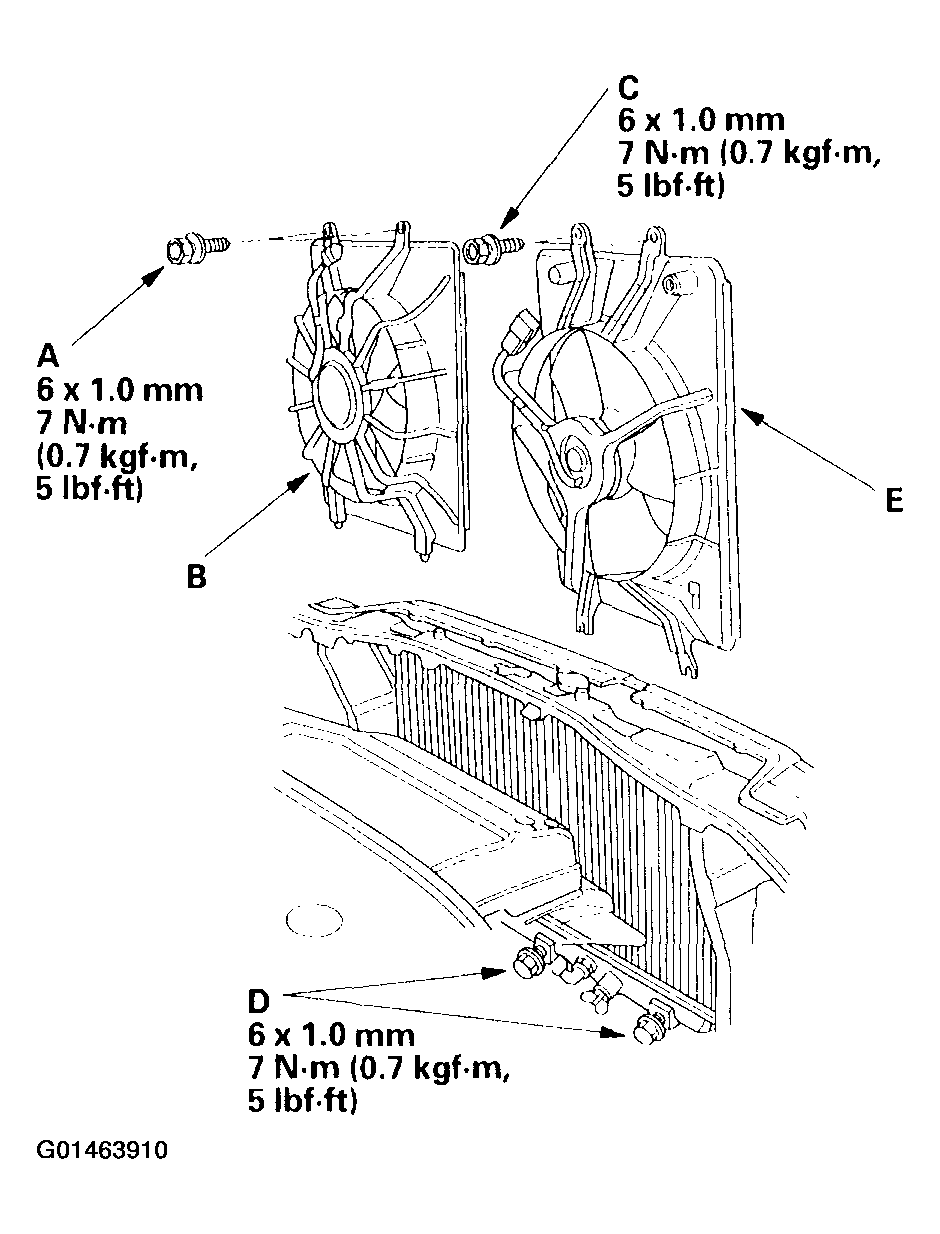

  14. Remove the two bolts (A) securing the radiator fan shroud, then remove the radiator fan shroud assembly (B) from the battery side.
    Fig 7: Removing The Radiator Fan Shroud Assembly
    G01463910Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Remove the two bolts (C), and loosen the two bolts (D) securing the condenser fan shroud, then remove the condenser fan shroud assembly (E) from the battery side.

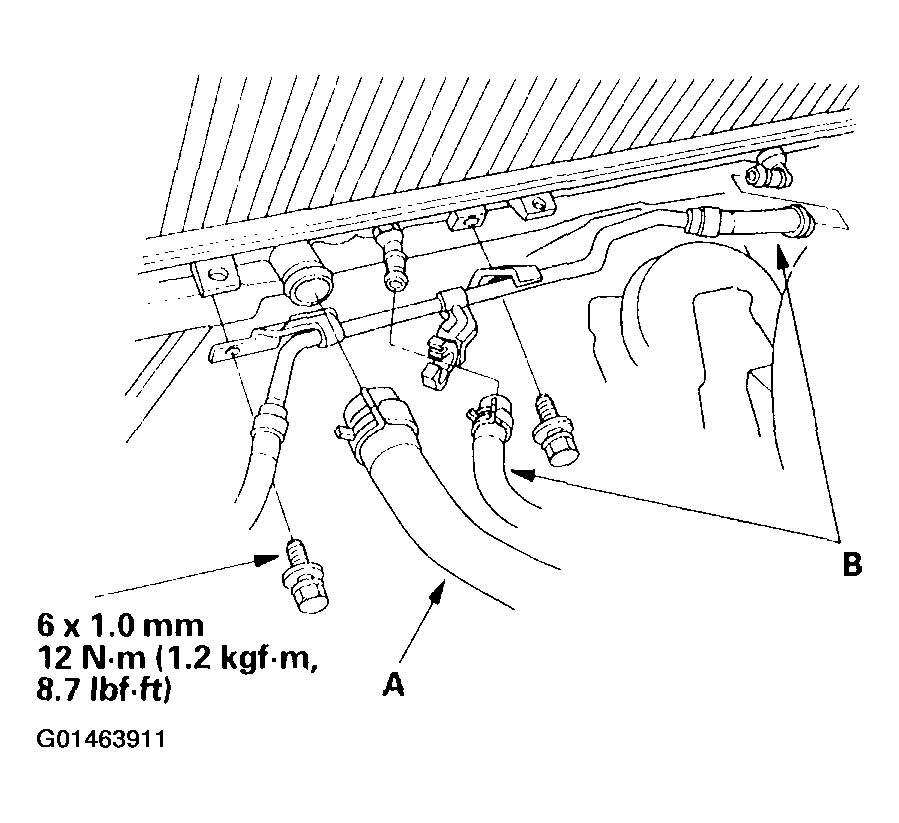

  16. Remove the lower radiator hose (A) and automatic transmission fluid (ATF) cooler hoses (B). Plug the ATF cooler hoses and lines.
    Fig 8: Removing The Lower Radiator Hose & Automatic Transmission Fluid Cooler Hoses
    G01463911Courtesy of AMERICAN HONDA MOTOR CO., INC.

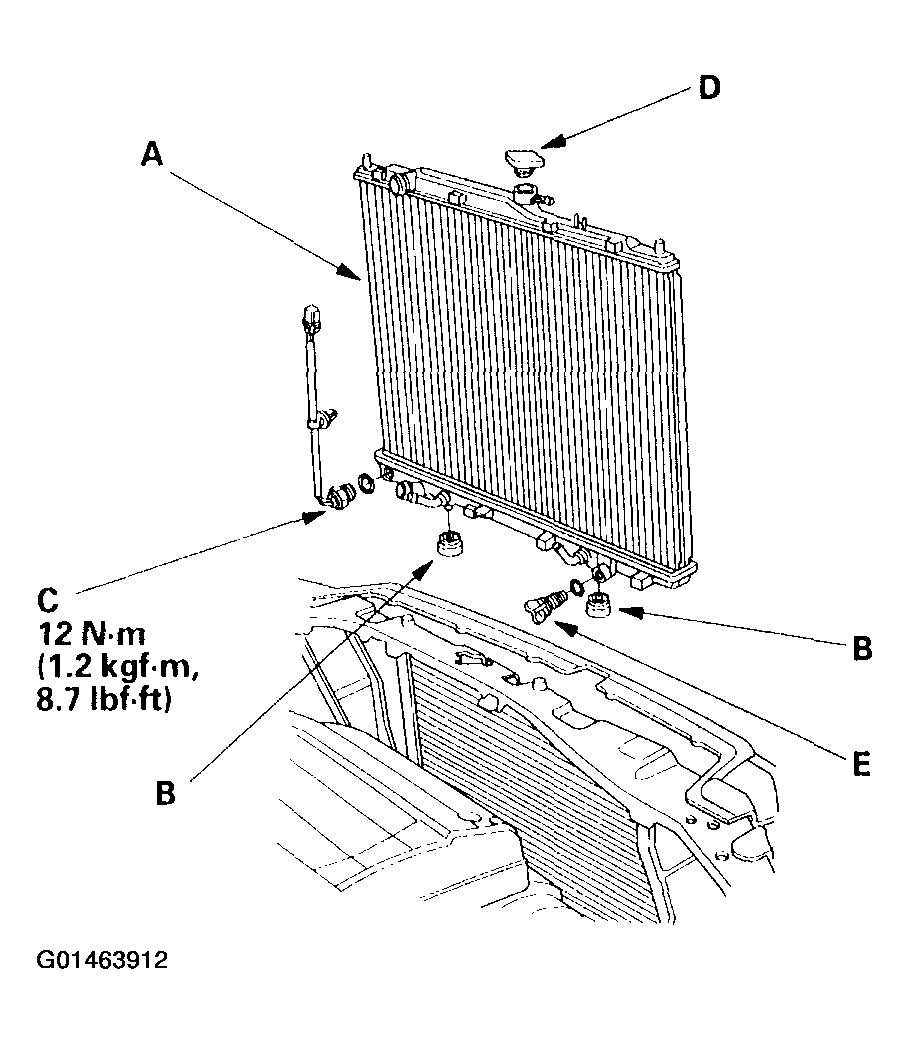

  17. Pull up the radiator assembly (A), then remove the lower cushions (B).
    Fig 9: Removing The Lower Cushions
    G01463912Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Remove the radiator fan switch C (C), radiator cap (D) and drain plug (E).
  19. Install the radiator in the reverse order of removal.
  20. Install the bulkhead bracket in the reverse order of removal. Apply body paint to the bulkhead bracket mounting bolts.
  21. Set the upper and lower cushions securely.
  22. Fill the radiator with engine coolant, and bleed the air (see step 8 on Coolant Replacement  ).
  23. Adjust the engine hood latch (see ADJUSTMENT ).
  24. Install the battery. Clean the battery posts and cable terminals with sandpaper, then assemble them and apply grease to prevent corrosion.
  25. Perform the powertrain control module (PCM) idle learn procedure (see PCM IDLE LEARN PROCEDURE ), power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ), and reset the clock.
  26. Enter the anti-theft codes for the radio and the navigation system, then enter the customer's radio station presets.
