Component Location Index

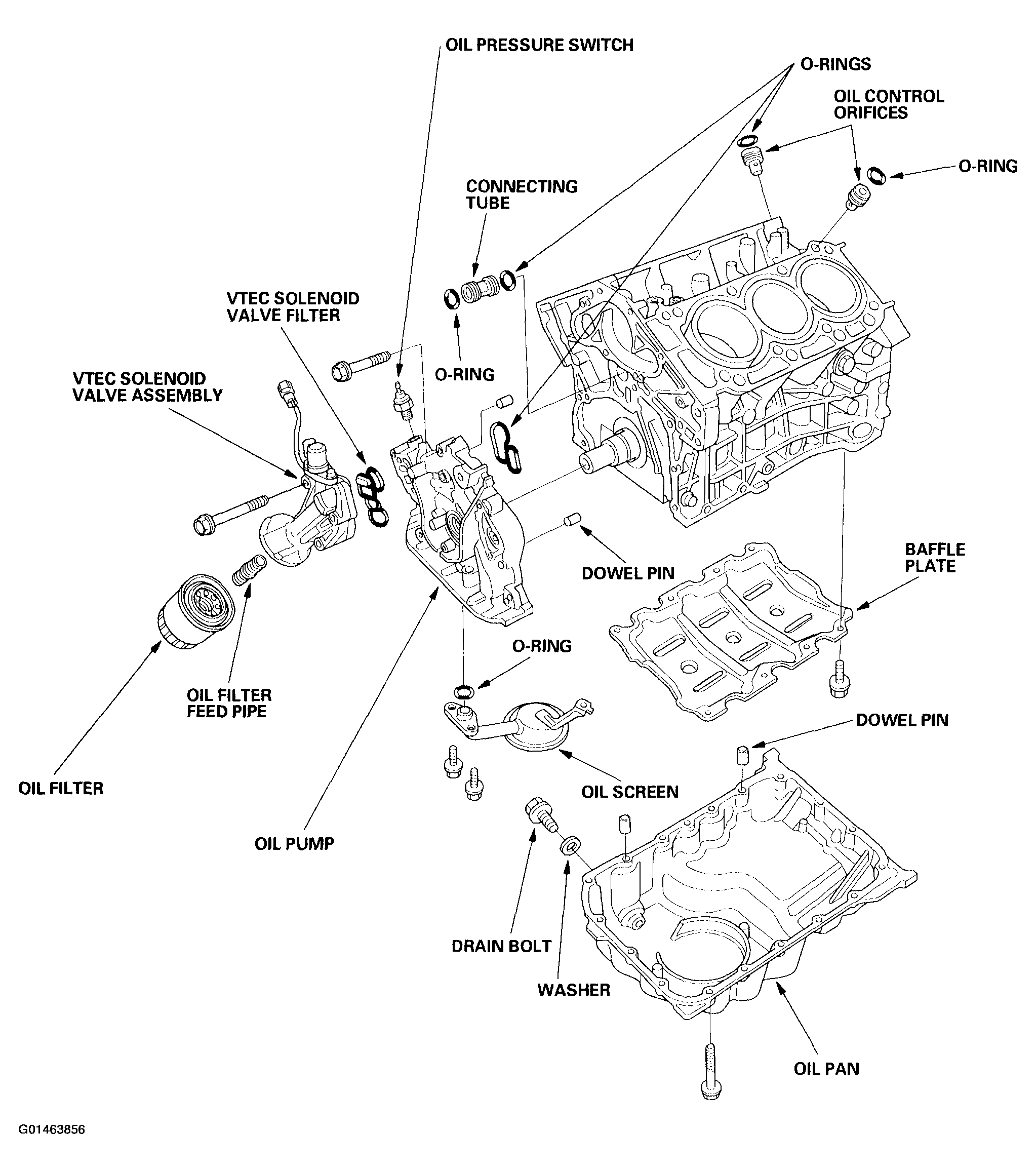

Fig 1: Locating Engine Lubrication Components
G01463856Courtesy of AMERICAN HONDA MOTOR CO., INC.
