Oil Pump Overhaul
›
Exploded View
›
Notes
Exploded View: Notes

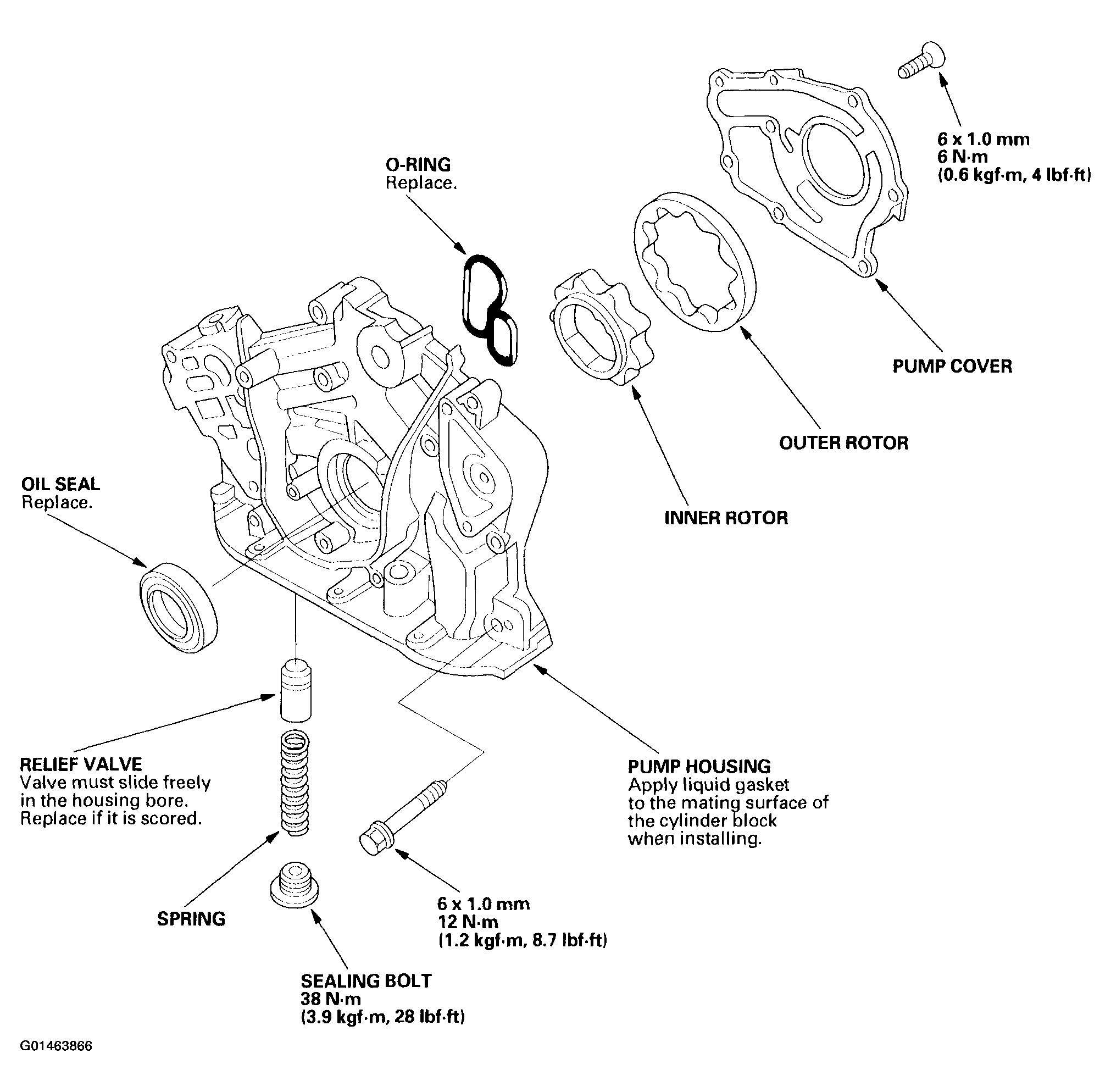

Fig 1: Exploded View Of Oil Pump
Courtesy of AMERICAN HONDA MOTOR CO., INC.
