PCM Inputs & Outputs At Connector A (32P)

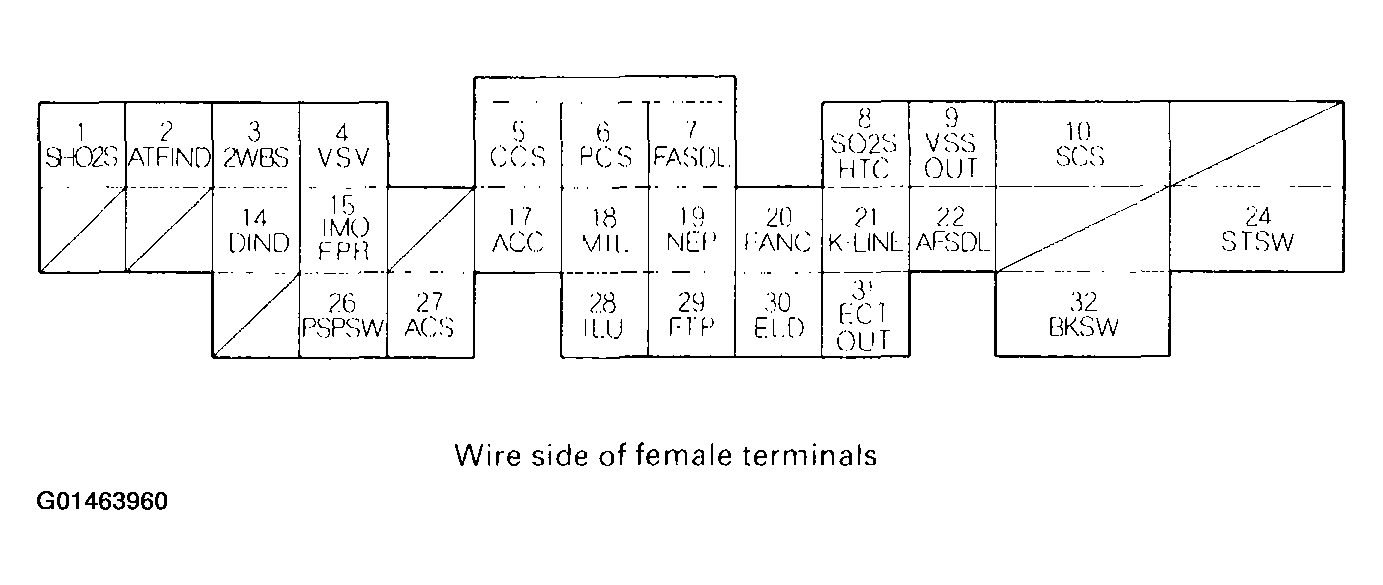

Fig 1: Identifying Connector A (32P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Standard battery voltage is 12 V.

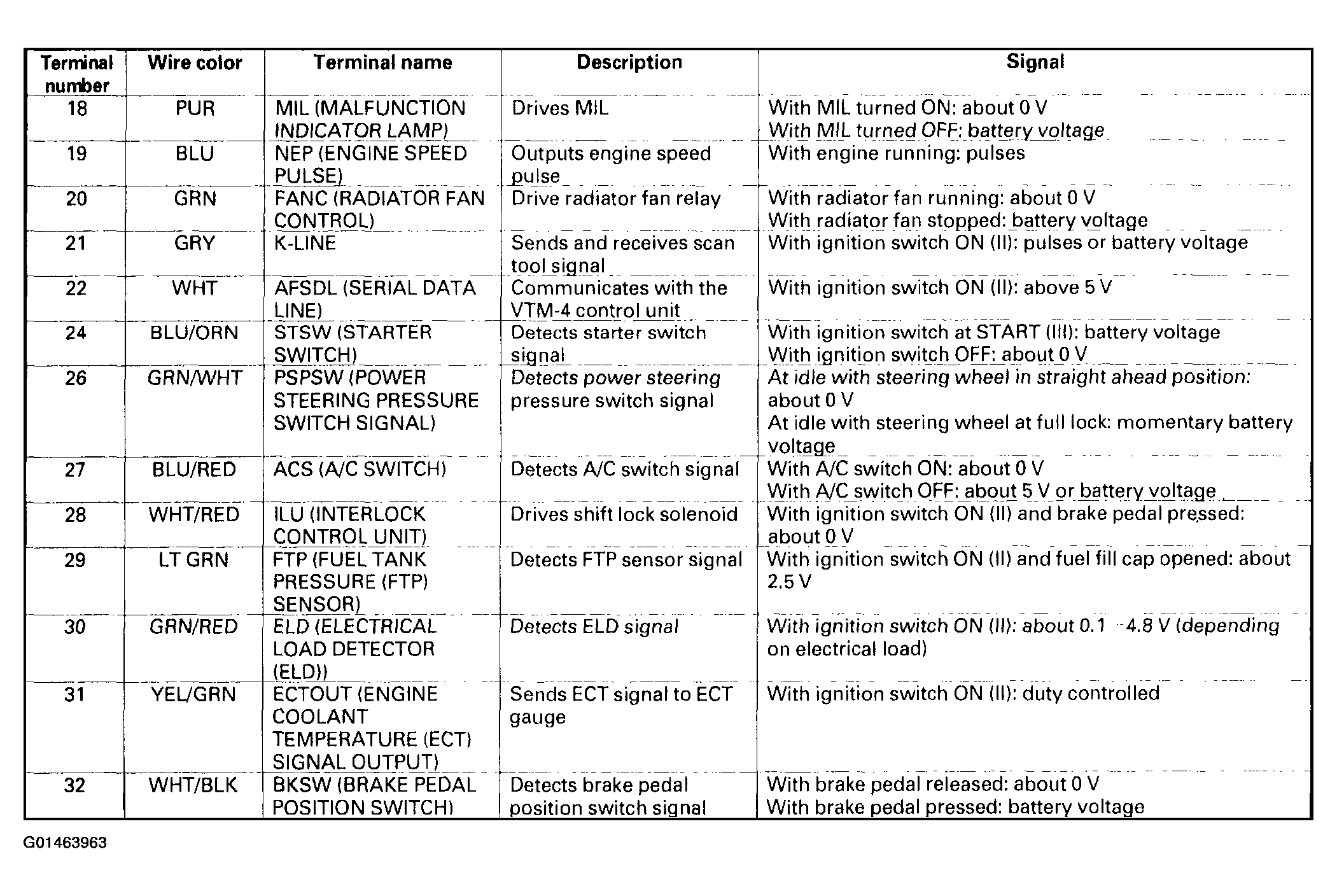

Fig 2: PCM Connector A (32P) Inputs & Outputs Pin Voltage Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

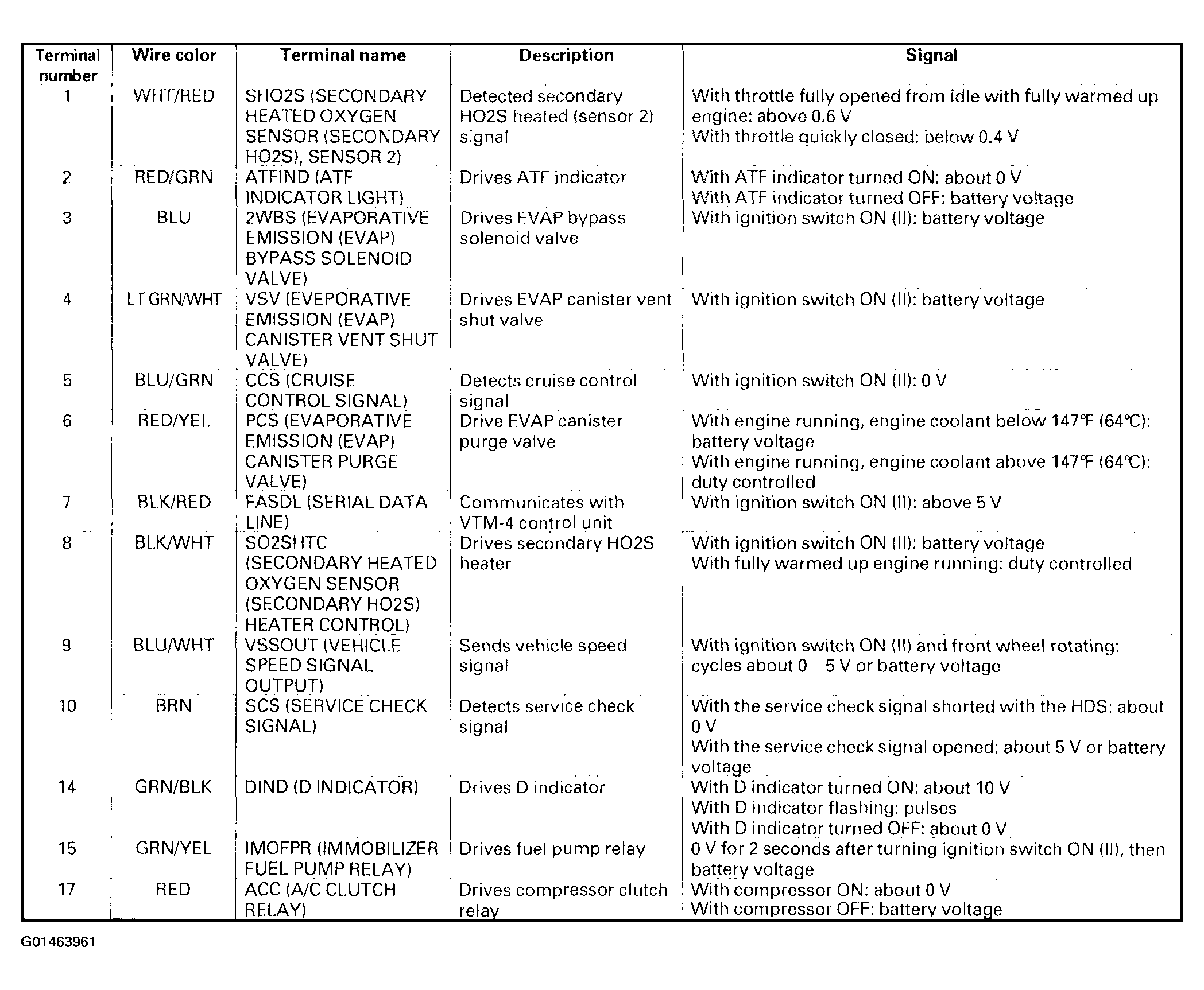

Fig 3: PCM Connector A (32P) Inputs & Outputs Pin Voltage Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
