Component Location Index

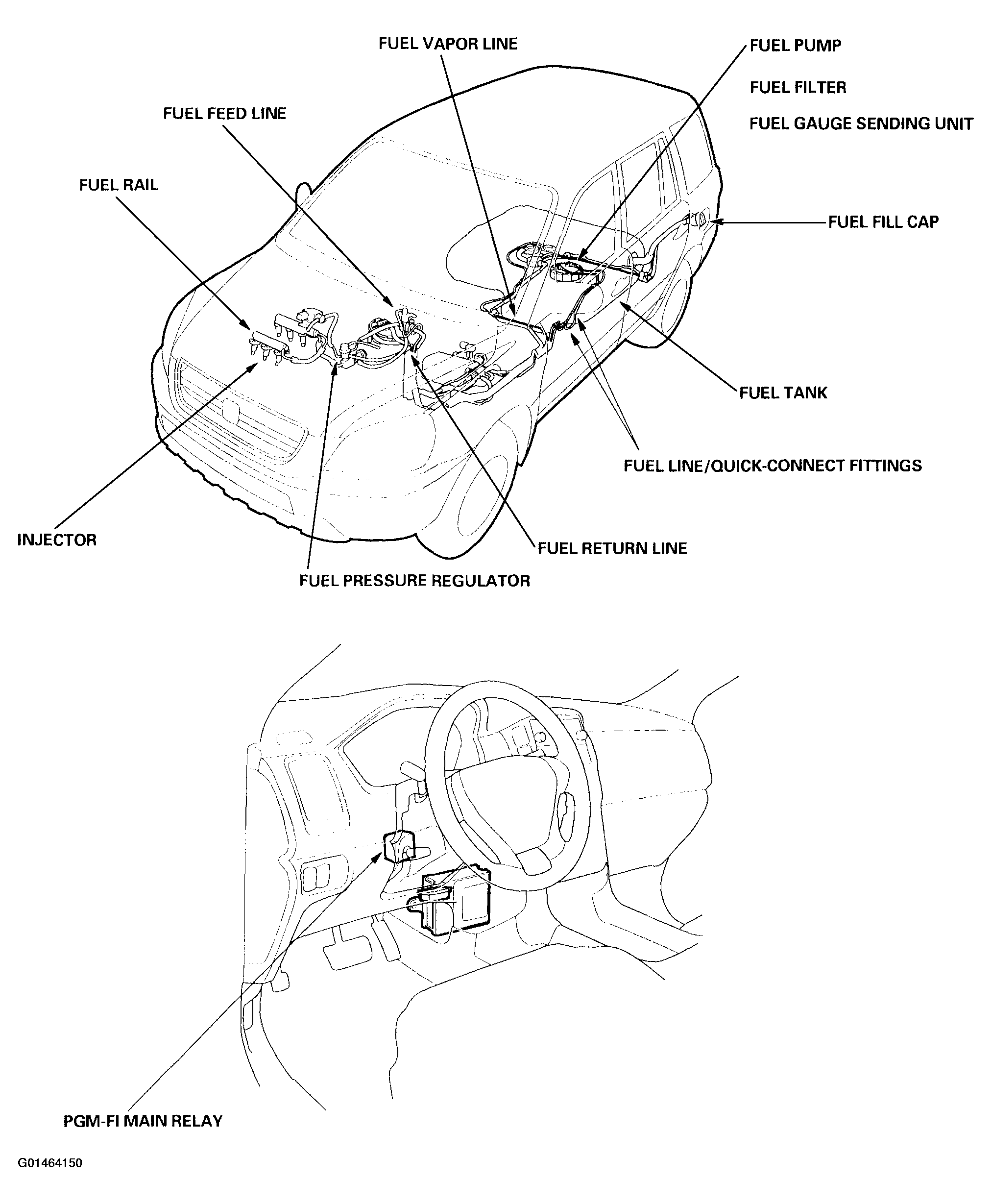

Fig 1: Locating Fuel Supply System Components
G01464150Courtesy of AMERICAN HONDA MOTOR CO., INC.
