Lift & Support Points
Lift & Support Points

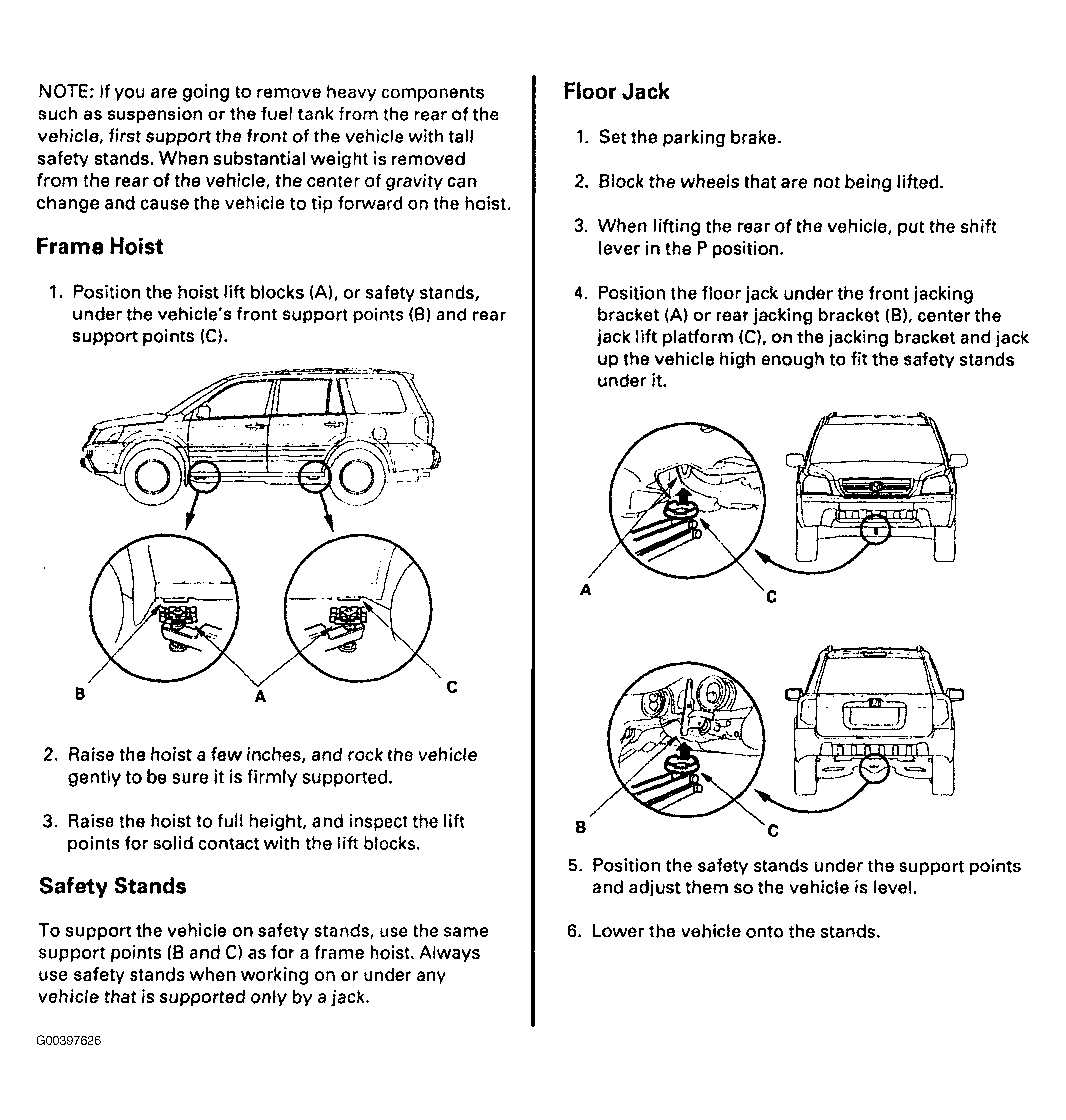

Fig 1: Lift & Support Points
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
