Blower Power Transistor, Front Connector End View
Blower Power Transistor, Front Connector End View

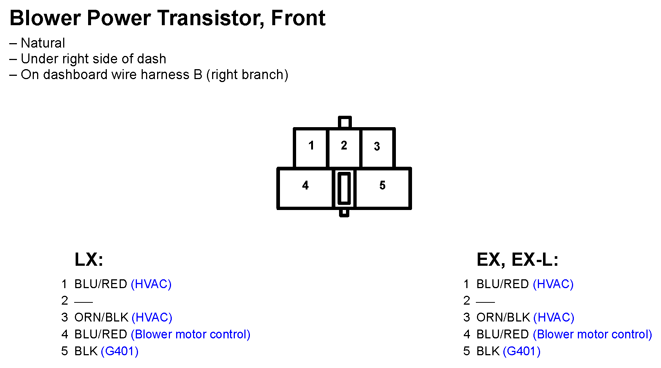

Fig 1: Blower Power Transistor, Front Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
