Brake Light Failure Sensor Connector End View
Brake Light Failure Sensor Connector End View

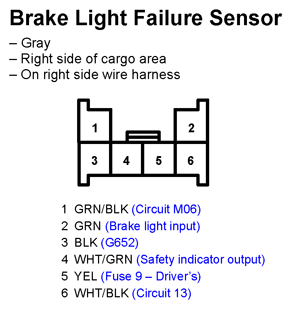

Fig 1: Brake Light Failure Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
