Cigarette Lighter Connector End View
Cigarette Lighter Connector End View

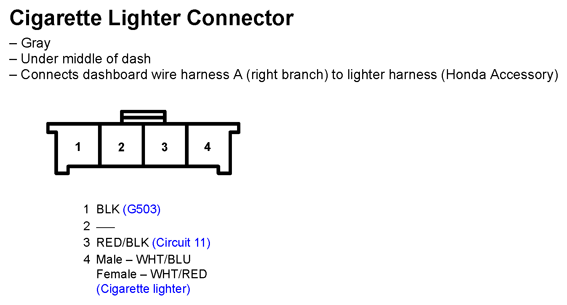

Fig 1: Cigarette Lighter Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
