Headlight, Right Connector End View
Headlight, Right Connector End View

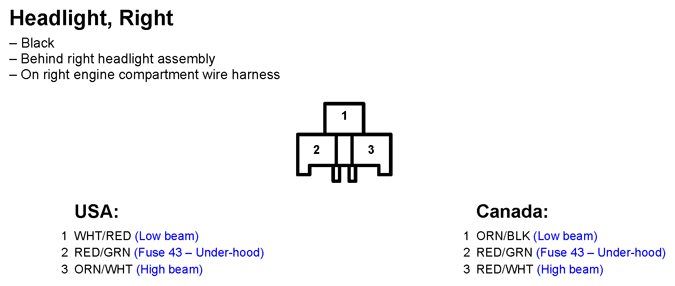

Fig 1: Headlight, Right Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
