Power Window Switch, Left Rear Connector End View
Power Window Switch, Left Rear Connector End View

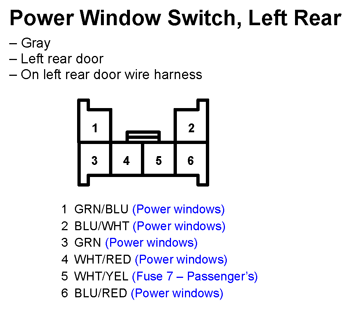

Fig 1: Power Window Switch, Left Rear Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
