Drive Plate Removal & Installation

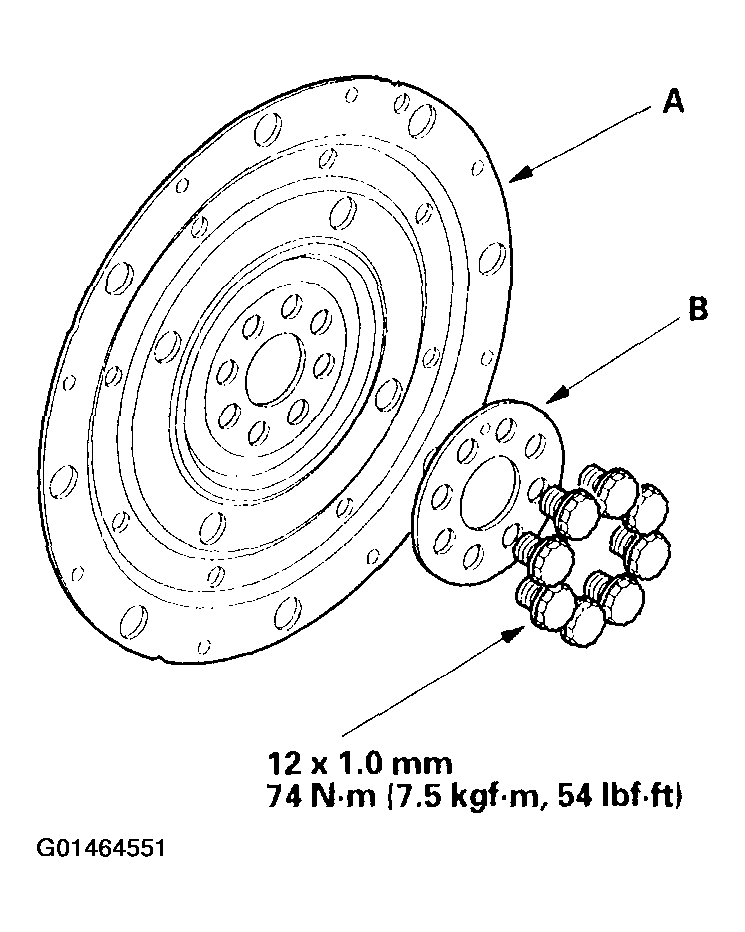

- Remove the drive plate (A) and washer (B) from the engine crankshaft.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the drive plate and washer on the engine crankshaft, and tighten the eight bolts in a crisscross pattern.
