Display Unit Removal/Installation

Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).
Remove the display unit (A).

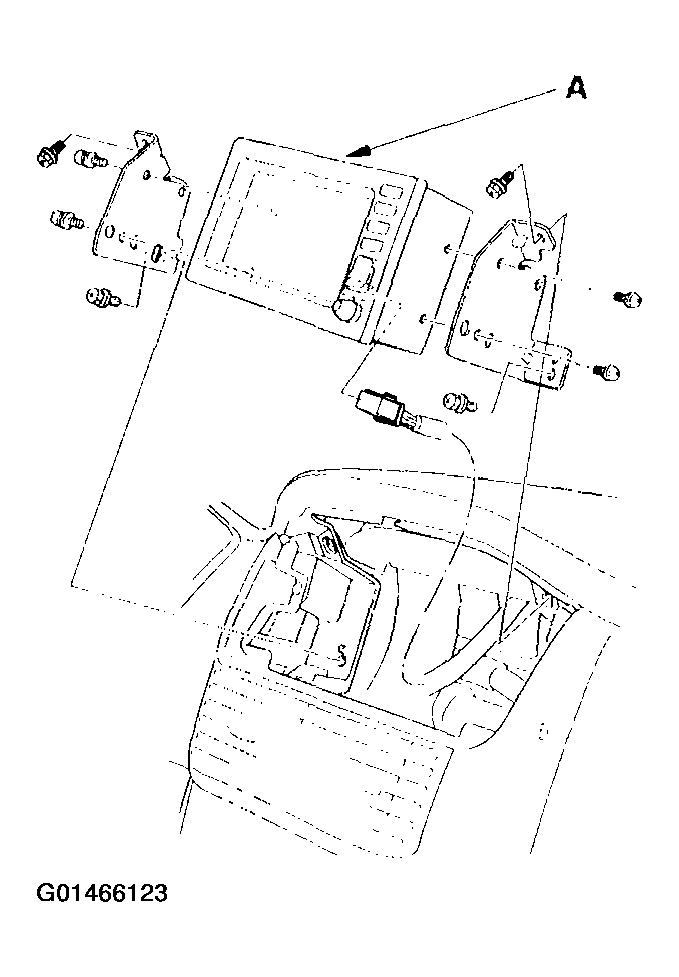

Fig 1: Removing The Display Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
