2003
›
Pilot LX
›
Repair and Diagnosis
›
Electrical
›
Horns
›
Circuit Diagram
Circuit Diagram

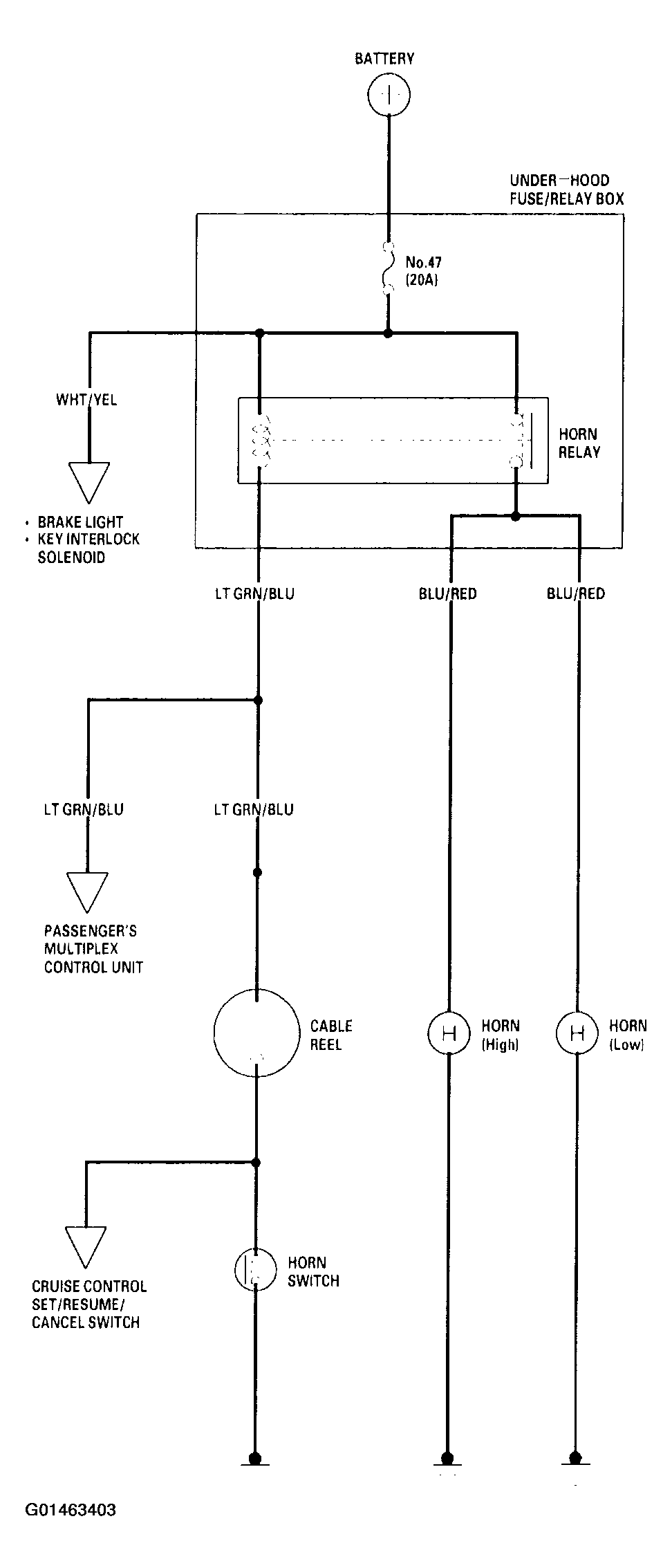

Fig 1: Horn System Circuit Diagram
