Climate Control Unit (EX, EX-L) Connector End View
Climate Control Unit (EX, EX-L) Connector End View

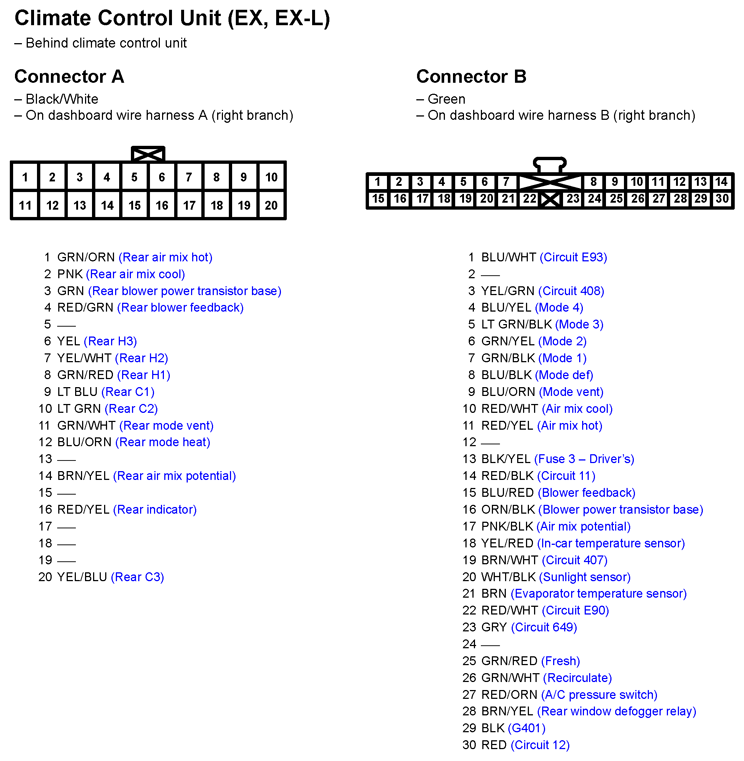

Fig 1: Climate Control Unit (EX, EX-L) Connector End View
