Circuit Diagram
Circuit Diagram

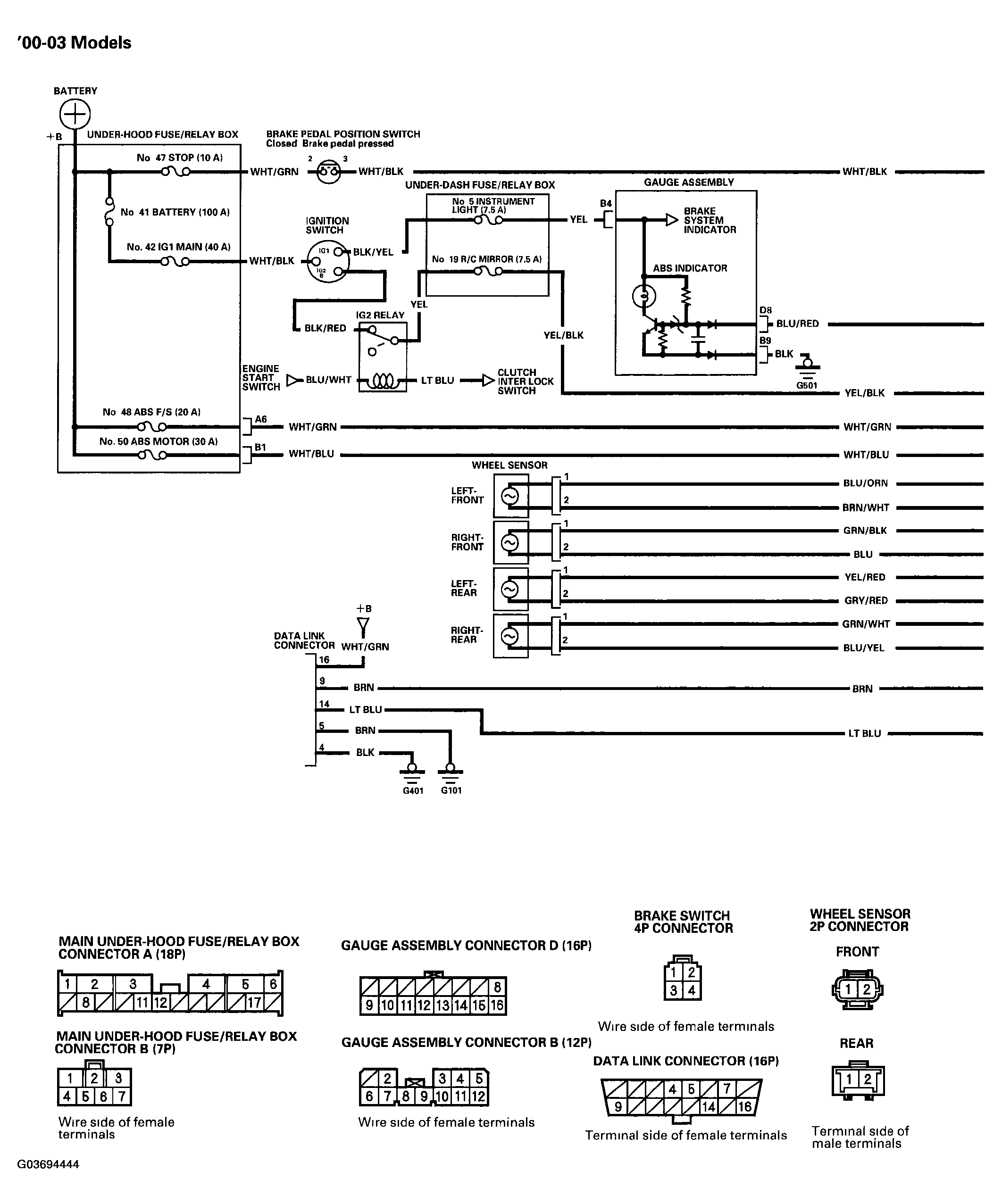

Fig 1: ABS Circuit Diagram (00-03 Models) (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

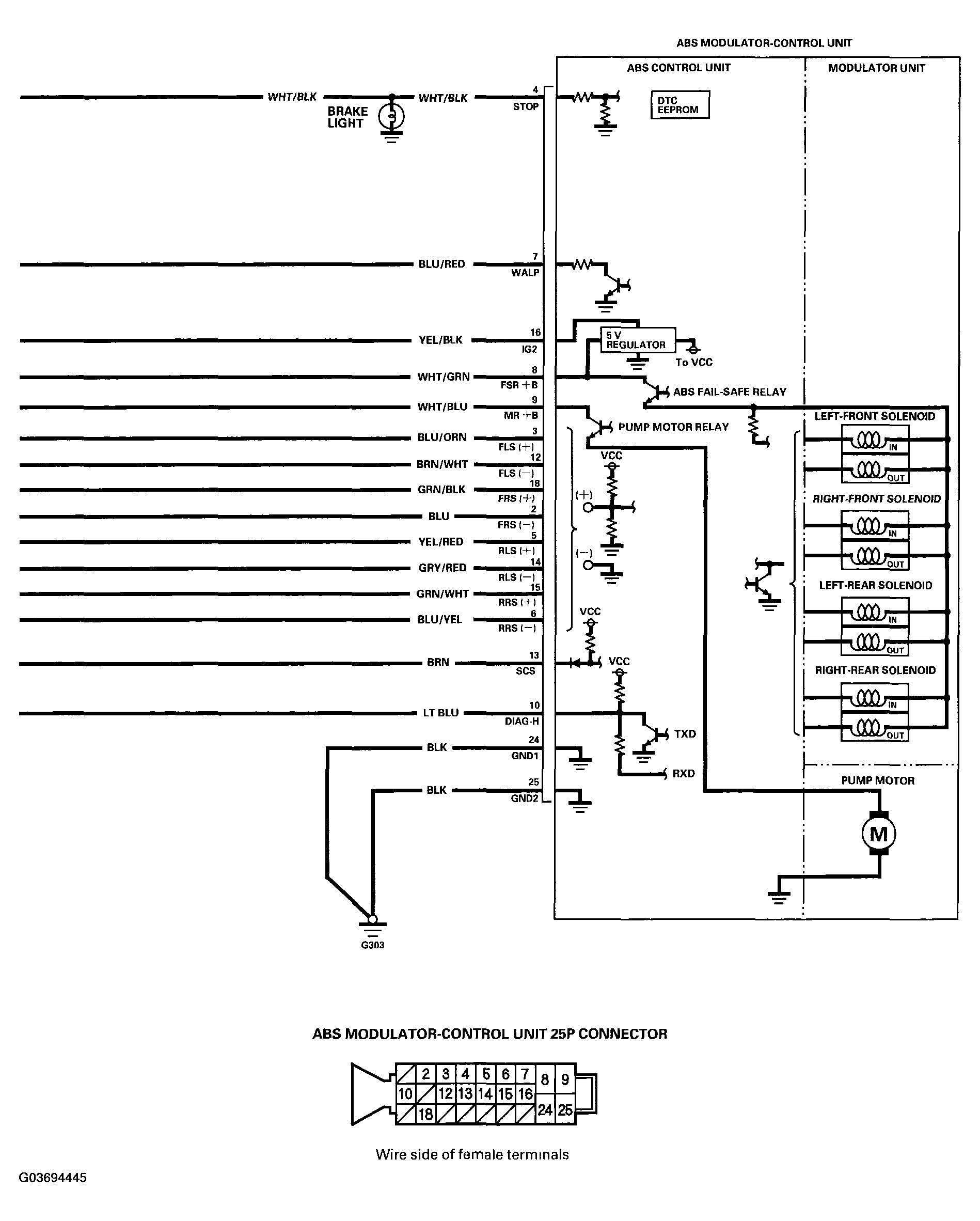

Fig 2: ABS Circuit Diagram (00-03 Models) (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

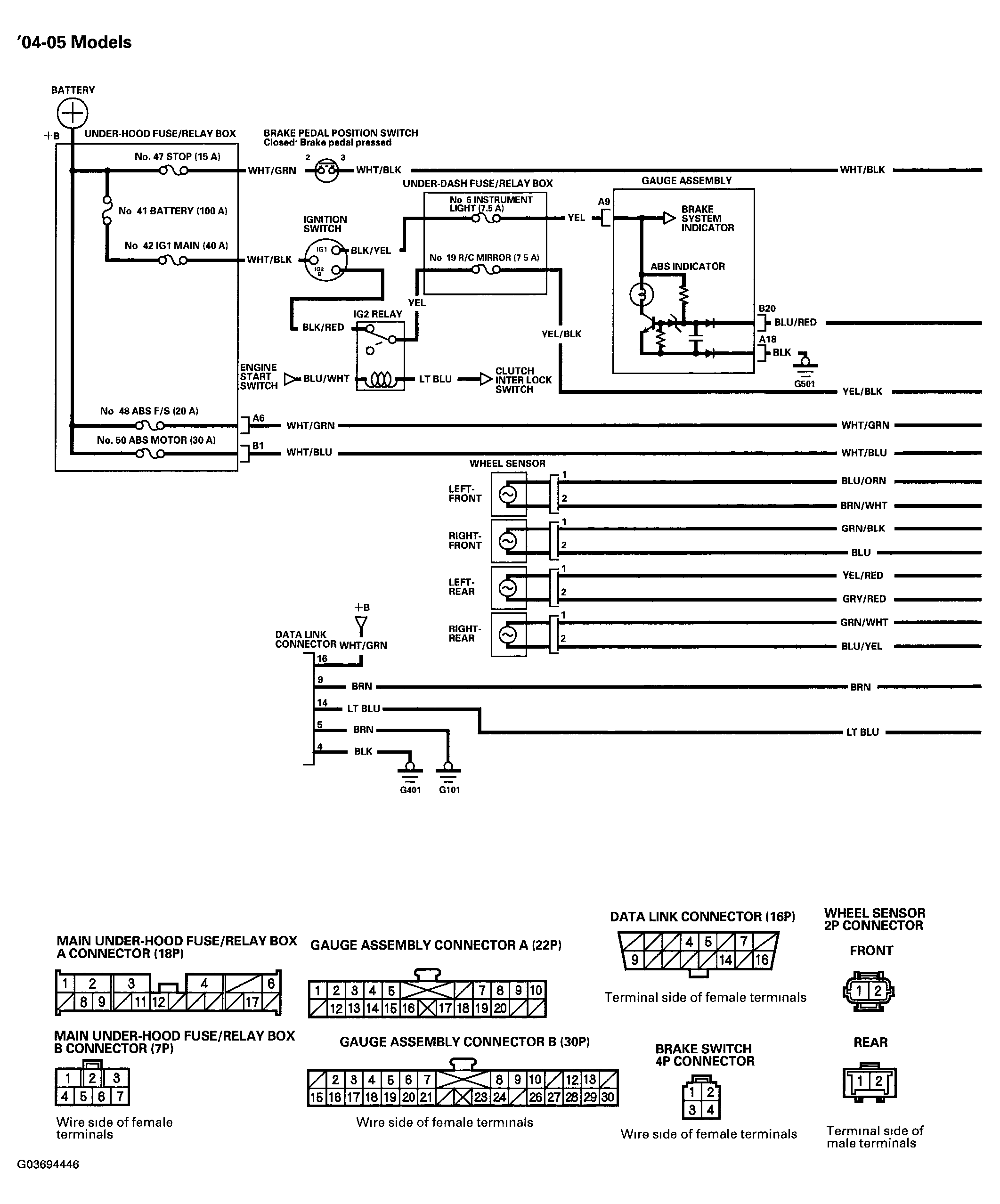

Fig 3: ABS Circuit Diagram (04-05 Models) (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: ABS Circuit Diagram (04-05 Models) (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
