Air Pump/Air Pump Relay Removal/Installation

  1. Remove the front bumper, 2000-2003 models (see FRONT BUMPER REMOVAL/INSTALLATION ), 2004-2005 models (see '04-06 MODELS ).
  2. Remove the air pump (A), and the air pump relay (B).

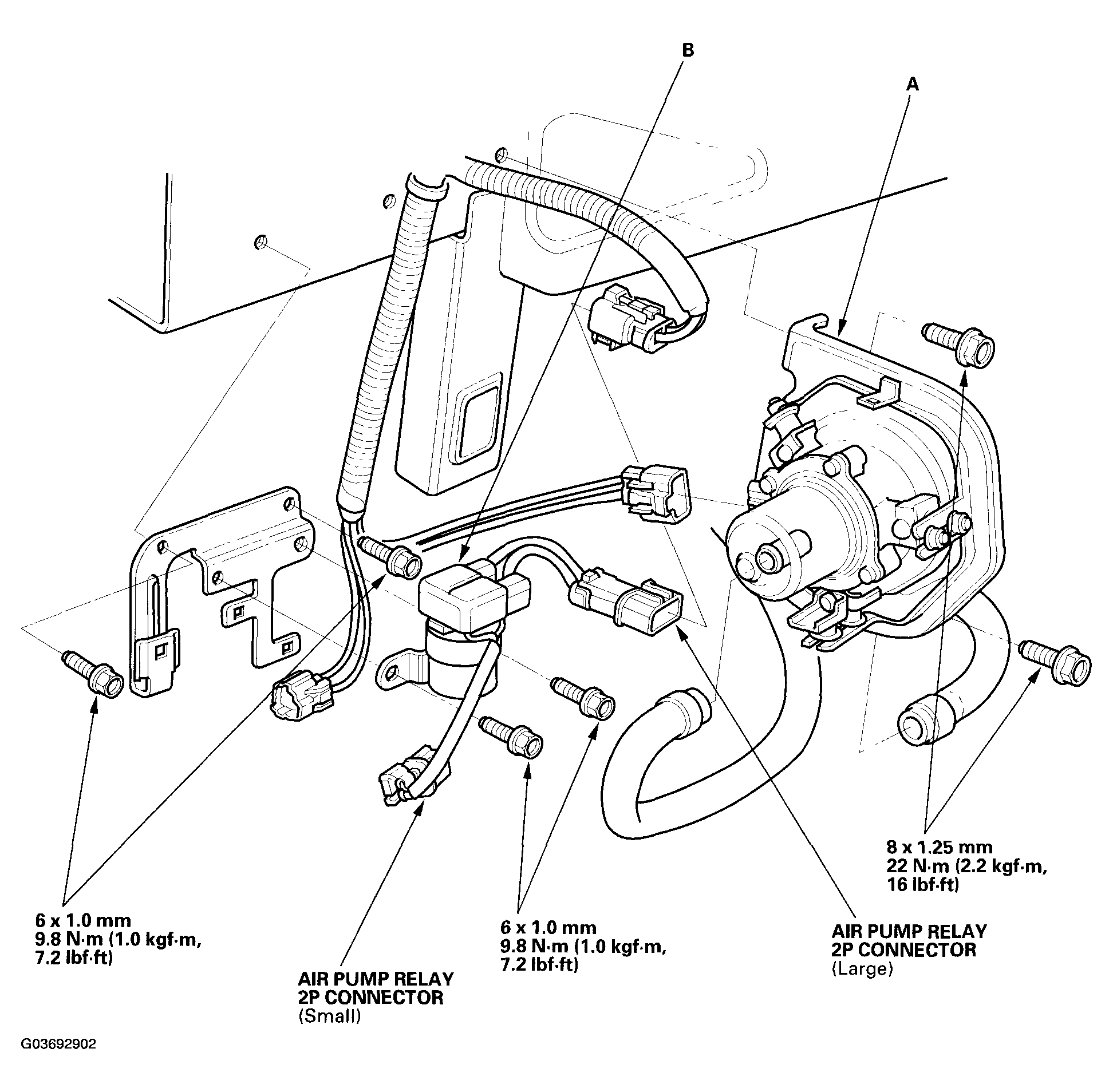

    Fig 1: Removing Air Pump, And Air Pump Relay With Torque Specifications
    G03692902Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal.
