Manual Transmission Overhaul
›
Countershaft Reassembly
›
Exploded View
›
2000-2003 models:
2000-2003 models:

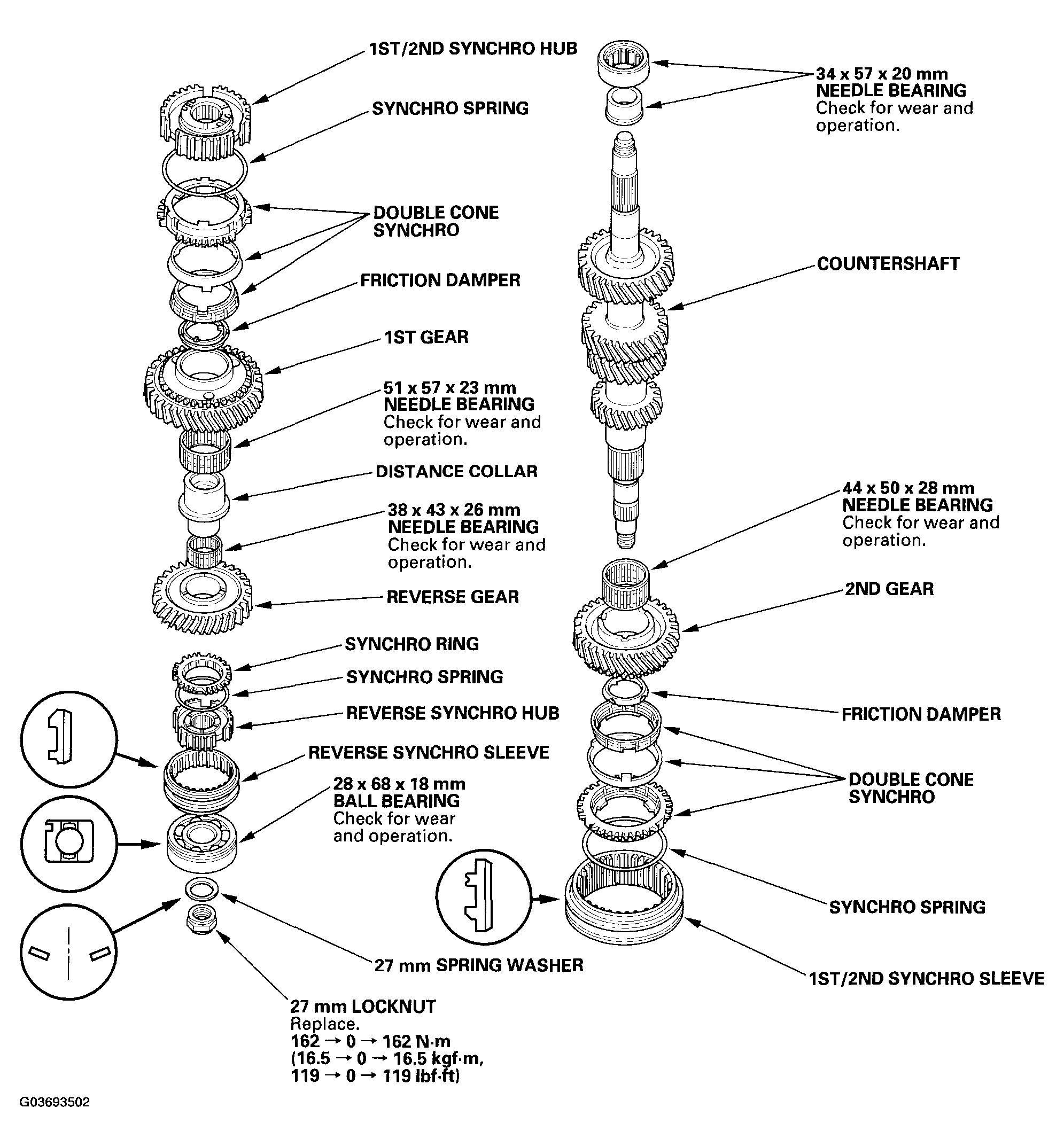

Fig 1: Exploded View Of Countershaft (2000-2003 Models) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
