Manual Transmission Overhaul
›
Mainshaft Reassembly
›
Exploded View
›
2000-2003 models:
2000-2003 models:

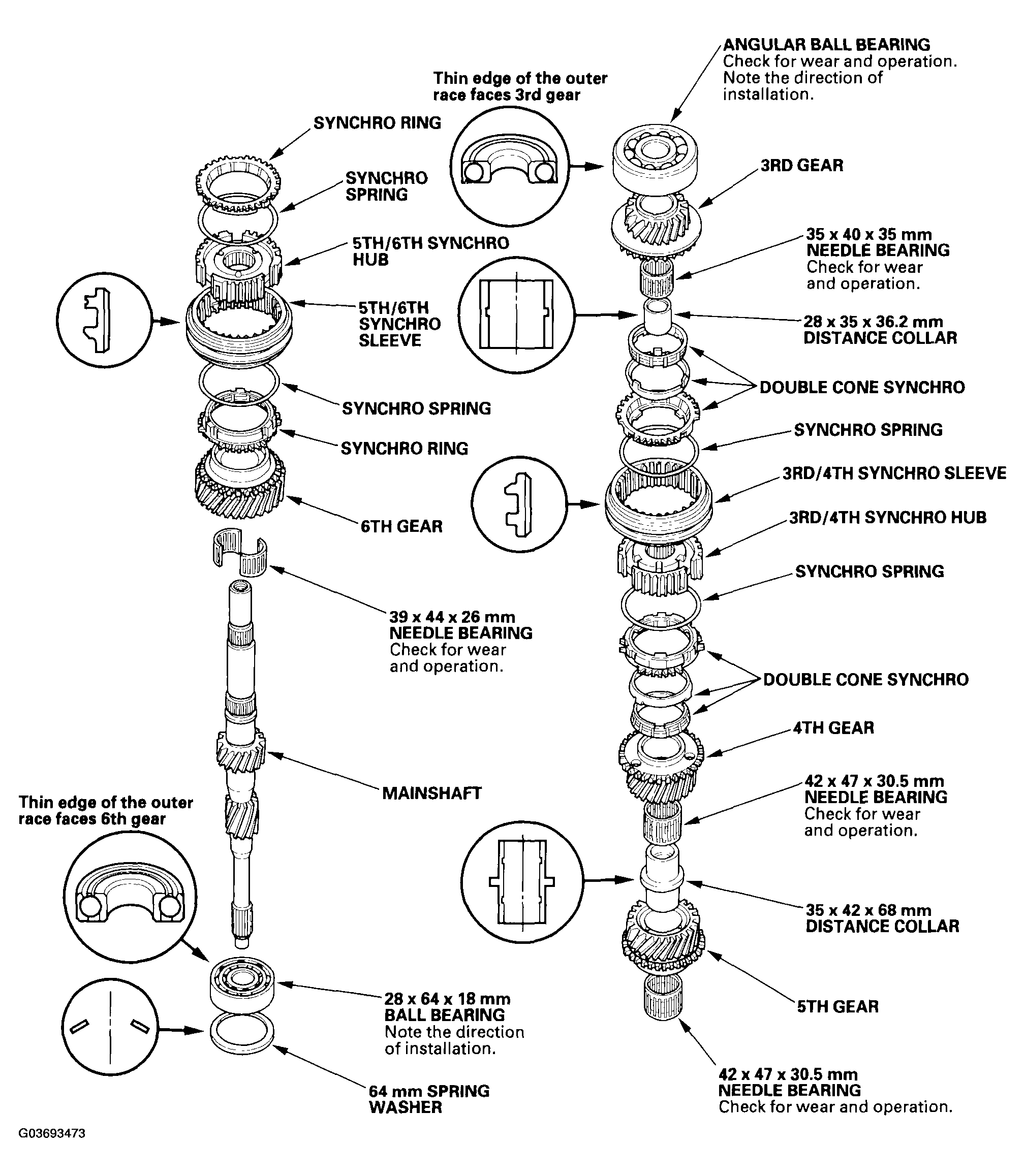

Fig 1: Exploded View Of Mainshaft (2000-2003 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
